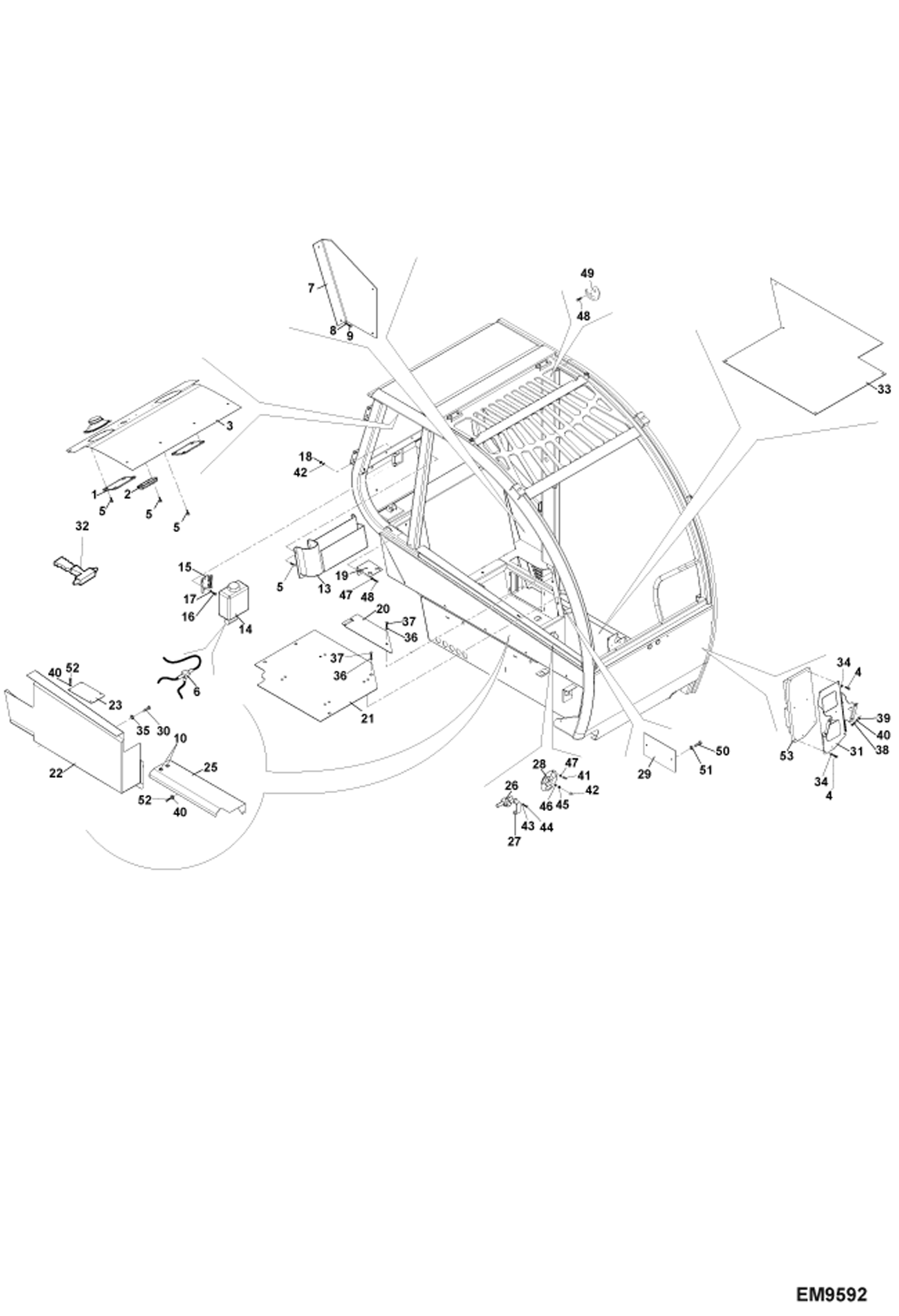

Запчасти Bobcat TR38160 OPERATOR CAB (Interior) MAIN FRAME

1

7013779

HOUSING

2

7013768

LIGHT, CEILING

3

7013796

COVER

4

7013880

SCREW

5

7013914

SCREW

6

7013763

FITTING

7

7013784

COVER

8

WASHER in coding phase

9

SCREW in coding phase

10

7013797

GROMMET

13

7013809

LINING

14

7013764

CONTAINER

15

7013767

HINGE

16

7013881

SCREW

17

7021456

WASHER

18

7013895

NUT

19

7013840

PLATE

20

7026990

SHEET

21

7026989

SHEET

22

7026708

COVER

23

7013935

PLATE

25

7013933

PLATE

26

7019487

LEVER Was 7013936 - B,D

27

7013832

GUARD

28

7013830

ADAPTER

29

7026991

SHEET

30

7013862

SCREW

31

7013841

SUPPORT

32

7014524

HAMMER

33

7013785

PLATE, FOOTSTEP

34

7013896

WASHER

35

7018162

WASHER

36

7013905

WASHER

37

7013865

SCREW

38

7013874

SCREW

39

7020209

WASHER, LOCK

40

7018133

WASHER

41

7013818

SCREW

42

7013803

NUT, COVER

43

WASHER in coding phase

44

SCREW in coding phase

45

7013924

NUT

46

7013913

WASHER

47

7013908

WASHER

48

7013915

SCREW

49

7013808

HOOK

50

7019747

WASHER

51

7013883

WASHER

52

7013860

SCREW

53

7026736

MASTER, ELECTRICAL
