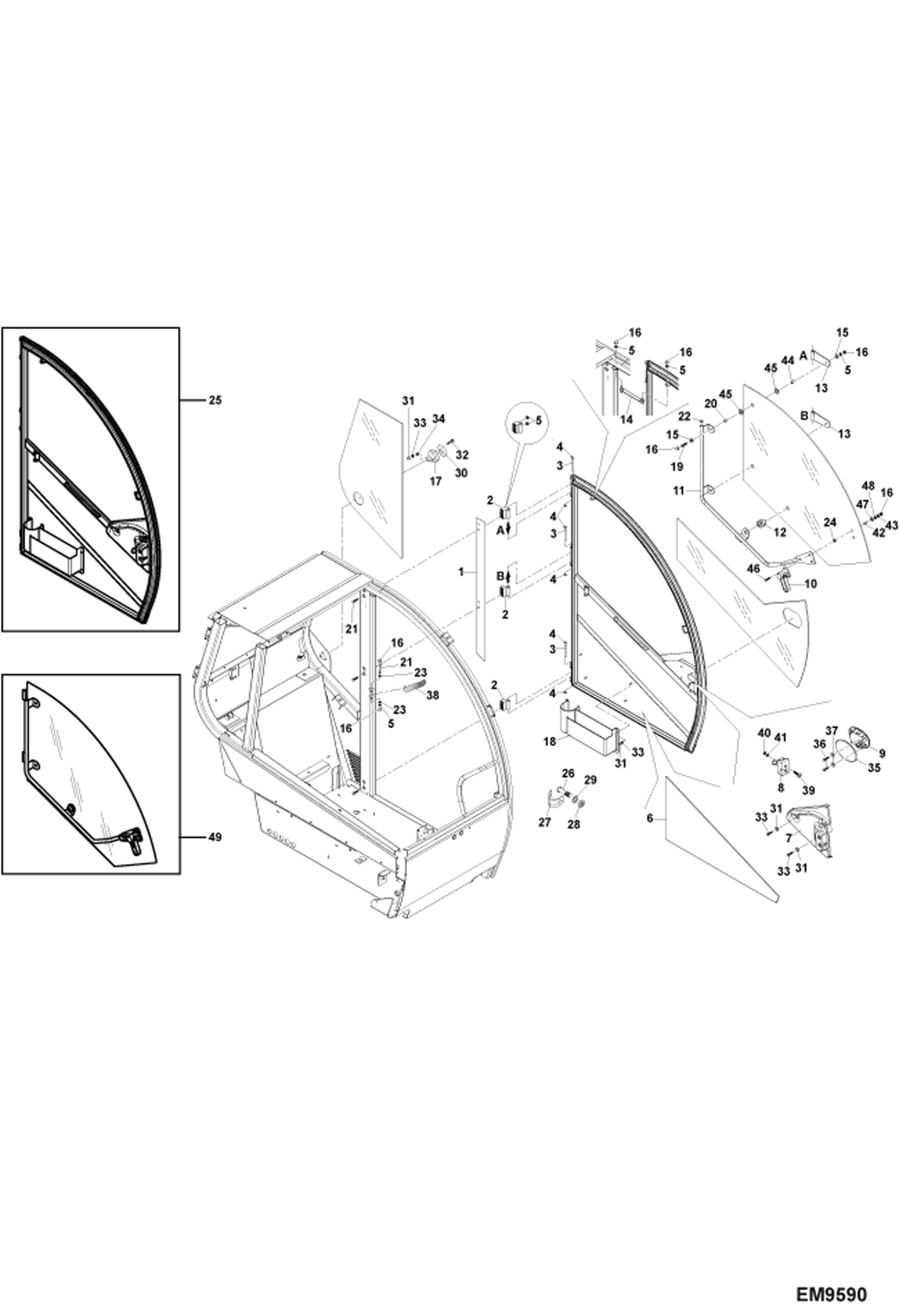

Запчасти Bobcat TR38160 OPERATOR CAB (Door) MAIN FRAME

1

7013926

HOUSING

2

7013752

HINGE

3

7013831

SCREW

4

7013917

WASHER

5

NUT, SELF LOCKING NLA Was 7014561 - A

6

7013786

LINING

7

7013795

LINING

8

7013744

LOCK

9

7013739

GASKET

10

7013740

HANDLE

11

7013834

HANDLE

12

7013750

SPACER

13

7013835

HINGE

14

7013753

SPRING, GAS

15

7018162

WASHER

16

7014909

NUT, COVER

17

7013748

STOP, DOOR

18

7013809

LINING

19

7014537

SCREW

20

7013811

SPACER

21

7021428

SCREW

22

7013806

PLUG

23

7019725

SCREW

24

7013824

WASHER

25

7026724

DOOR

26

7013745

SCREW, BLOCKING

27

7013746

GUARD

28

7013747

NUT

29

7013901

WASHER

30

7013749

GASKET

31

7013803

NUT, COVER

32

7018045

SCREW

33

7018059

NUT

34

7019747

WASHER

35

7020666

GASKET

36

7014554

SCREW

37

7020209

WASHER, LOCK

38

7013807

CLAMP

39

7021447

SCREW

40

7019728

NUT

41

7013907

WASHER

42

7013820

SPACER

43

7018195

NUT

44

7013823

SPACER

45

7013821

WASHER

46

7026970

SCREW

47

7020668

WASHER

48

7021456

WASHER

49

7026778

GLASS
