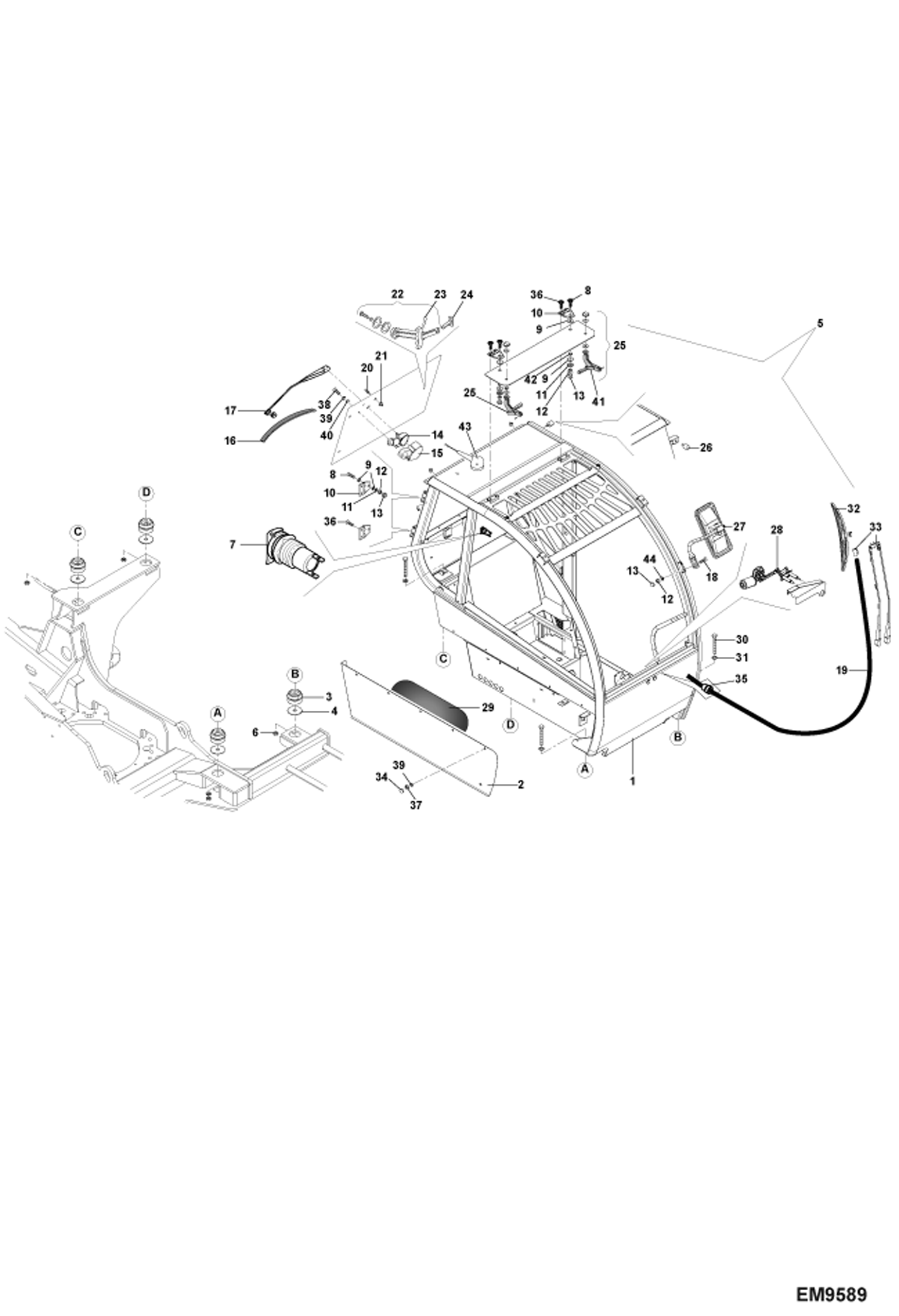

Запчасти Bobcat TR38160 OPERATOR CAB (Exterior) MAIN FRAME

1

7026660

CAB

2

7026799

HOUSING

3

7014914

BLOCK, SILENT

4

7020176

WASHER

5

7026661

CAB

6

7014560

SCREW

7

7014637

OUTLET 12V

8

7018198

SCREW

9

7020208

WASHER, RUBBER

10

7013751

HINGE

11

7018162

WASHER

12

NUT, SELF LOCKING NLA Was 7014561 - A

13

7014909

NUT, COVER

14

7013757

MOTOR, WINDSCREEN

15

7013787

HOUSING

16

7013761

WIPER

17

7013762

ARM, WIPER

18

7019725

SCREW

19

7013969

TUBE

20

7013766

NOZZLE

21

7013799

NUT, COVER

22

7013741

HANDLE

23

7014989

PIN, BLOCKING

24

7013968

BRACKET, BLOCKING

25

7013742

HANDLE ASSY W/Ref. 41

26

7013800

GUARD

27

7013756

MIRROR, REAR VIEW

28

7013758

MOTOR, WINDSCREEN WIPER

29

7013858

FOAM

30

7014540

SCREW

31

7020206

WASHER

32

7013760

WIPER

33

7013759

ARM, WIPER

34

7013803

NUT, COVER

35

7013765

GROMMET, RUBBER

36

7014556

SCREW

37

7018059

NUT

38

7013886

SCREW

39

7018133

WASHER

40

7013916

WASHER

41

7013743

HANDLE

42

7013798

SPACER

43

7013780

ANTENNA

44

7018061

WASHER
