Запчасти Bobcat TR38160 END BOOM MAIN FRAME

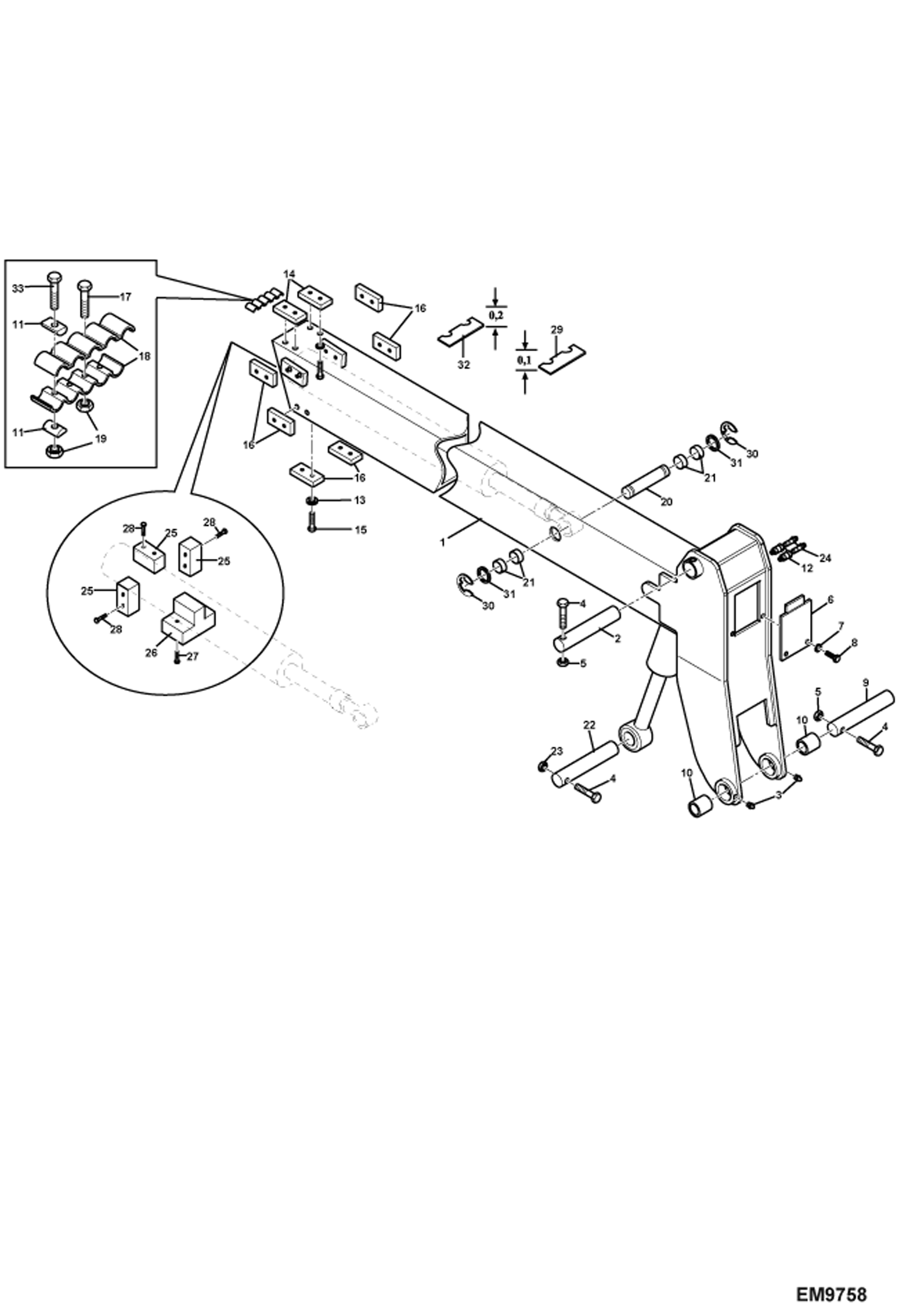

Схема запчастей Bobcat TR38160 - END BOOM MAIN FRAME

Артикул

Название

Примечание

Количество

1

7019765

ARM, INNER

2

7020237

PIN

3

7020125

NIPPLE, GREASE

4

7014538

SCREW

5

7014559

NUT

6

7020154

HOUSING, PROTECTIVE

7

7018133

WASHER

8

7018098

SCREW

9

7020036

PIN

10

7020046

BUSHING

11

7020191

STOP

12

7019833

COUPLER, QUICK

13

7020214

WASHER

14

7020056

PAD, WEAR

15

7019681

STUD, HOLLOW

16

7020055

PAD, WEAR

17

7019673

SCREW

18

7020190

SUPPORT, TERMINAL

19

7014562

NUT

20

7020030

PIN

21

7020042

BUSHING Was 7020043 - B,D

22

7020035

PIN

23

7026841

NUT

24

7018137

COUPLER

25

7020057

PAD, WEAR

26

7020054

PAD,WEAR

27

7019725

SCREW

28

7019669

SCREW

29

7020148

SHIM 0,1 mm

30

7020138

RING, SNAP

31

7020179

SPACER

32

7020149

SHIM 0,2 mm

33

7019675

SCREW

Выбрано товаров: 33
