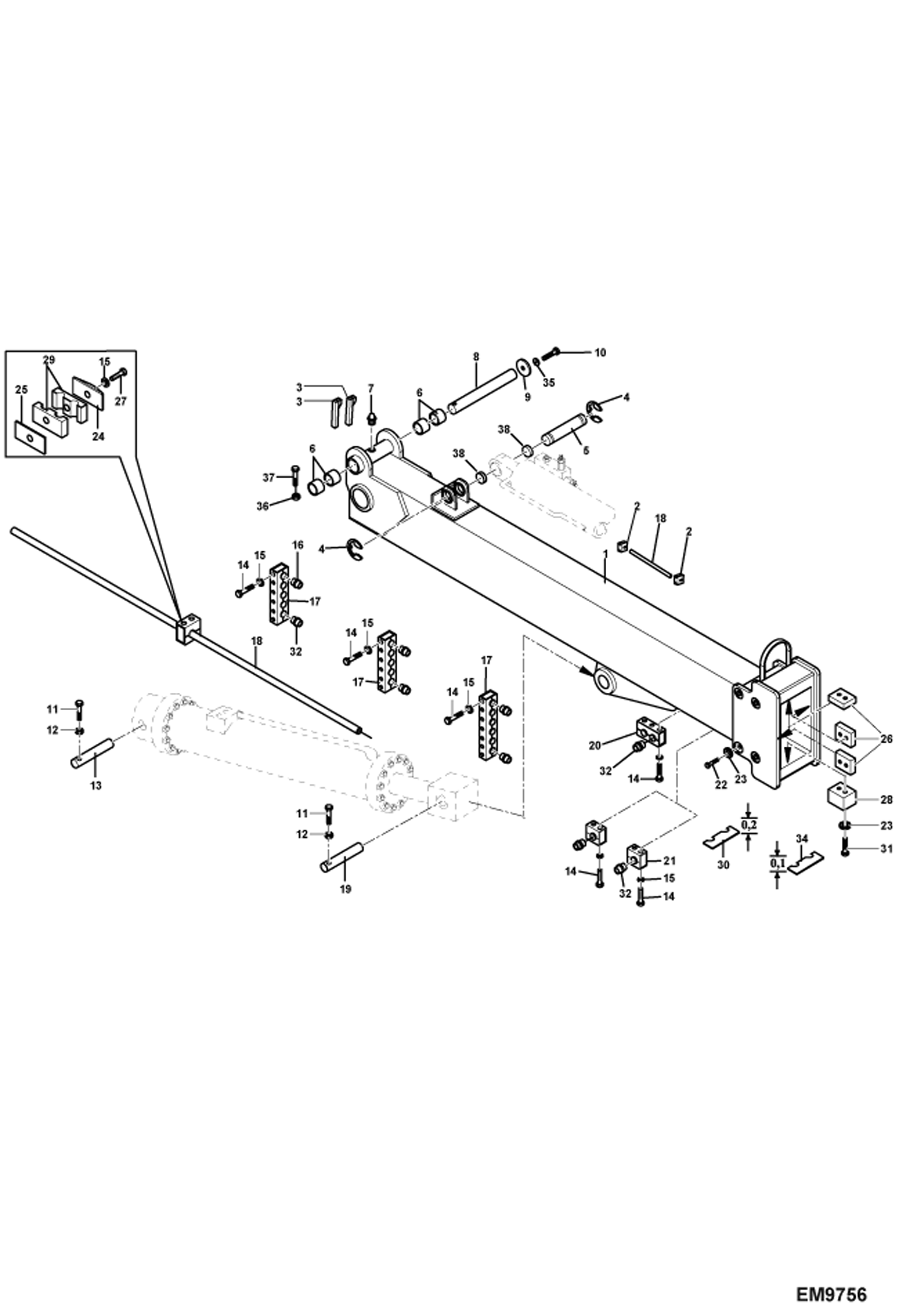

Запчасти Bobcat TR38160 FIXED BOOM MAIN FRAME

1

7019763

ARM, OUTER

2

7014912

GUIDE, CABLE

3

BRACKET NLA Was 7020189

4

7020137

RING, SNAP

5

7020028

PIN

6

7020045

BUSHING

7

7020125

NIPPLE, GREASE

8

7026863

PIN

9

7020188

WASHER

10

7019682

SCREW

11

7019686

SCREW

12

7014559

NUT

13

7020040

PIN

14

7019670

SCREW

15

7019737

WASHER

16

7014984

BUSHING

17

7014983

BRACKET

18

7020178

PIPE

19

7020039

PIN

20

7020120

BRACKET

21

7020119

BRACKET

22

7019681

STUD, HOLLOW

23

7020214

WASHER

24

7014982

PLATE, SAFETY

25

7020118

PLATE, SAFETY

26

7020055

PAD, WEAR

27

7014537

SCREW

28

7020052

PAD, WEAR

29

7020116

CLAMP

30

7020149

SHIM 0,2 mm

31

7019685

SCREW

32

7020121

BUSHING

34

7020148

SHIM 0,1 mm

35

7019746

WASHER, SCHNORR

36

7014560

SCREW

37

7014541

SCREW

38

7020181

SPACER
