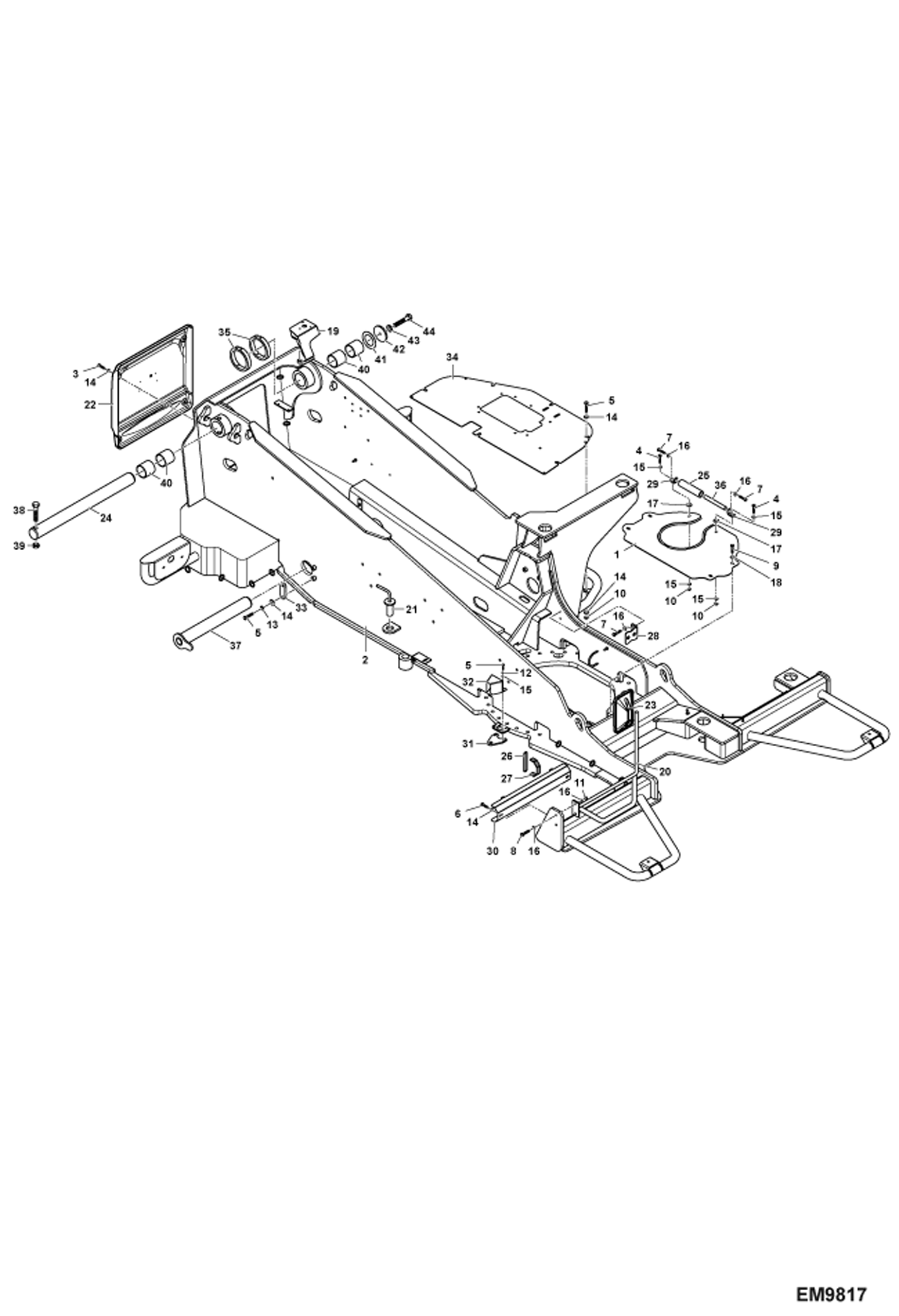

Запчасти Bobcat TR38160 FRAME & SUPPORTS MAIN FRAME

1

7027043

TIRE

2

7026755

CHASSIS

3

7019668

SCREW

4

7014534

SCREW

5

7014535

SCREW

6

BOLT NLA Was 7014536 - A

7

7018129

SCREW

8

7019676

SCREW

9

7019681

STUD, HOLLOW

10

NUT, SELF LOCKING NLA Was 7014561 - A

11

7014562

NUT

12

7019737

WASHER

13

7019739

WASHER

14

7018162

WASHER

15

7018061

WASHER

16

7018287

WASHER

17

7019748

WASHER

18

7019749

WASHER

19

7021473

SUPPORT

20

7019779

SUPPORT

21

7014610

PIN

22

7019783

COWL, REAR Was 7014617 - C

23

7014651

MIRROR, REAR VIEW

24

7026863

PIN

25

7026958

ROLL

26

7026948

RING, RUBBER

27

7026627

TAPE, ADHESIVE

28

7027015

SUPPORT

29

7027016

SUPPORT

30

7026998

SPACER

31

7015019

SUPPORT

32

7020160

PLATE, COVER

33

7015022

PLATE, SAFETY

34

7020170

BOARD, FOOT

35

7026945

RING, NUT

36

7026864

PIN

37

7014907

PIN

38

7019672

SCREW

39

7014560

SCREW

40

7020045

BUSHING

41

7028645

SHIM

42

7020188

WASHER

43

7019742

WASHER

44

7019682

SCREW
