Запчасти Bobcat TR35160 REDUCTION GEAR WITH HYDRAULIC MOTOR (Motor) HYDROSTATIC SYSTEM

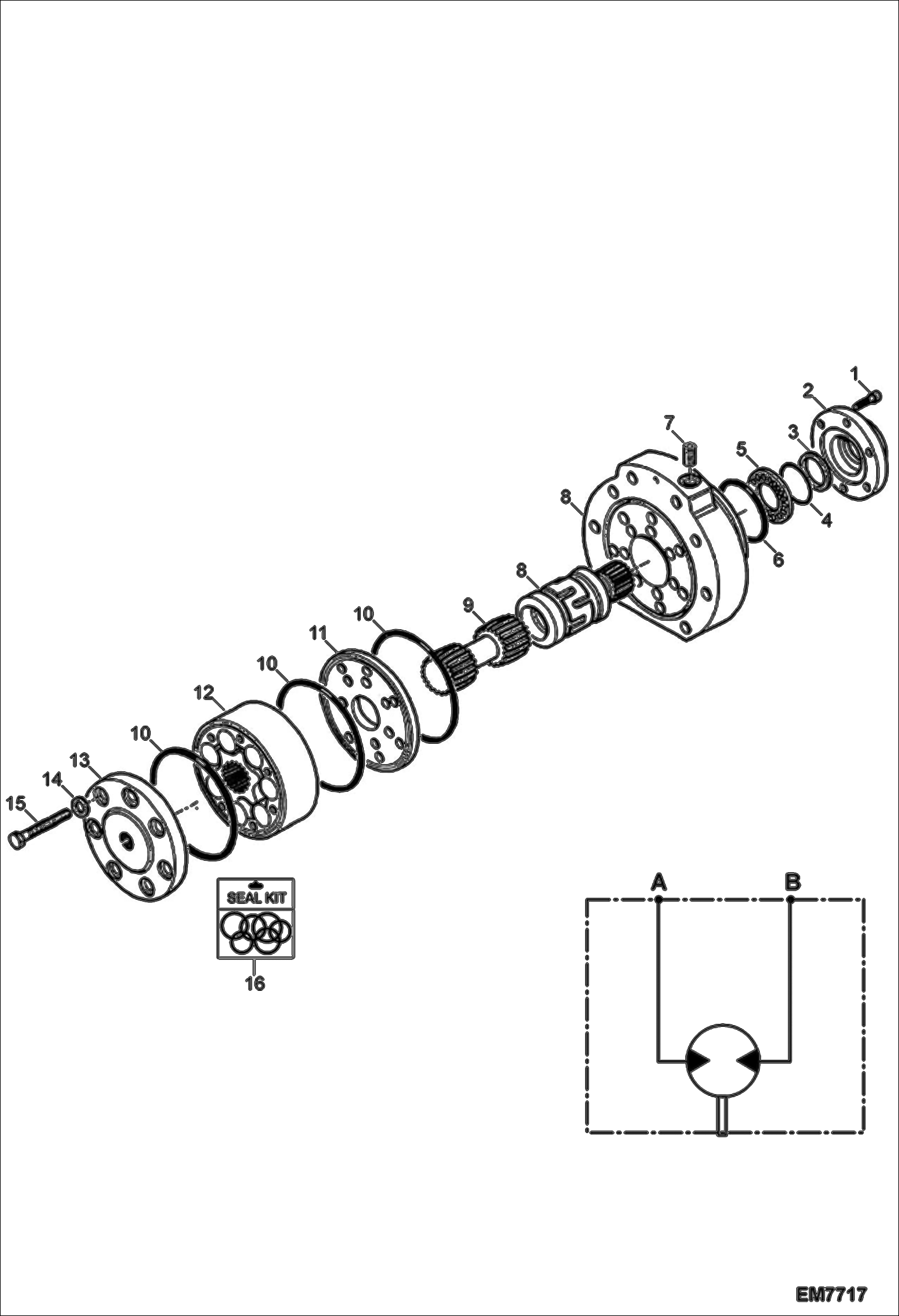

Схема запчастей Bobcat TR35160 - REDUCTION GEAR WITH HYDRAULIC MOTOR (Motor) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7019703

SCREW

2

7019533

COVER

3

7020090

RING, BACK-UP

4

7020082

O-RING

5

7019540

BEARING

6

7020079

O-RING

7

7019557

PLUG

8

7019535

SHAFT

9

7019531

JOINT

10

7020077

O-RING

11

7019534

MANIFOLD

12

7019546

ROTOR

13

7019532

COVER

14

7019538

WASHER

15

7019551

SCREW

16

7019536

KIT, SEALS

Выбрано товаров: 16
