Запчасти Bobcat TR35160 STEERING VALVE HYDRAULIC SYSTEM

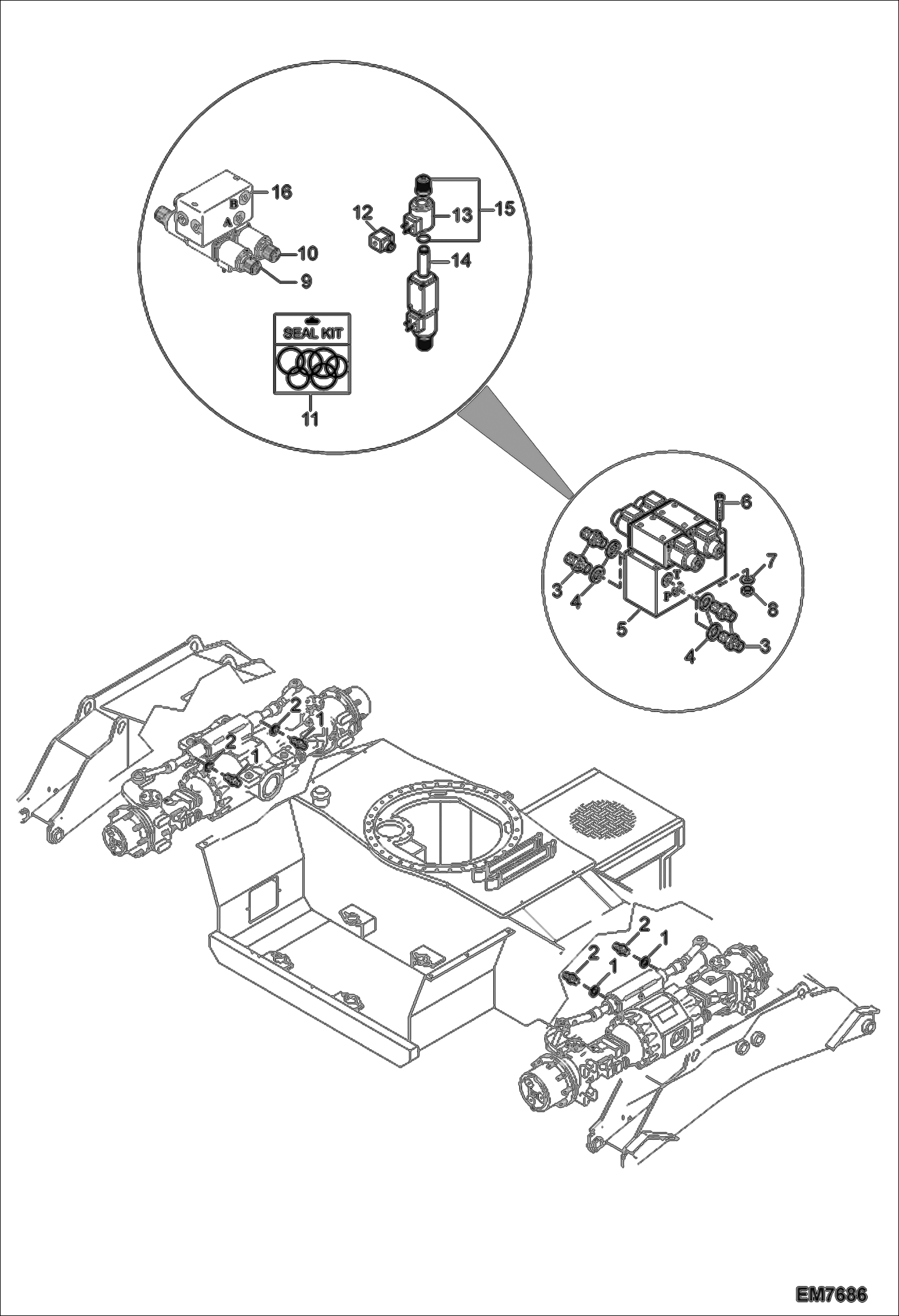

Схема запчастей Bobcat TR35160 - STEERING VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7018219

WASHER

2

7019803

FITTING, HYD

3

7014660

NIPPLE

4

7018154

WASHER

5

7014720

SOLENOID VALVE ASSY Was 7019889 - A

6

7018057

SCREW

7

7018162

WASHER

8

NUT NLA Was 7014561 - A

9

7014733

SOLENOID VALVE ASSY

10

7014730

SOLENOID VALVE ASSY

11

7014723

KIT, SEALS for one element

12

7014725

CONNECTOR

13

7014719

COIL

14

7020213

KIT, VALVE

15

7014724

NUT, RING

16

7014734

BASE

Выбрано товаров: 16
