Запчасти Bobcat TR35160 HYDRAULIC CIRCUITRY (Distributor) HYDRAULIC SYSTEM

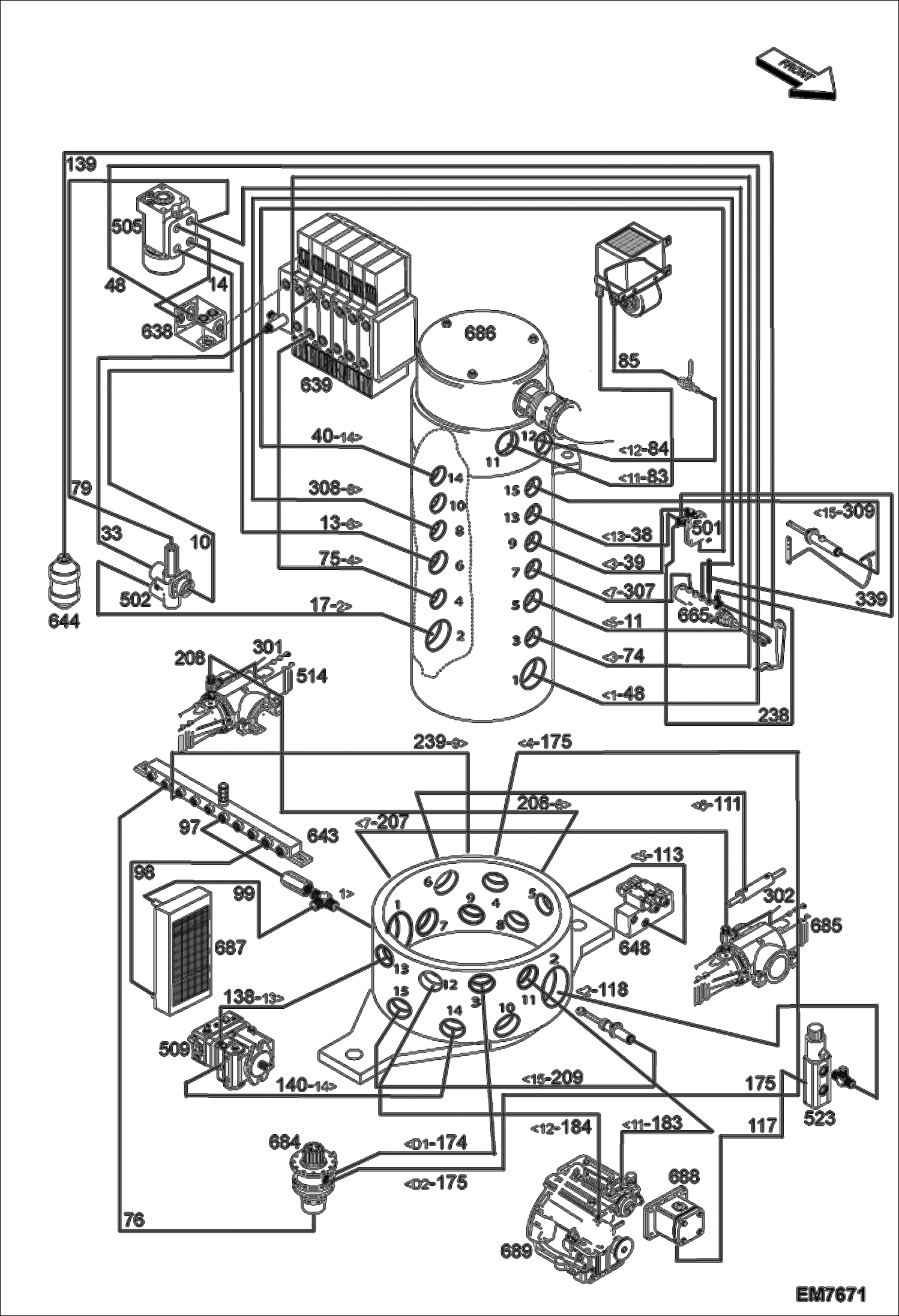

Схема запчастей Bobcat TR35160 - HYDRAULIC CIRCUITRY (Distributor) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

10

7019999

HOSE, HYD

11

7019987

HOSE, HYD

13

7019986

HOSE, HYD

14

7019996

HOSE, HYD

17

7020200

HOSE, HYD

33

7020201

HOSE, HYD

38

7019973

HOSE, HYD

39

7019974

HOSE, HYD

40

7019968

HOSE, HYD

48

7020011

HOSE, HYD

74

7020001

HOSE, HYD

75

7020000

HOSE, HYD

76

7019963

HOSE, HYD

79

7019960

HOSE, HYD

83

7014831

HOSE ASSY

84

7014830

HOSE ASSY

85

7014829

HOSE ASSY

97

7020236

HOSE, HYD

98

7020012

HOSE, HYD

99

7020010

HOSE, HYD

111

7019988

HOSE, HYD

113

7019989

HOSE, HYD

117

7020005

HOSE, HYD

118

7020199

HOSE, HYD

138

7019972

HOSE, HYD

139

7019971

HOSE, HYD

140

7019967

HOSE, HYD

174

7019997

HOSE, HYD

175

7019998

HOSE, HYD

183

7019948

HOSE, HYD

184

7014831

HOSE ASSY

207

7019980

HOSE, HYD

208

7019980

HOSE, HYD

209

7019981

HOSE, HYD

238

7019964

PIPE, FLEXIBLE

239

7019976

HOSE, HYD

301

7014842

HOSE ASSY

302

7014842

HOSE ASSY

307

7019978

HOSE, HYD

308

7019978

HOSE, HYD

309

7019979

HOSE, HYD

339

7019964

PIPE, FLEXIBLE

501

7014698

SWITCH, INCHING See Illustration STEERING & INCHING/ EM7681

502

7019891

VALVE, LOADSENSING See Illustration HYDRAULIC COMPONENTS/ EM7687

505

7014736

VALVE, HYDRAULIC STEERING See Illustration STEERING & INCHING/ EM7681

509

7019877

PUMP See Illustration PUMPS & MOTORS/ EM7682

514

7019644

AXLE, DIFFERENTIAL FRONT

523

7014676

SWITCH, HYDRAULIC See Illustration STABILIZER/LEVELLING VALVE/ EM7689

638

7014825

MANIFOLD

639

7019859

VALVE, CONTROL See Illustration CONTROL VALVE/ EM7692

643

7014824

MANIFOLD See Illustration MANIFOLD INSTALLATION/ EM7707

644

7014657

ACCUMULATOR See Illustration HYDRAULIC COMPONENTS/ EM7687 Was 7019797 - A

648

7014720

SOLENOID VALVE ASSY

665

7014654

CYLINDER, BRAKE MASTER

684

7020024

REDUCER See Illustration REDUCTION GEAR WITH HYDRAULIC MOTOR INSTALLATION/ EM7702

685

7019647

AXLE, FRONT Was 7019645 - B,D

686

7019863

DISTRIBUTOR

687

7020093

RADIATOR ASSY See Illustration ENGINE & ATTACHING PARTS/ EM7703

688

7019879

PUMP See Illustration SUPPLEMENTARY PUMP INSTALLATION/ EM7683

689

7020667

ENGINE

Выбрано товаров: 60
