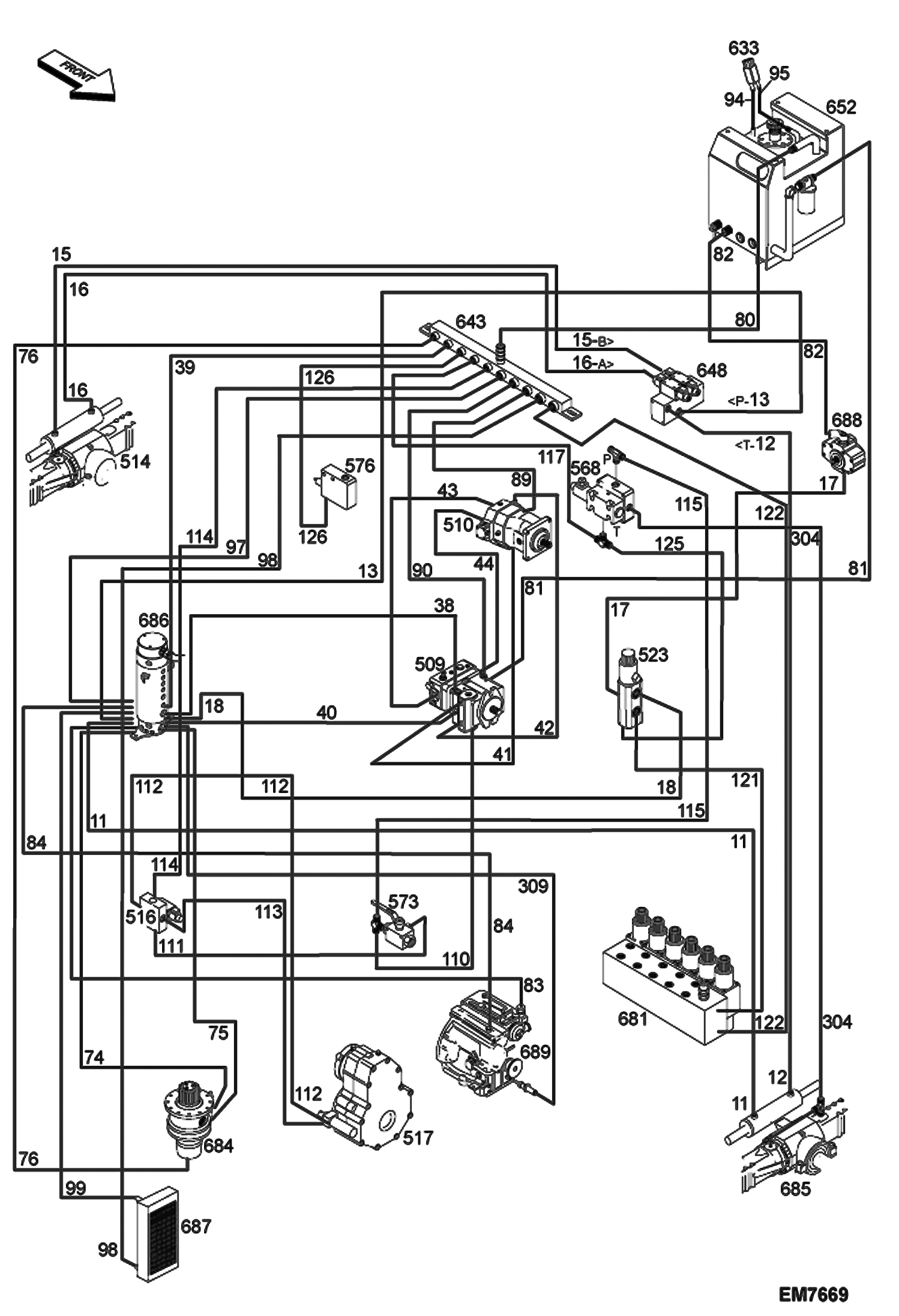

Запчасти Bobcat TR35160 HYDRAULIC CIRCUITRY (Lower section) HYDRAULIC SYSTEM

11

7019988

HOSE, HYD

12

7019991

HOSE, HYD

13

7019989

HOSE, HYD

15

7019992

HOSE, HYD

16

7019990

HOSE, HYD

17

7020005

HOSE, HYD

18

7020199

HOSE, HYD

38

7019972

HOSE, HYD

39

7019976

HOSE, HYD

40

7019967

HOSE, HYD

41

7019977

HOSE, HYD

42

7019977

HOSE, HYD

43

7020009

HOSE, HYD

44

7020004

HOSE, HYD

74

7019997

HOSE, HYD

75

7019998

HOSE, HYD

76

7019963

HOSE, HYD

80

7019958

HOSE, HYD

81

7019957

HOSE, HYD

82

7019959

HOSE, HYD

83

7014831

HOSE ASSY

84

7019948

HOSE, HYD

89

7019952

HOSE, HYD

90

7019956

HOSE, HYD

94

7019955

HOSE, HYD

95

7019954

HOSE, HYD

97

7020236

HOSE, HYD

98

7020012

HOSE, HYD

99

7020010

HOSE, HYD

110

7019970

HOSE, HYD

111

7019969

HOSE, HYD

112

7019961

HOSE, HYD

113

7019961

HOSE, HYD

114

7019971

HOSE, HYD

115

7019966

HOSE, HYD

117

7019962

HOSE, HYD

121

7020198

HOSE, HYD

122

7020197

HOSE, HYD

125

7019965

HOSE, HYD

126

7019970

HOSE, HYD

304

7019965

HOSE, HYD

309

7019981

HOSE, HYD

509

7019877

PUMP See Illustration PUMPS & MOTORS/ EM7682

510

7019908

MOTOR, HYDROSTATIC See Illustration PUMPS & MOTORS/ EM7682

514

7019644

AXLE, DIFFERENTIAL FRONT

516

7014718

SOLENOID VALVE ASSY See Illustration HYDRAULIC COMPONENTS/ EM7685

517

7019650

REDUCER See Illustration TWO SPEED REDUCER AND DISTRIBUTOR INSTALLATION/ EM7684

523

7014676

SWITCH, HYDRAULIC See Illustration STABILIZER/LEVELLING VALVE/ EM7689

568

7014721

VALVE, SOLENOID

573

7014697

VALVE See Illustration HYDRAULIC COMPONENTS/ EM7685

576

7019888

VALVE

633

7014606

VENT See Illustration FUEL & OIL TANK INSTALLATION/ EM7706

643

7014824

MANIFOLD See Illustration MANIFOLD INSTALLATION/ EM7707

648

7014720

SOLENOID VALVE ASSY

652

7014585

TANK, OIL

681

7019858

VALVE, SOLENOID

684

7020024

REDUCER See Illustration REDUCTION GEAR WITH HYDRAULIC MOTOR INSTALLATION/ EM7702

685

7019647

AXLE, FRONT Was 7019645 - B,D

686

7019864

SWIVEL JOINT See Illustration SWIVEL JOINT INSTALLATION/ EM7690

687

7020093

RADIATOR ASSY See Illustration ENGINE & ATTACHING PARTS/ EM7703

688

7019879

PUMP See Illustration SUPPLEMENTARY PUMP INSTALLATION/ EM7683

689

7020667

ENGINE See Illustration ENGINE INSTALLATION/ EM7731
