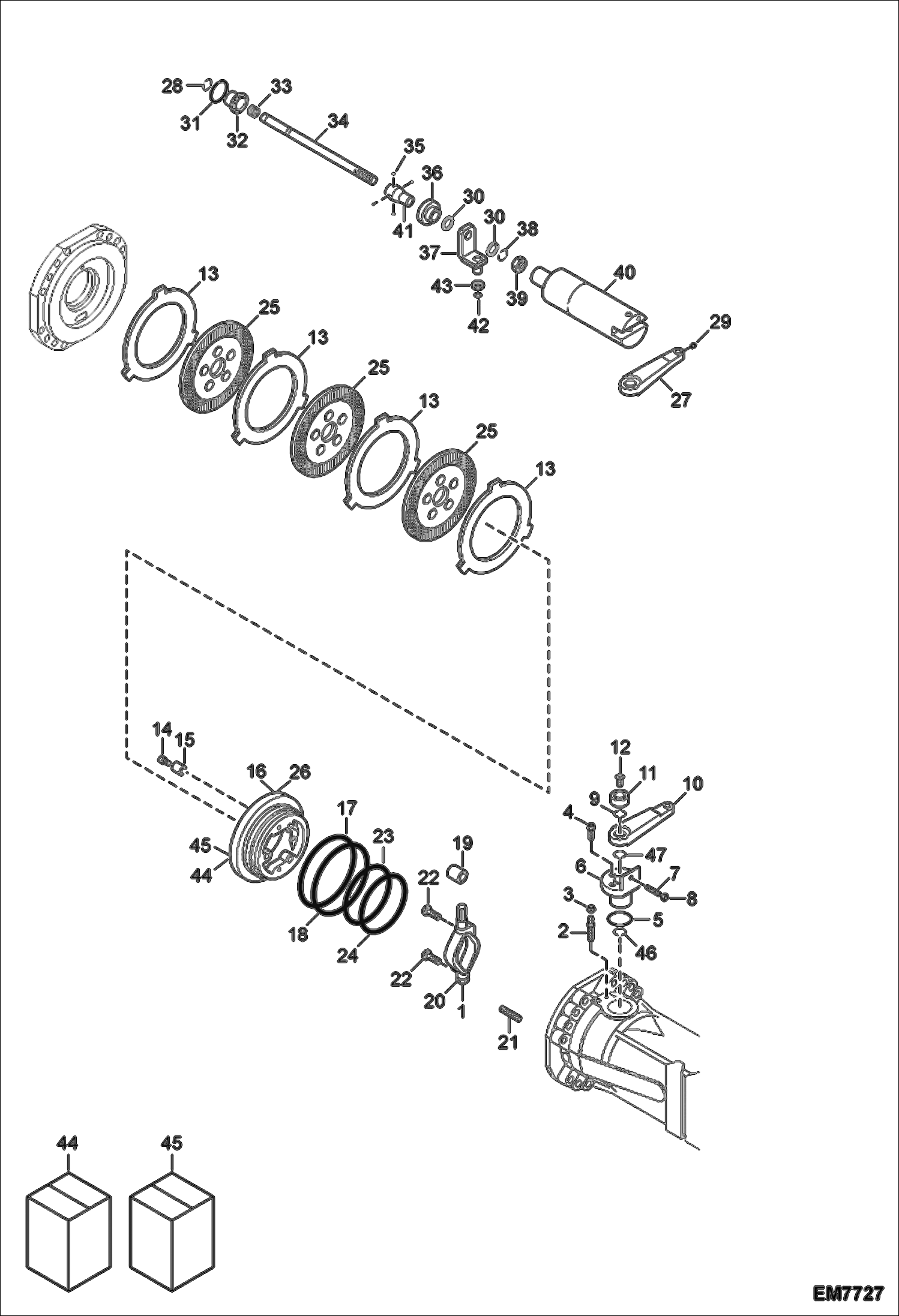

Запчасти Bobcat TR35160 FRONT AXLE DISC BRAKES DRIVE SYSTEM

1

7019611

LEVER, RH

2

6912775

SCREW Was 7014508 - B

3

6912629

PLUG Was 7014509 - B

4

7019583

SCREW

5

7022231

O-RING Was 7014313 - C

6

7019605

BUSHING

7

7019585

STUD, THREADED

8

7019573

NUT

9

7019561

O-RING

10

7019606

LEVER

11

7019615

WASHER

12

7019584

SCREW, COUNTERSUNK

13

6912915

INTERMEDIATE DISC Was 7014413 - B

14

7019608

SCREW, ADJUSTING

15

6912864

SPRING Was 7014411 - B

16

7019613

PISTON, LH Was 7019603 - C

17

7017804

RING, BACK-UP Was 7014418 - C

18

7017805

O-RING Was 7014416 - C

19

7017808

PIN Was 7014367 - C

20

7019612

LEVER, LH

21

7017803

SPRING Was 7014428 - C

22

7019659

SCREW, ADJUSTING

23

7017806

RING, BACK-UP Was 7014417 - C

24

7017807

O-RING Was 7014415 - C

25

7024652

DISC, BRAKE Was 7014421 - B

26

7019614

PISTON, RH Was 7019604 - C

27

7019607

LEVER

28

7019565

RING, SNAP

29

7019576

NIPPLE, GREASE

30

7019578

WASHER

31

7019568

RING

32

7019617

BUSHING, REDUCTION

33

7019658

SPRING

34

7019609

PIN

35

7019579

BALL

36

7019618

BUSHING, REDUCTION

37

7019619

SUPPORT

38

7019567

RING, SNAP

39

7019574

NUT

40

7019610

CYLINDER

41

7019616

BUSHING, REDUCTION

42

7019566

RING, SNAP

43

7019657

SPACER

44

7019614

PISTON, RH

45

7019613

PISTON, LH

46

7019562

O-RING

47

7019561

O-RING
