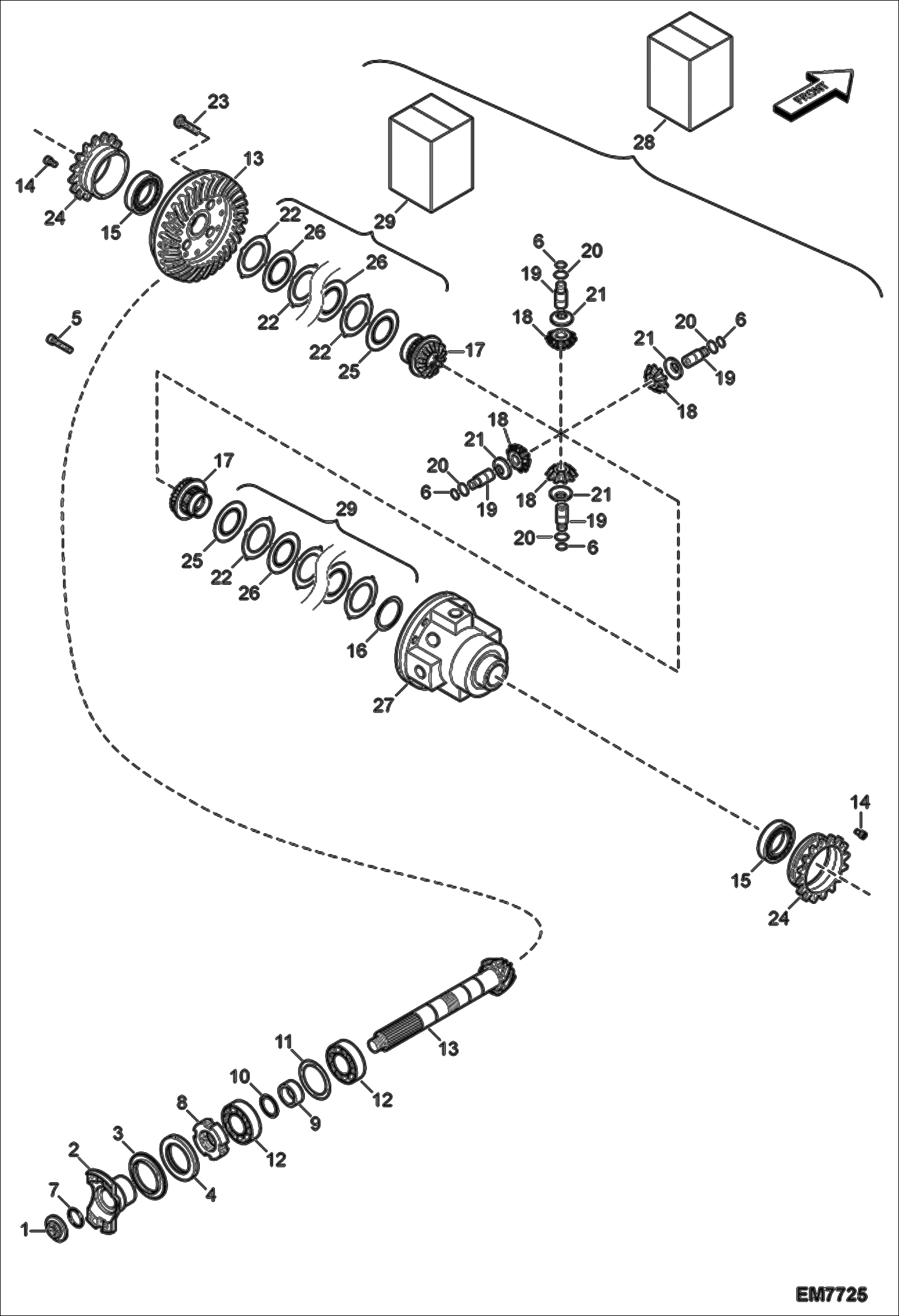

Запчасти Bobcat TR35160 FRONT AXLE DIFFERENTIAL DRIVE SYSTEM

1

6912834

NUT Was 7014500 - B

2

7017795

FLANGE Was 7014404 - C

3

COVER NSS

4

7010890

SEAL Was 6912703 - A

5

7014373

SCREW

6

6912810

SNAP RING Was 7014324 - B

7

6912855

O'RING Was 7014318 - B

8

6646369

NUT Was 6912835 - A

9

6912836

SPACER Was 7014395 - B

10

6912795

SHIM 0,15MM 0,15 mm Was 7014359 - B

10

6912796

SHIM 0,20MM 0,20 mm Was 7014360 - B

10

6912797

SHIM 0,40MM 0,40 mm Was 7014361 - B

10

6912798

SHIM 0,50MM 0,50 mm Was 7014362 - B

11

6912791

SHIM 0,20MM 0,20 mm Was 7014355 - B

11

6912792

SHIM 0,30MM 0,30 mm Was 7014356 - B

11

6912793

SHIM 0,12MM 0,12 mm Was 7014357 - B

11

6912794

SHIM 0,10MM 0,10 mm Was 7014358 - B

12

6912873

BEARING Was 7014329 - B

13

7019593

PINION

14

7014376

SCREW

15

6912872

BEARING Was 7014328 - B

16

DISC NSS - Order Ref. 29

17

6912862

PLANETARY Was 7014391 - B

18

7010892

PINION, DIFFERENTIAL Was 7014389 - B

19

7022723

SPINDLE Was 6912779 - B,D

20

6912809

SNAP RING Was 7014323 - B

21

6912870

WASHER Was 7014394 - B

22

DISC NSS - Order Ref. 29

23

6912771

SCREW Was 7014382 - B

24

6912832

NUT Was 7014397 - B

25

DISC NSS - Order Ref. 29

26

DISC NSS - Order Ref. 29

27

6912806

DIFFERENTIAL CASE Was 7014396 - B

28

6912820

DIFFERENTIAL Was 7014403 - B

29

6912821

Disc W/Ref. 16, 22, & 25-26 Was 7014401 - B
