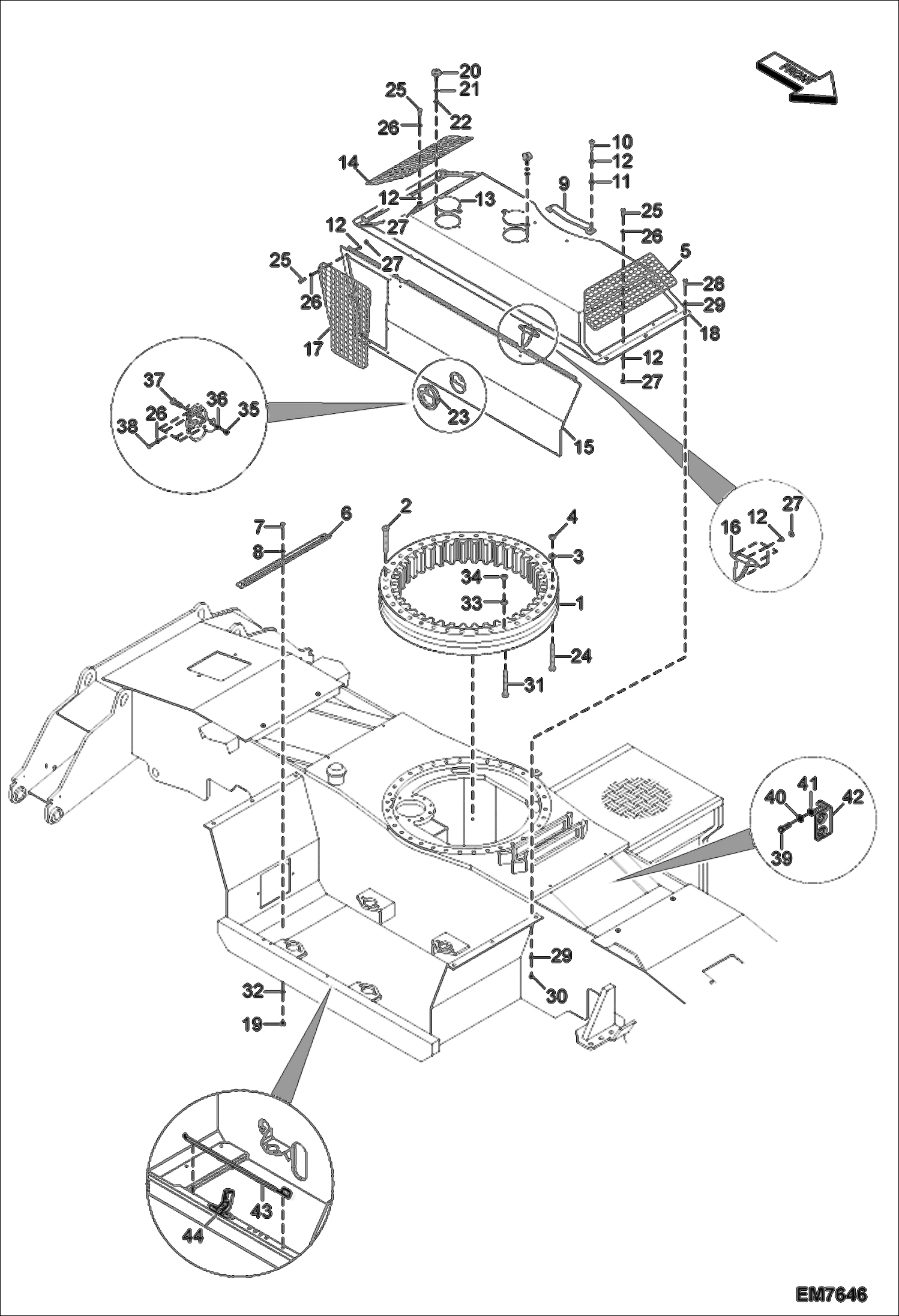

Запчасти Bobcat TR35160 COWLING, SUPPORTS & BEARING (Standard Frame) UNDERCARRIAGE

1

7020100

BEARING, BALL

2

7019699

SCREW

3

7019751

WASHER

4

7019734

NUT, SELF LOCKING

5

7015009

GRID

6

7015035

PLATE, CLAMPING

7

7014535

SCREW

8

7018162

WASHER

9

7015014

PLATE, ROTATION LIMIT

10

7018098

SCREW

11

7019738

WASHER

12

7018133

WASHER

13

7020168

COVER

14

7015008

GRID

15

7019757

COWL

16

7014992

HINGE

17

7015010

HOUSING

18

7019760

COWL

19

NUT NLA Was 7014561 - A

20

7014971

HANDLE

21

7018133

WASHER

22

7020209

WASHER, LOCK

23

7014973

HANDLE

24

7019700

SCREW

25

7018098

SCREW

26

7019747

WASHER

27

7018059

NUT

28

7014535

SCREW

29

7018162

WASHER

30

NUT NLA Was 7014561 - A

31

7019700

SCREW

32

7018061

WASHER

33

7019751

WASHER

34

7019734

NUT, SELF LOCKING

35

NUT NLA Was 7014561 - A

36

7018061

WASHER

37

7019726

SCREW

38

7020142

SCREW

39

7014534

SCREW

40

7019739

WASHER

41

7018162

WASHER

42

7020158

SUPPORT

43

7015195

ROD, BONNET SUPPORT

44

7014603

SUPPORT
