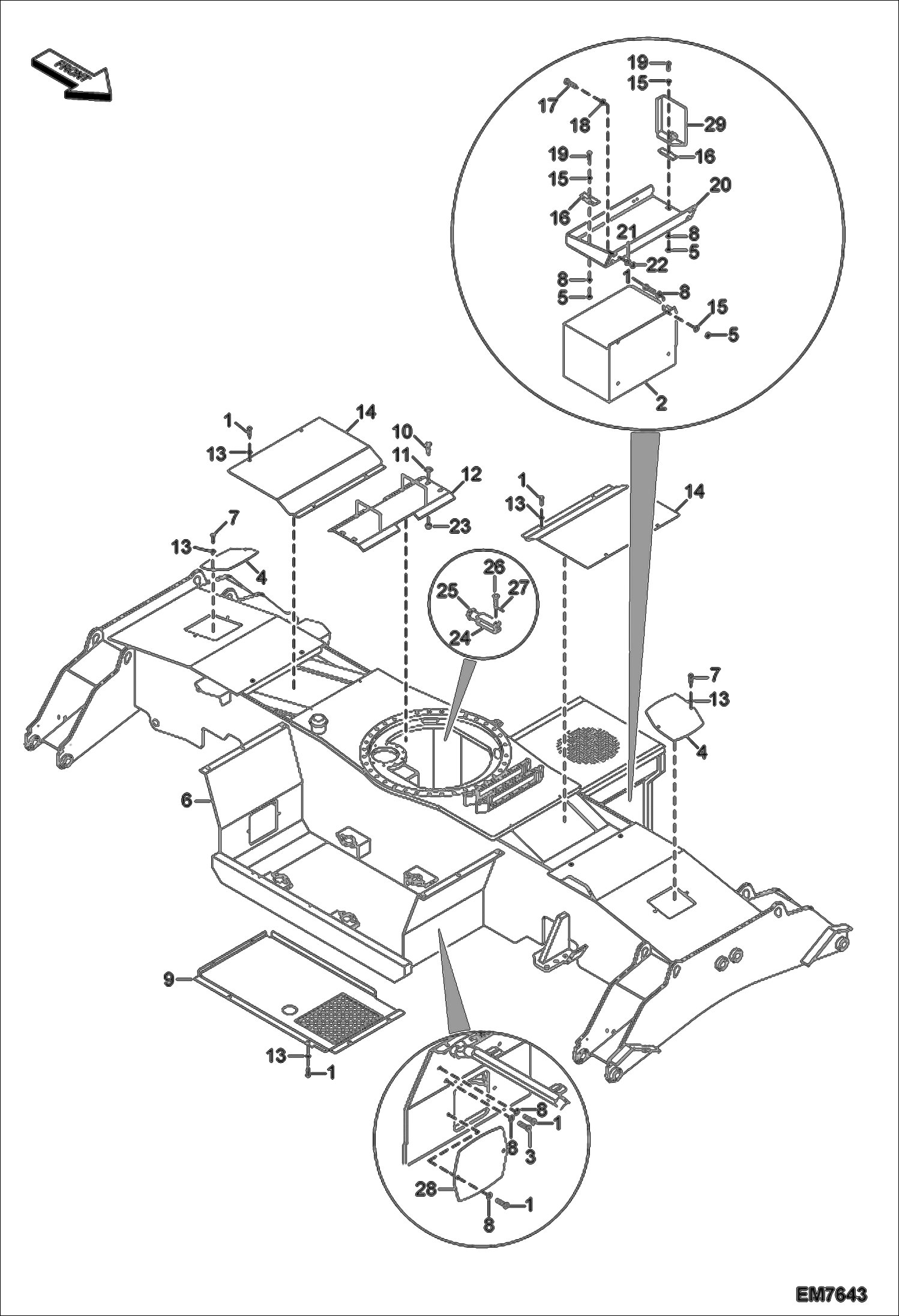

Запчасти Bobcat TR35160 HOUSING & SUPPORTS (Standard Frame) UNDERCARRIAGE

1

7014535

SCREW

2

7019761

HOUSING

3

BOLT NLA Was 7014536 - A

4

7020151

HOUSING

5

7014562

NUT

6

7019755

FRAME

7

7014534

SCREW

8

7018162

WASHER

9

7019759

HOUSING

10

7019674

SCREW

11

7019748

WASHER

12

7014608

SUPPORT

13

7014564

WASHER

14

7020169

HOUSING

15

7018061

WASHER

16

7014650

STOP

17

7019674

SCREW

18

7019748

WASHER

19

7014537

SCREW

20

7020162

SUPPORT

21

7018287

WASHER

22

7014562

NUT

23

7014562

NUT

24

7015004

YOKE

25

7019729

NUT

26

7020140

PIN

27

7014988

PIN, COTTER

28

7020144

HOUSING

29

7020165

HOUSING
