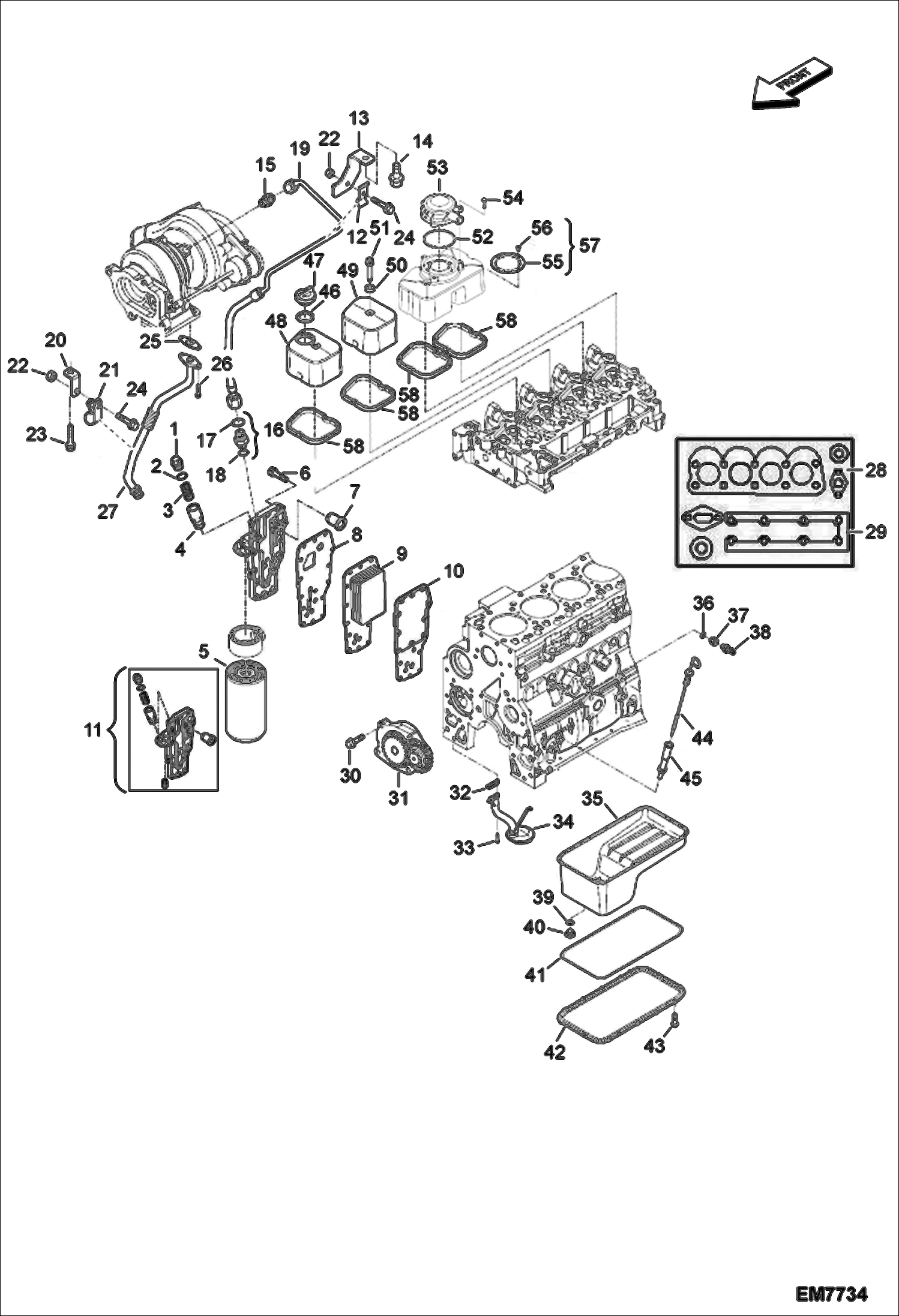

Запчасти Bobcat TR35160 ENGINE COMPONENTS (Oil Circuit) POWER UNIT

1

7019350

PLUG

2

7019391

O-RING

3

7019351

SPRING

4

7019372

VALVE

5

7019876

CARTRIDGE, OIL

6

7019388

SCREW

7

7019375

VALVE

8

7019374

GASKET

9

7019373

COOLING RADIATOR, OIL

10

7019371

GASKET

11

7019343

EXCHANGER ASSY, HEAT

12

7019469

BRACKET

13

7019439

BRACKET

14

7019314

SCREW

15

7019415

FITTING

16

7022929

FITTING Was 7019352 - C

17

7019400

O-RING

18

7019399

O-RING

19

TUBE In coding phase

20

7019438

BRACKET

21

7019402

COLLAR

22

7019317

NUT

23

7019323

SCREW

24

7019322

SCREW

25

GASKET

26

7019354

SCREW

27

TUBE In coding phase

28

7019463

KIT, GASKET

29

7019464

VALVE, GRIND SET

30

7019396

SCREW

31

7019382

PUMP

32

7019385

GASKET

33

7019307

SCREW

34

7019409

TUBELINE, SUCTION

35

7020978

SUMP, OIL Was 7019453 - C

36

7019394

O-RING

37

7019431

FITTING

38

7019467

SWITCH

39

7019369

O-RING

40

7019347

PLUG

41

7019384

GASKET

42

7019383

SPACER

43

7019397

SCREW

44

7019462

DIPSTICK

45

7019461

TUBE

46

7019359

GASKET

47

7019355

PLUG

48

7019446

COVER

49

7019447

COVER

50

7019366

PLUG

51

7019356

SCREW

52

7019405

GASKET

53

7019404

VALVE

54

7019401

SCREW

55

7019333

O-RING

56

7019315

SCREW

57

7019334

COVER W/Ref. 55-56

58

7019437

GASKET
