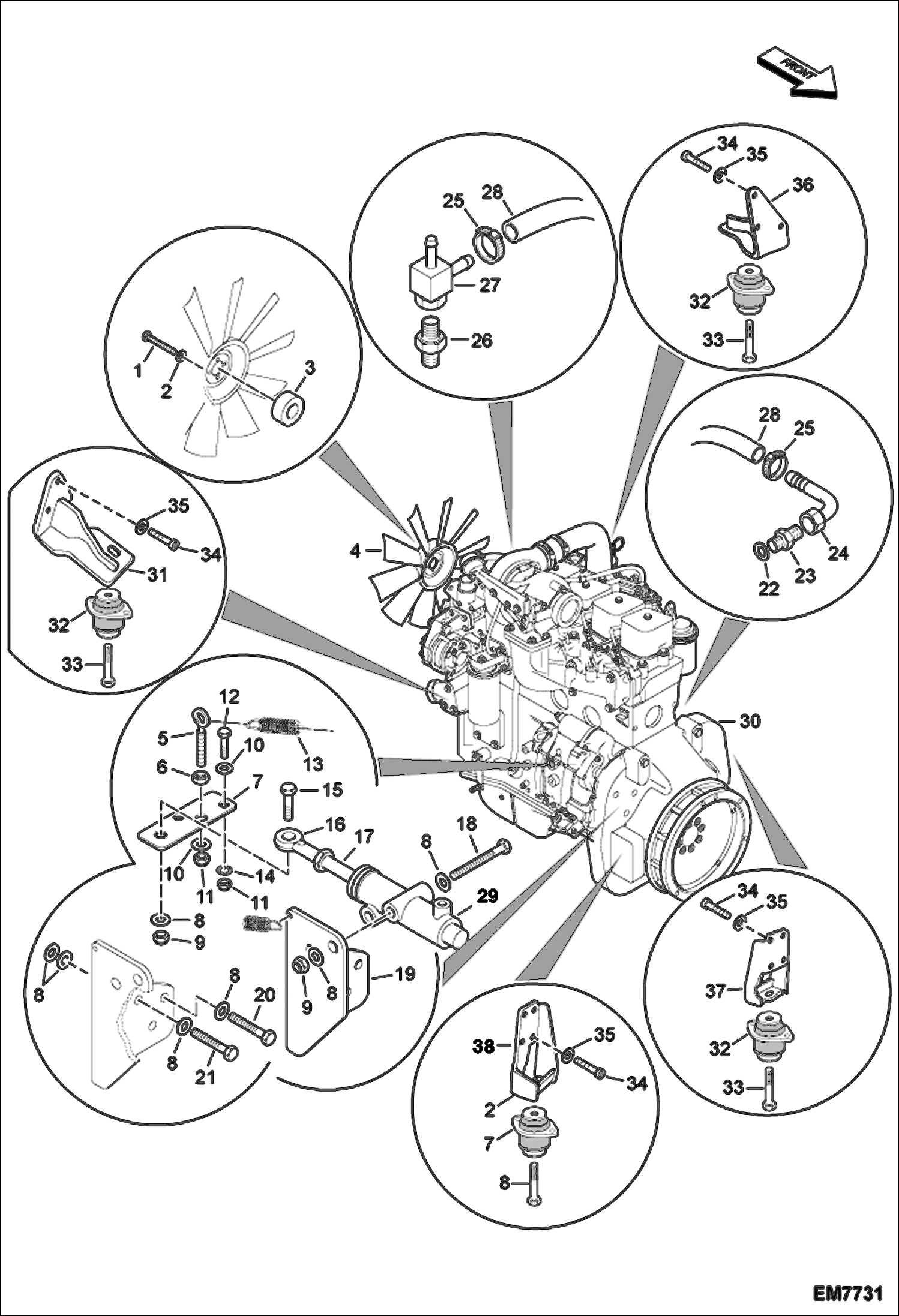

Запчасти Bobcat TR35160 ENGINE INSTALLATION POWER UNIT

1

7019678

SCREW

2

7019741

WASHER

3

7020186

SPACER

4

7020097

BLOWER

5

7020105

HOOK

6

7014558

NUT

7

7020167

PLATE

8

7018061

WASHER

9

NUT NLA Was 7014561 - A

10

7019747

WASHER

11

7018059

NUT

12

7018098

SCREW

13

7020134

SPRING

14

7019743

WASHER

15

7014537

SCREW

16

7020123

PIN, PIVOT

17

7020185

ROD

18

7014537

SCREW

19

7020159

SUPPORT

20

BOLT NLA Was 7014536 - A

21

BOLT NLA Was 7014536 - A

22

7019900

WASHER

23

7019806

FITTING, HYD

24

7019815

FITTING, HYD ELBOW

25

7020106

CLAMP

26

7014660

NIPPLE

27

7019846

FITTING

28

7019950

TUBE, FLEXIBLE

29

7019795

CYLINDER

30

7020667

ENGINE See next pages for details

31

7019771

SUPPORT

32

7020187

BLOCK, SILENT

33

7019683

SCREW

34

7019716

SCREW

35

7020214

WASHER

36

7019774

SUPPORT

37

7019773

SUPPORT

38

7019772

SUPPORT
