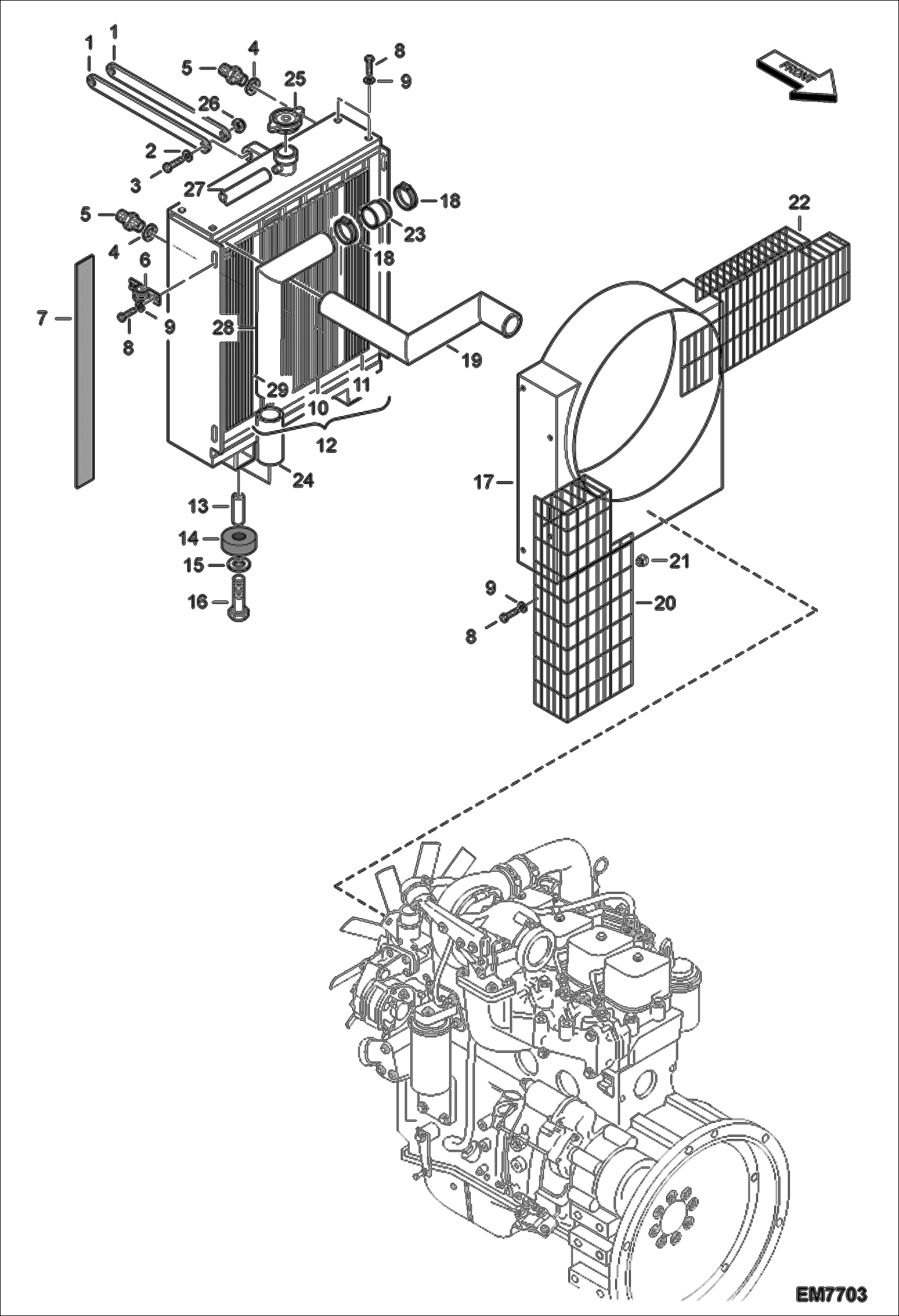

Запчасти Bobcat TR35160 ENGINE & ATTACHING PARTS (Oil/Water Radiator) POWER UNIT

1

7020166

ROD

2

7018287

WASHER

3

7016977

FITTING

4

7019902

WASHER, BONDED Was 7019901 - B,D

5

7019808

FITTING, HYD Was 7019809 - B,D

6

7019497

CLAMP

7

7020061

GUARD

8

7014532

SCREW

9

7018133

WASHER

10

7024574

COOLER, WATER Was 7020096 - D

11

7024575

COOLER, OIL Was 7020094 - D

12

7024573

COOLER ASSY Ref. 10, 11 & 29 Was 7020093 - D

13

7015192

BUSHING

14

7013668

BLOCK, SILENT

15

7019752

WASHER

16

7019679

SCREW

17

7020095

CONVEYOR

18

7021567

CLAMP, HOSE Was 7014976 - B,D

19

7024720

PIPE Was 7019951 - D

20

7020146

HOUSING

21

7020060

SUPPORT

22

7020145

HOUSING

23

7024721

PIPE Was 7019466 - D

24

7024722

PIPE Was 7019949 - D

25

7020886

VENT Was 7019304 - C

26

7014562

NUT

27

7014826

TUBE

28

7020133

TUBE, FLEXIBLE

29

7024576

COOLER, AIR
