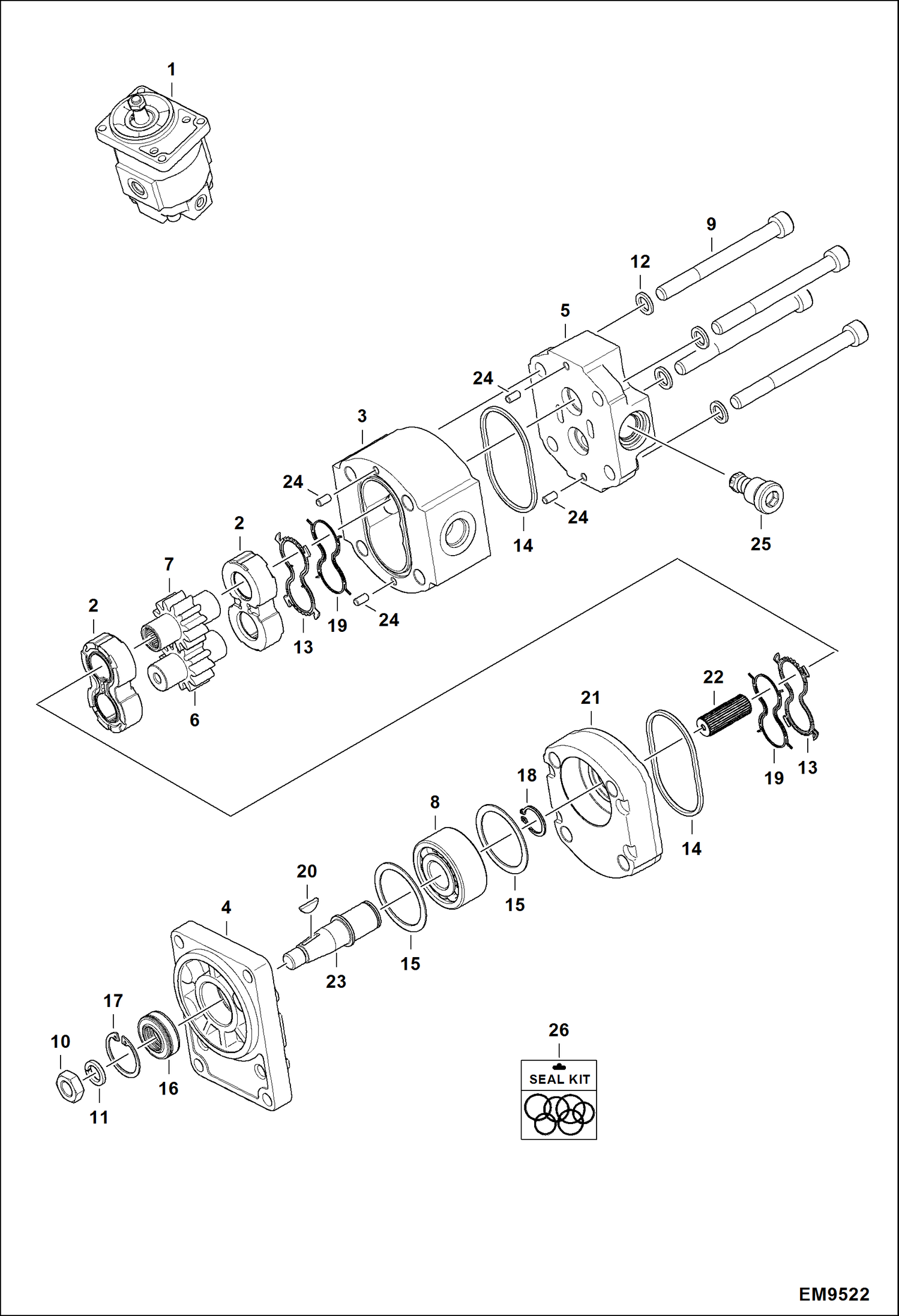

Запчасти Bobcat TL470HF FAN MOTOR HYDRAULIC SYSTEM

1

7214869

MOTOR, FAN Ref. 2-25

2

PLATE NLA - Order Ref. 1

3

HOUSING NLA - Order Ref. 1

4

COVER, FRONT NLA - Order Ref. 1

5

COVER, REAR NLA - Order Ref. 1

6

GEAR, DRIVE NLA - Order Ref. 1

7

GEAR, DRIVE NLA - Order Ref. 1

8

BEARING, BALL NLA - Order Ref. 1

9

BOLT NLA - Order Ref. 1

10

NUT NLA - Order Ref. 1

11

WASHER NLA - Order Ref. 1

12

WASHER NLA - Order Ref. 1

13

SEAL NLA - Order Ref. 26

14

SEAL NLA - Order Ref. 26

15

SEAL NLA - Order Ref. 26

16

SEAL, SHAFT NLA - Order Ref. 26

17

RING, SNAP NLA - Order Ref. 1

18

RING, SNAP NLA - Order Ref. 1

19

SEAL NLA - Order Ref. 26

20

KEY NLA - Order Ref. 1

21

FLANGE NLA - Order Ref. 1

22

HUB NLA - Order Ref. 1

23

SUPPORT NLA - Order Ref. 1

24

PIN NLA - Order Ref. 1

25

VALVE NLA - Order Ref. 1

26

7024655

KIT, SEAL Ref. 13-16 & 19
