Запчасти Bobcat TL470HF HYDRAULIC TANK HYDRAULIC SYSTEM

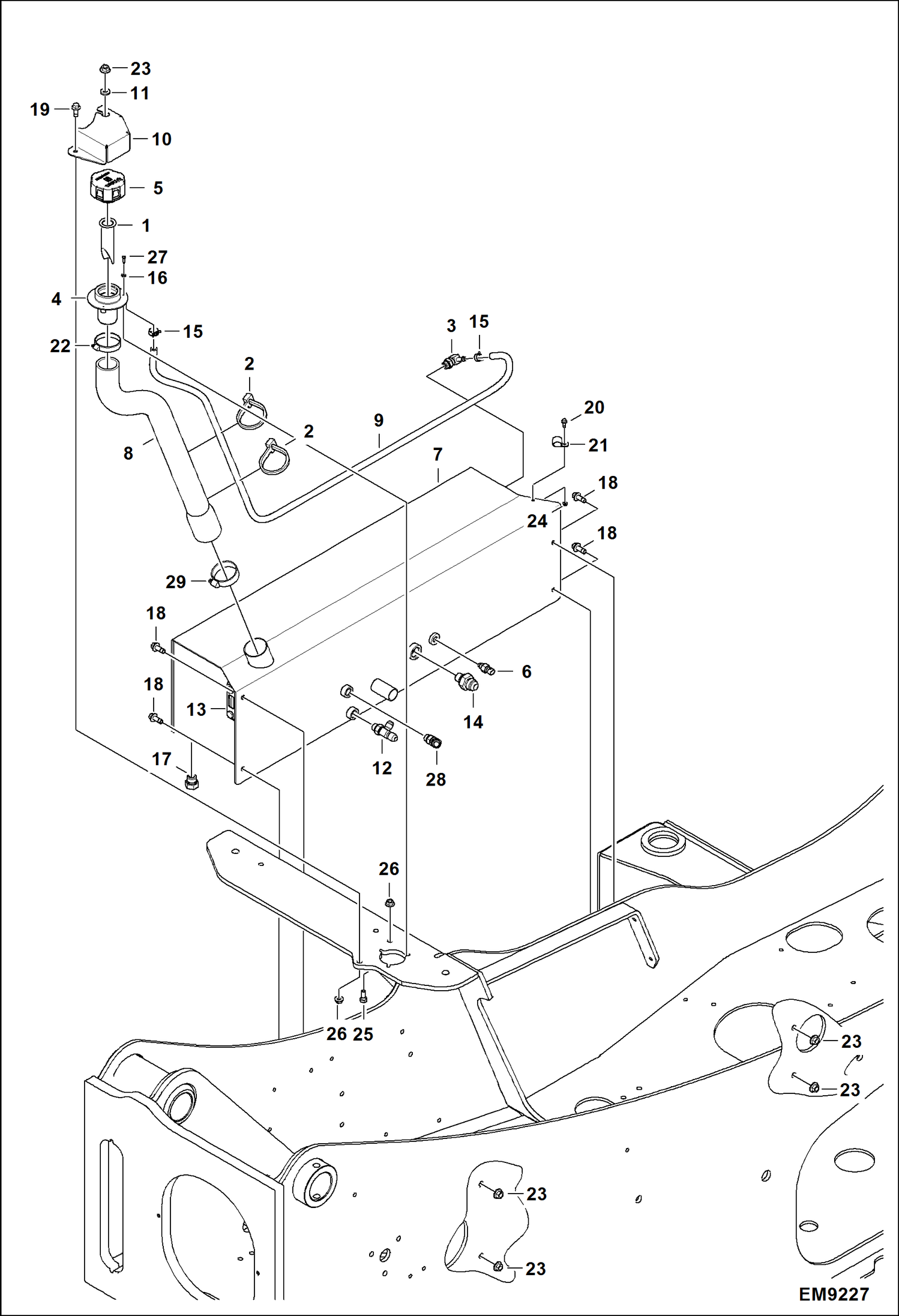

Схема запчастей Bobcat TL470HF - HYDRAULIC TANK HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7120881

SCREEN, FILLER Was 7003487 - B,D

2

6624289

STRAP, TIE

3

7216007

FITTING Was 6680951 - A

3

79K8

O RING 10

4

6727354

INLET

5

6727475

CAP, OIL HYD

6

6727869

SENDER,HYD TEMP

7

7166960

TANK, HYD

8

7167085

HOSE, HYD

9

7168296

HOSE

10

7183224

COVER, METAL

11

17EM100

WASHER

12

21KB1008

FITTING, HYD STRAIGHT TEE

12

79K8

O RING 10

13

7193967

GAUGE, SIGHT

14

15KB1612

FITTING, HYD CONNECTOR

14

79K12

O RING 10

15

5HM16

CLAMP

16

17EM40

WASHER

17

24K8

PLUG

17

79K12

O RING 10

18

29CM1030

BOLT Was 29CM1025 - A

19

29CM1030

BOLT

20

29CM616

BOLT

21

30H35

CLAMP 10

22

42HL300

CLAMP

23

43DM10

NUT

24

43DM6

NUT

25

4CM1080

SCREW

26

51DM10

NUT

27

58G816

SCREW

28

15KB0608

FITTING, HYD CONNECTOR

28

79K8

O RING 10

Выбрано товаров: 33
