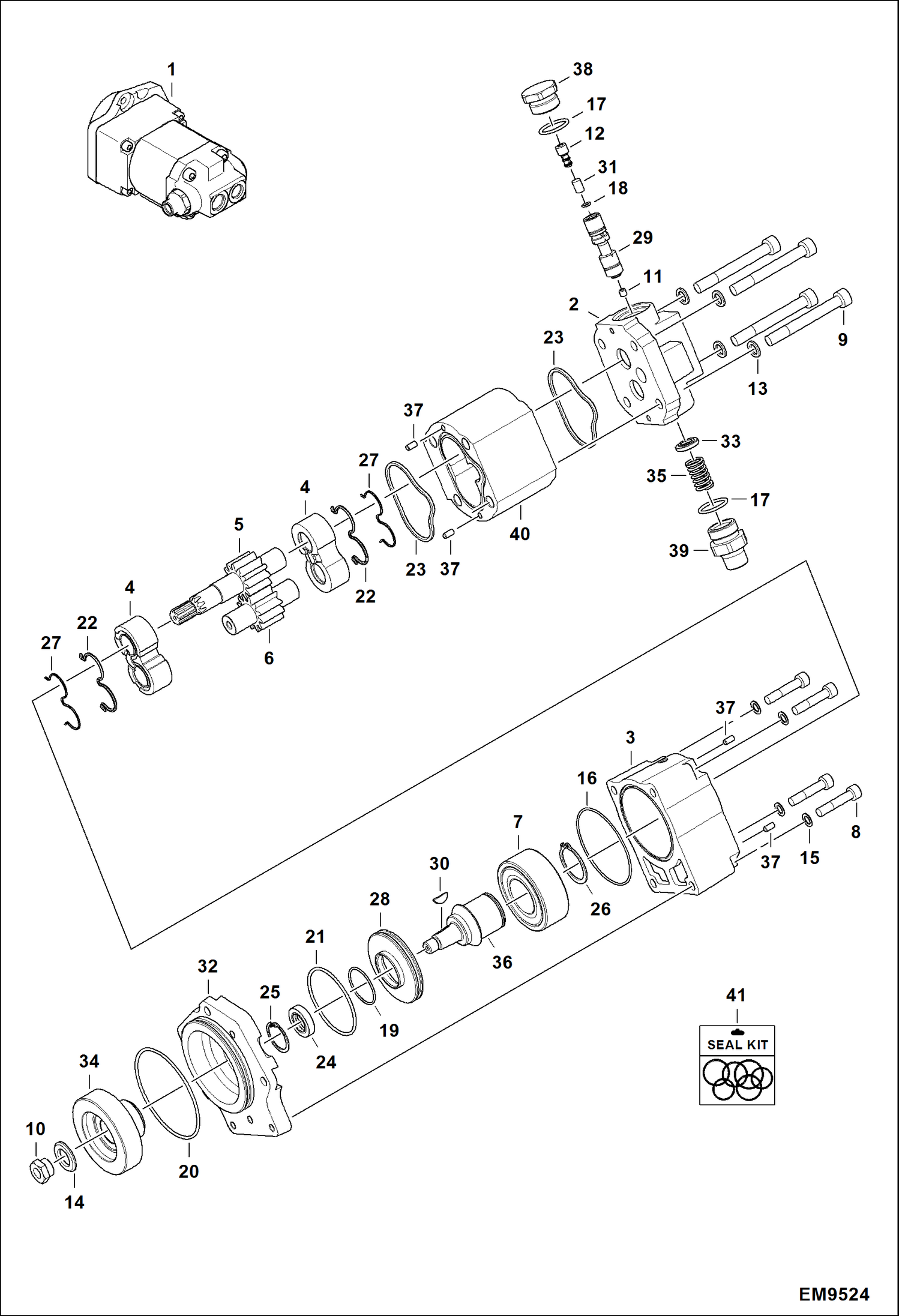

Запчасти Bobcat TL470HF FAN PUMP HYDRAULIC SYSTEM

1

7214873

PUMP, FAN Ref. 2-40

2

COVER, REAR END NLA - Order Ref. 1

3

HOUSING NLA - Order Ref. 1

4

PLATE, THRUST NLA - Order Ref. 1

5

SHAFT, DRIVE NLA - Order Ref. 1

6

GEAR, DRIVE NLA - Order Ref. 1

7

BEARING, BALL NLA - Order Ref. 1

8

BOLT NLA - Order Ref. 1

9

BOLT NLA - Order Ref. 1

10

NUT NLA - Order Ref. 1

11

PLUG NLA - Order Ref. 1

12

VALVE NLA - Order Ref. 1

13

WASHER NLA - Order Ref. 1

14

WASHER NLA - Order Ref. 1

15

WASHER NLA - Order Ref. 1

16

SEAL NLA - Order Ref 41

17

O-RING NLA - Order Ref 41

18

SEAL NLA - Order Ref 41

19

O-RING NLA - Order Ref 41

20

SEAL NLA - Order Ref 41

21

SEAL NLA - Order Ref 41

22

SEAL NLA - Order Ref 41

23

SEAL NLA - Order Ref 41

24

SEAL, SHAFT NLA - Order Ref 41

25

RING, SNAP NLA - Order Ref. 1

26

RING, SNAP NLA - Order Ref. 1

27

SEAL NLA - Order Ref 41

28

RING NLA - Order Ref. 1

29

SPOOL NLA - Order Ref. 1

30

KEY NLA - Order Ref. 1

31

FILTER NLA - Order Ref. 1

32

FLANGE NLA - Order Ref. 1

33

SPRING NLA - Order Ref. 1

34

GEAR NLA - Order Ref. 1

35

SPRING NLA - Order Ref. 1

36

SUPPORT, SHAFT NLA - Order Ref. 1

37

PIN NLA - Order Ref. 1

38

PLUG NLA - Order Ref. 1

39

PLUG NLA - Order Ref. 1

40

HOUSING NLA - Order Ref. 1

41

7024653

KIT, SEAL Ref. 16-24 & 27
