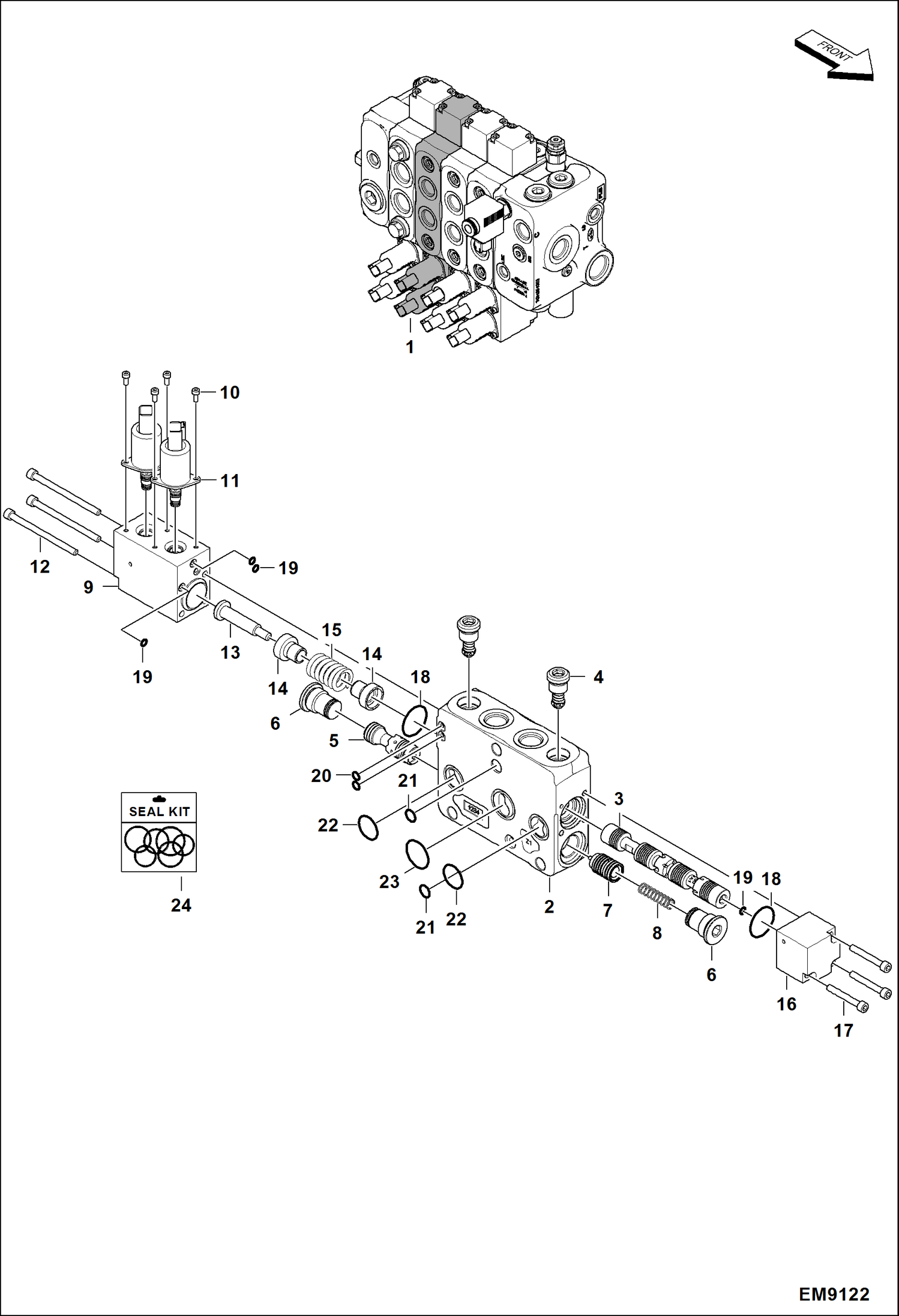

Запчасти Bobcat TL470HF CONTROL VALVE (Telescoping Section) HYDRAULIC SYSTEM

1

7023743

SECTION, VALVE telescoping - Ref. 2-23

2

7022375

SECTION, VALVE W/Ref. 24

3

7023732

SPOOL

4

7022374

KIT, PORT RELIEF

5

7022378

KIT, SPOOL Ref. 6-8

6

PLUG NLA - Order Ref. 5

7

SPOOL NLA - Order Ref. 5

8

SPRING NLA - Order Ref. 5

9

7022373

KIT, CONTROL Ref. 10-19

10

SCREW NLA - Order Ref. 9

11

7022675

KIT, SOLENOID

12

BOLT NLA - Order Ref. 9

13

SCREW NLA - Order Ref. 9

14

RETAINER, SPRING NLA - Order Ref. 9

15

SPRING NLA - Order Ref. 9

16

COVER NLA - Order Ref. 9

17

BOLT NLA - Order Ref. 9

18

O-RING NLA - Order Ref. 9

19

O-RING NLA - Order Ref. 9

20

O-RING NLA - Order Ref. 24

21

O-RING NLA - Order Ref. 24

22

O-RING NLA - Order Ref. 24

23

O-RING NLA - Order Ref. 24

24

7022377

KIT, SEAL Ref. 20-23
