CONTROL VALVE

Запчасти Bobcat TL470HF CONTROL VALVE HYDRAULIC SYSTEM

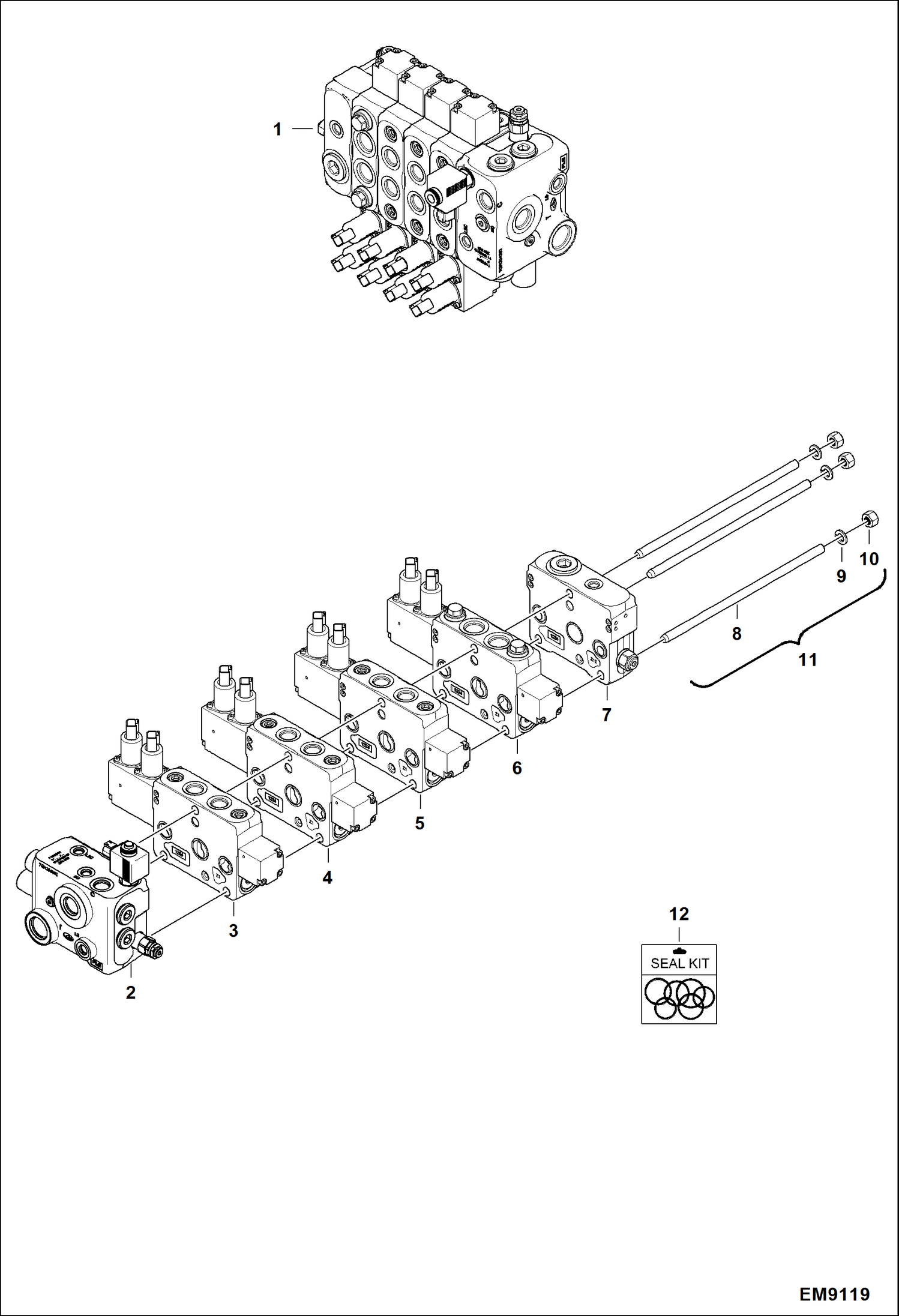

Схема запчастей Bobcat TL470HF - CONTROL VALVE HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7163244

VALVE, CONTROL Ref. 2-10

2

7025106

SECTION, VALVE See Illustration CONTROL VALVE/ EM9125 inlet Was 7024010 - A

3

7023741

SECTION, VALVE See Illustration CONTROL VALVE/ EM9120 lifting

4

7023742

SECTION, VALVE See Illustration CONTROL VALVE/ EM9121 tilting

5

7023743

SECTION, VALVE See Illustration CONTROL VALVE/ EM9122 telescoping

6

7023744

SECTION, VALVE See Illustration CONTROL VALVE/ EM9123 auxiliary

7

7022394

KIT, OUTLET SECTION See Illustration CONTROL VALVE/ EM9124 outlet

8

ROD, TIE NLA - Order Ref. 11

9

WASHER NLA - Order Ref. 11

10

BOLT NLA - Order Ref. 11

11

7023727

KIT, BOLT Ref. 8-10
