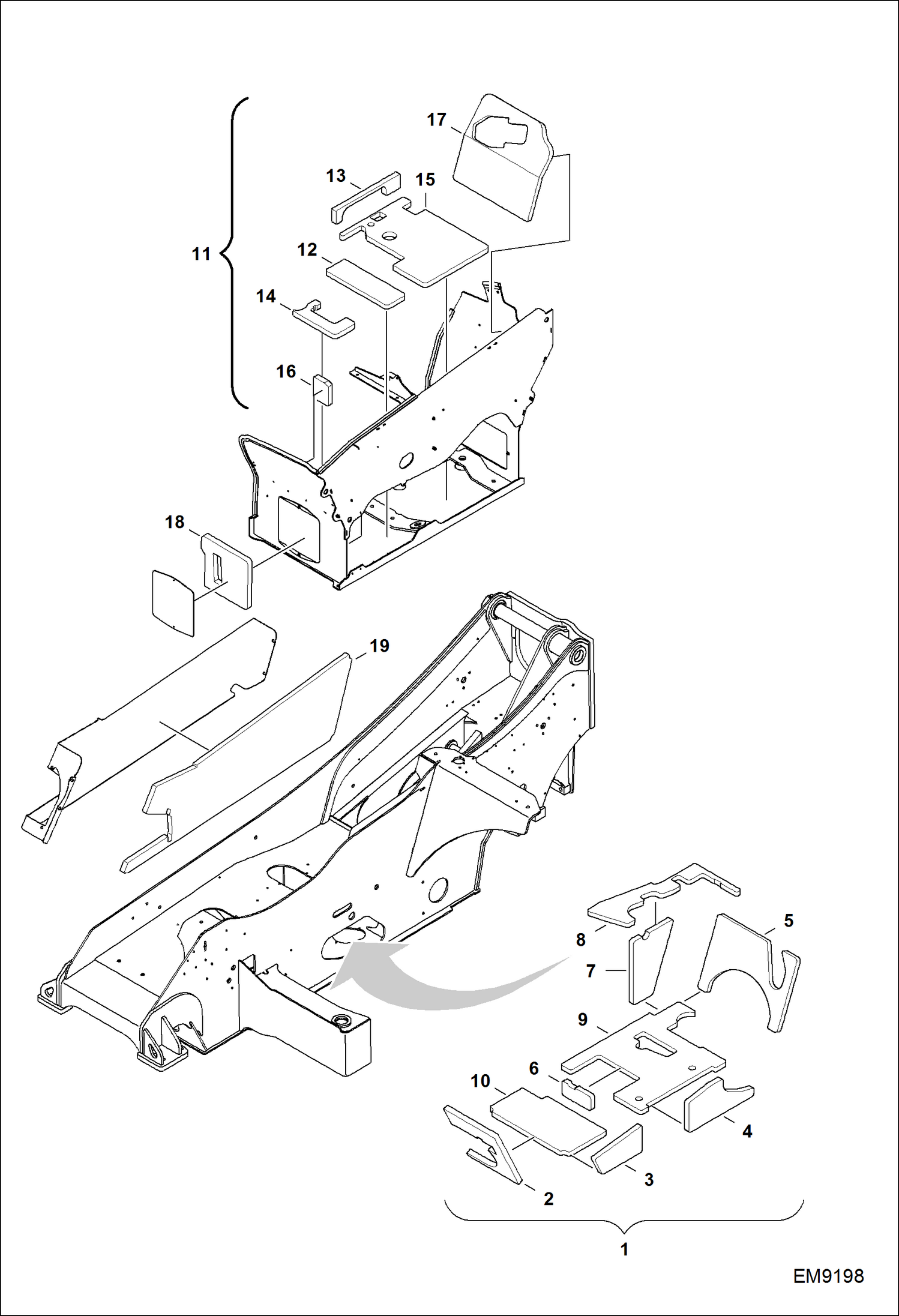

Запчасти Bobcat TL470HF ENGINE BASKET & GEAR (Insulation) MAIN FRAME

1

6934315

INSULATION, FRAME ASSY Ref. 3-6, 12 & 15-18

2

6934316

INSULATION, BASKET ASSY Ref. 7-8, 10-11, 13 & 14

3

INSULATION, GEAR NSS - Order Ref. 1

4

INSULATION, GEAR NSS - Order Ref. 1

5

INSULATION, GEAR NSS - Order Ref. 1

6

INSULATION, GEAR NSS - Order Ref. 1

7

INSULATION, BASKET NSS - Order Ref. 2

8

INSULATION, BASKET NSS - Order Ref. 2

9

7204079

INSULATION, COVER

10

INSULATION, BASKET NSS - Order Ref. 2

11

INSULATION, BASKET NSS - Order Ref. 2

12

INSULATION, GEAR NSS - Order Ref. 1

13

INSULATION, BASKET NSS - Order Ref. 2

14

INSULATION, BASKET NSS - Order Ref. 2

15

INSULATION, GEAR NSS - Order Ref. 1

16

INSULATION, GEAR NSS - Order Ref. 1

17

INSULATION, GEAR NSS - Order Ref. 1

18

INSULATION, GEAR NSS - Order Ref. 1

19

7217862

INSULATION, COVER
