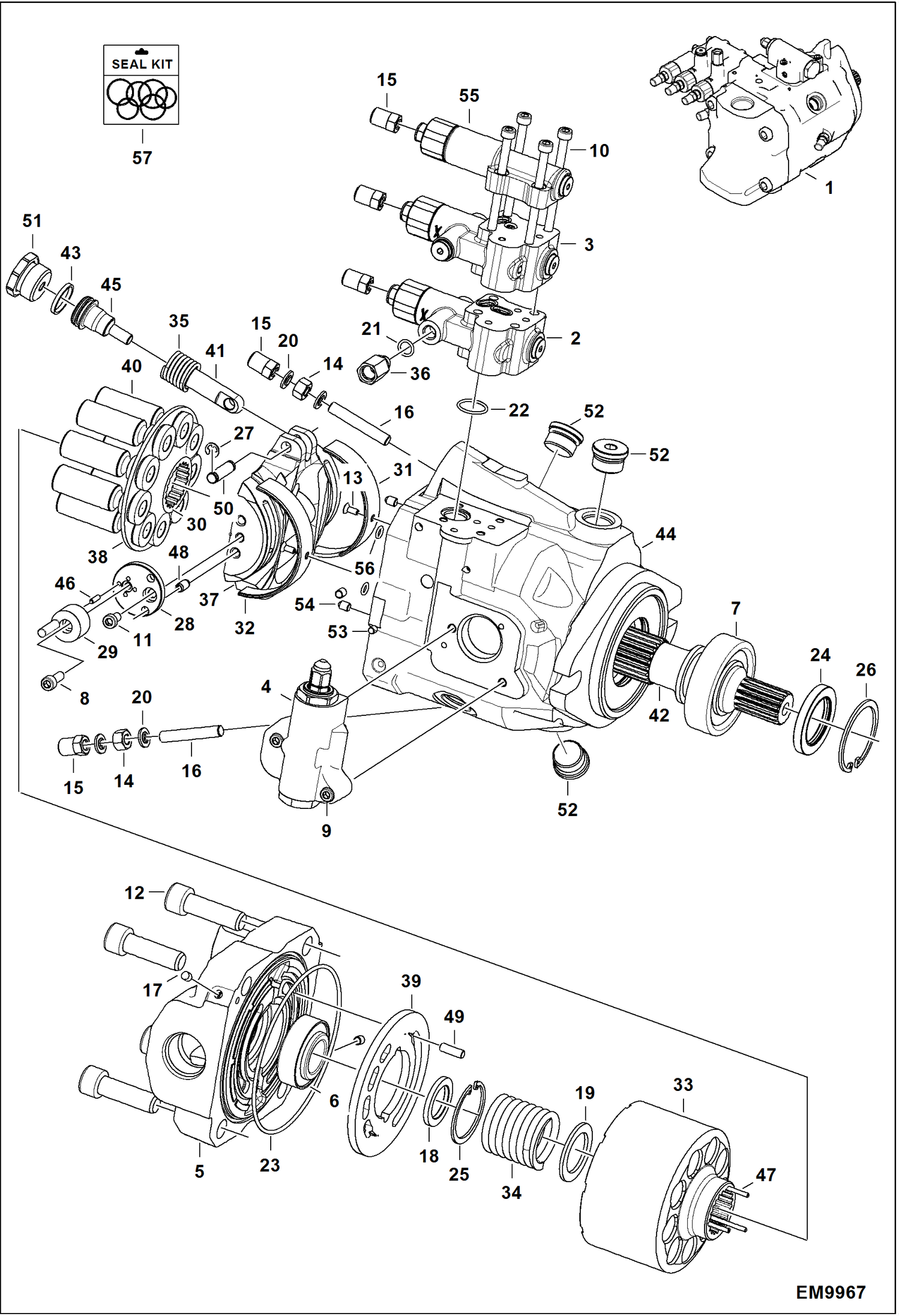

Запчасти Bobcat TL470HF PISTON PUMP HYDRAULIC SYSTEM

1

7196191

PUMP, PISTON Ref. 2-56

2

7023931

COMPENSATOR, PRIMARY FLOW

3

7023932

COMPENSATOR, SECONDARY FLOW

4

7028501

LIMITER, TORQUE

5

COVER NLA - Order Ref. 1

6

BEARING NLA - Order Ref. 1

7

BEARING NLA - Order Ref. 1

8

SCREW NLA - Order Ref. 1

9

SCREW NLA - Order Ref. 1

10

SCREW NLA - Order Ref. 1

11

SCREW NLA - Order Ref. 1

12

SCREW NLA - Order Ref. 1

13

SCREW NLA - Order Ref. 1

14

NUT NLA - Order Ref. 1

15

NUT NLA - Order Ref. 1

16

SCREW NLA - Order Ref. 1

17

SCREW NLA - Order Ref. 1

18

WASHER NLA - Order Ref. 1

19

WASHER NLA - Order Ref. 1

20

WASHER NLA - Order Ref. 1

21

O-RING NLA - Order Ref. 1

22

O-RING NLA - Order Ref. 1

23

O-RING NLA - Order Ref. 1

24

SEAL NLA - Order Ref. 1

25

RING, RETAINING NLA - Order Ref. 1

26

RING, RETAINING NLA - Order Ref. 1

27

RING NLA - Order Ref. 1

28

SUPPORT NLA - Order Ref. 1

29

DRIVE, ECCENTRIC NLA - Order Ref. 1

30

RING, SPLINED NLA - Order Ref. 1

31

RING NLA - Order Ref. 1

32

RING NLA - Order Ref. 1

33

BLOCK, CYLINDER NLA - Order Ref. 1

34

SPRING, PISTON NLA - Order Ref. 1

35

SPRING, COUNTERBALANCING NLA - Order Ref. 1

36

CONNECTOR NLA - Order Ref. 1

37

PLATE, SWASH NLA - Order Ref. 1

38

PLATE, PISTON NLA - Order Ref. 1

39

PLATE, VALVE NLA - Order Ref. 1

40

PISTON NLA - Order Ref. 1

41

SHAFT NLA - Order Ref. 1

42

SHAFT NLA - Order Ref. 1

43

SEGMENT NLA - Order Ref. 1

44

BODY NLA - Order Ref. 1

45

PISTON NLA - Order Ref. 1

46

PIN, DOWEL NLA - Order Ref. 1

47

DOWEL NLA - Order Ref. 1

48

PIN, DOWEL NLA - Order Ref. 1

49

PIN, DOWEL NLA - Order Ref. 1

50

DOWEL NLA - Order Ref. 1

51

PLUG NLA - Order Ref. 1

52

PLUG NLA - Order Ref. 1

53

PLUG NLA - Order Ref. 1

54

PLUG NLA - Order Ref. 1

55

7023930

COMPENSATOR, PRESSURE

56

O-RING NLA - Order Ref. 1

57

7024096

KIT, SEAL
