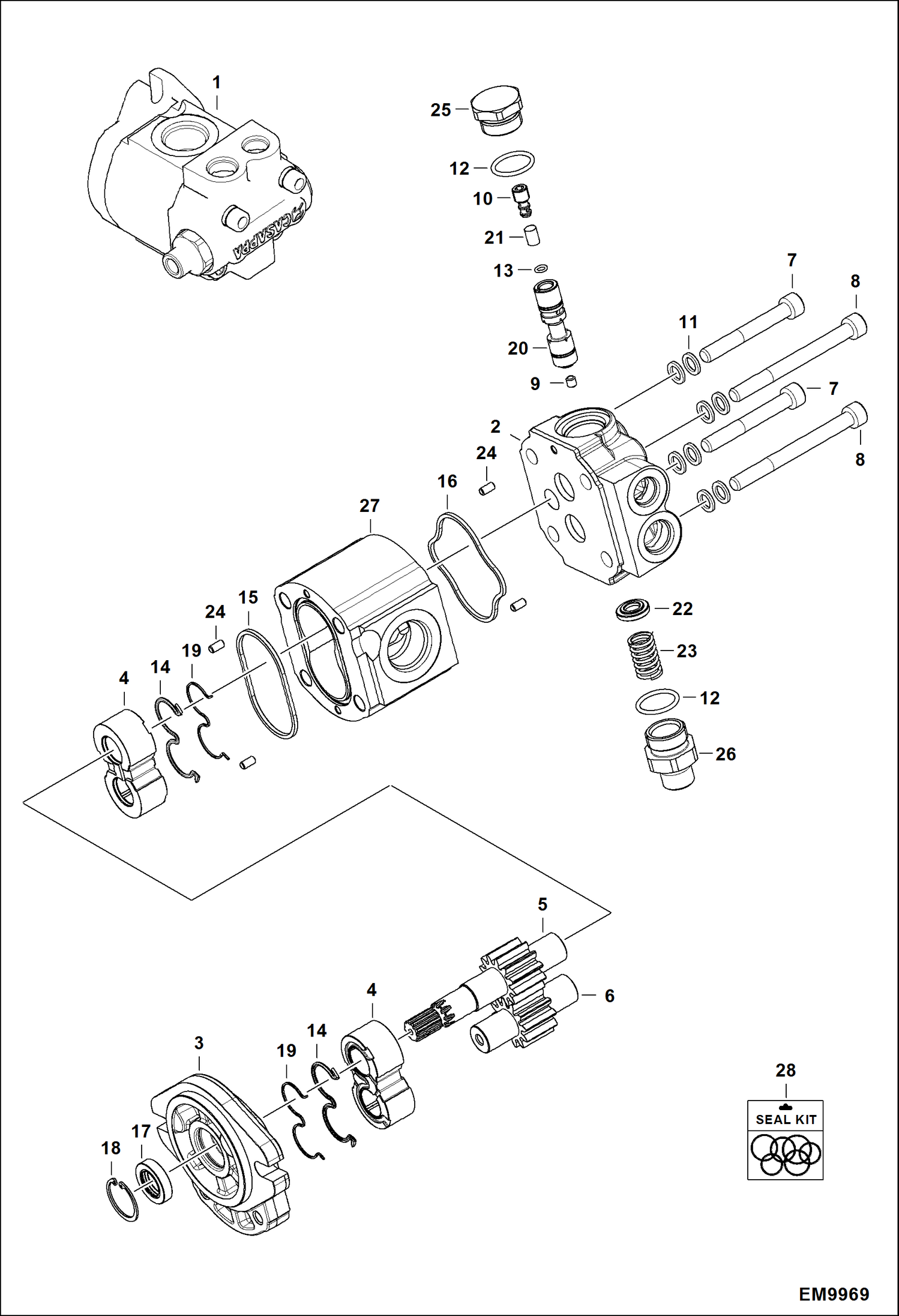

Запчасти Bobcat TL470HF FAN PUMP HYDRAULIC SYSTEM

1

7225629

PUMP, FAN Ref. 2-27

2

COVER, REAR END NLA - Order Ref. 1

3

COVER, FRONT NLA - Order Ref. 1

4

PLATE, THRUST NLA - Order Ref. 1

5

SHAFT, DRIVE NLA - Order Ref. 1

6

GEAR, DRIVEN NLA - Order Ref. 1

7

BOLT NLA - Order Ref. 1

8

BOLT NLA - Order Ref. 1

9

PLUG NLA - Order Ref. 1

10

VALVE NLA - Order Ref. 1

11

WASHER NLA - Order Ref. 1

12

O-RING NLA - Order Ref 28

13

SEAL NLA - Order Ref 28

14

SEAL NLA - Order Ref 28

15

SEAL NLA - Order Ref 28

16

SEAL NLA - Order Ref 28

17

SEAL, SHAFT NLA - Order Ref 28

18

RING, SNAP NLA - Order Ref. 1

19

SEAL NLA - Order Ref 28

20

SPOOL NLA - Order Ref. 1

21

FILTER NLA - Order Ref. 1

22

SPRING NLA - Order Ref. 1

23

SPRING NLA - Order Ref. 1

24

PIN NLA - Order Ref. 1

25

PLUG NLA - Order Ref. 1

26

PLUG NLA - Order Ref. 1

27

HOUSING NLA - Order Ref. 1

28

7028503

KIT, SEAL Ref. 12-17 & 19
