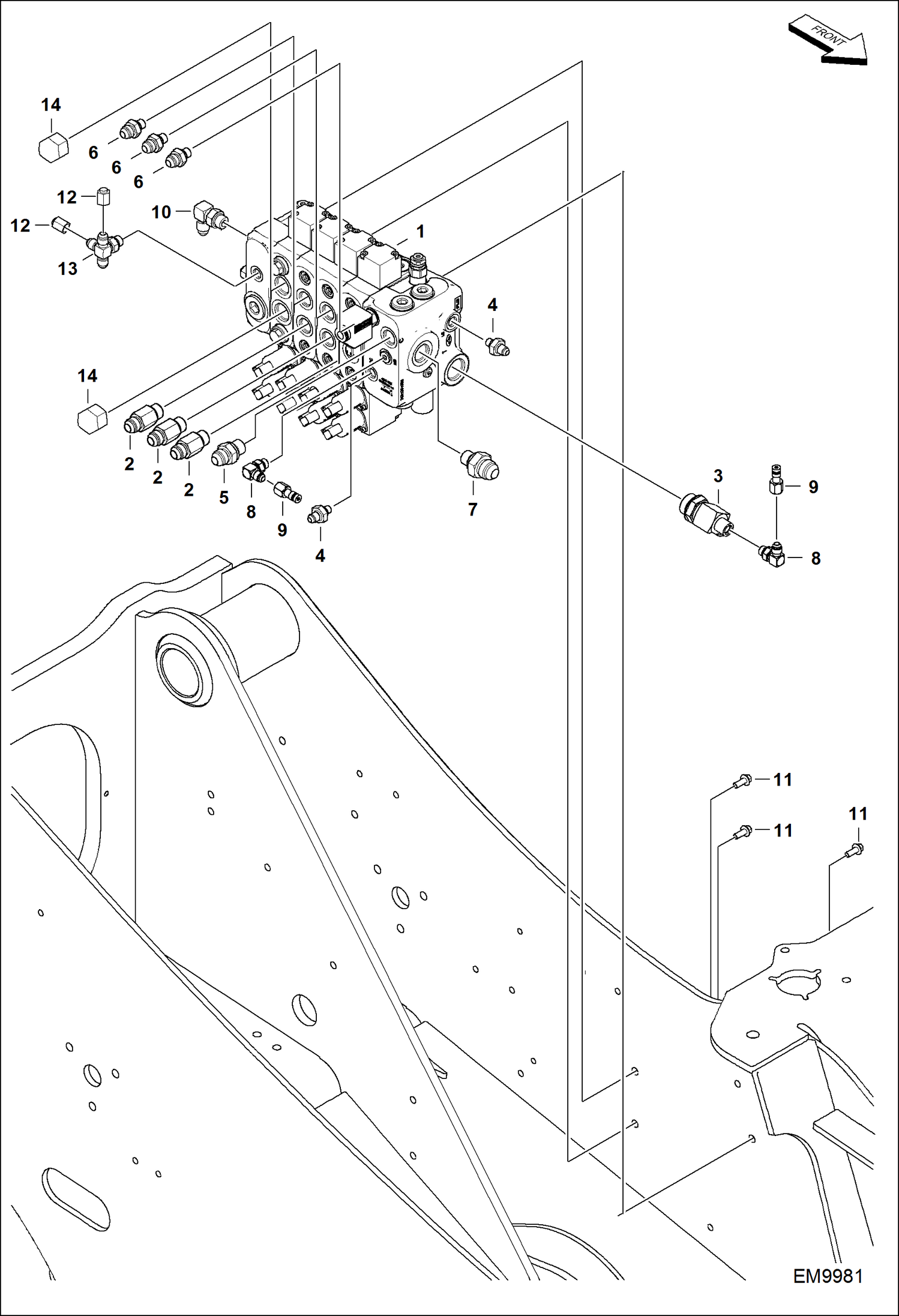

Запчасти Bobcat TL470HF HYDRAULIC CIRCUITRY (Control Valve) HYDRAULIC SYSTEM

1

7163244

VALVE, CONTROL See Illustration CONTROL VALVE/ EM9119

2

7169182

FITTING, HYD

2

79K10

O RING 10

3

6731527

TEE

4

15KB0406

FTG HYD S CONNECTOR

4

79K6

O RING 10

5

15KB0610

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

15KB1010

FITTING, HYD CONNECTOR

6

79K10

O RING 10

7

15KB1212

FITTING, HYD CONNECTOR

7

79K12

O RING 10

8

17KB0806

FITTING, HYD ELBOW

8

79K6

O RING 10

9

7180301

COUPLER, HYD

10

18KB1212

FITTING, HYD ELBOW

11

29CM1025

BOLT

12

36K5

CAP

13

7192055

FITTING, HYD CROSS

13

79K6

O RING 10

14

36K8

CAP

15

17KB0406

FITTING, HYD ELBOW

15

79K6

O RING 10
