Запчасти Bobcat TL470 TILT CYLINDER HYDRAULIC SYSTEM

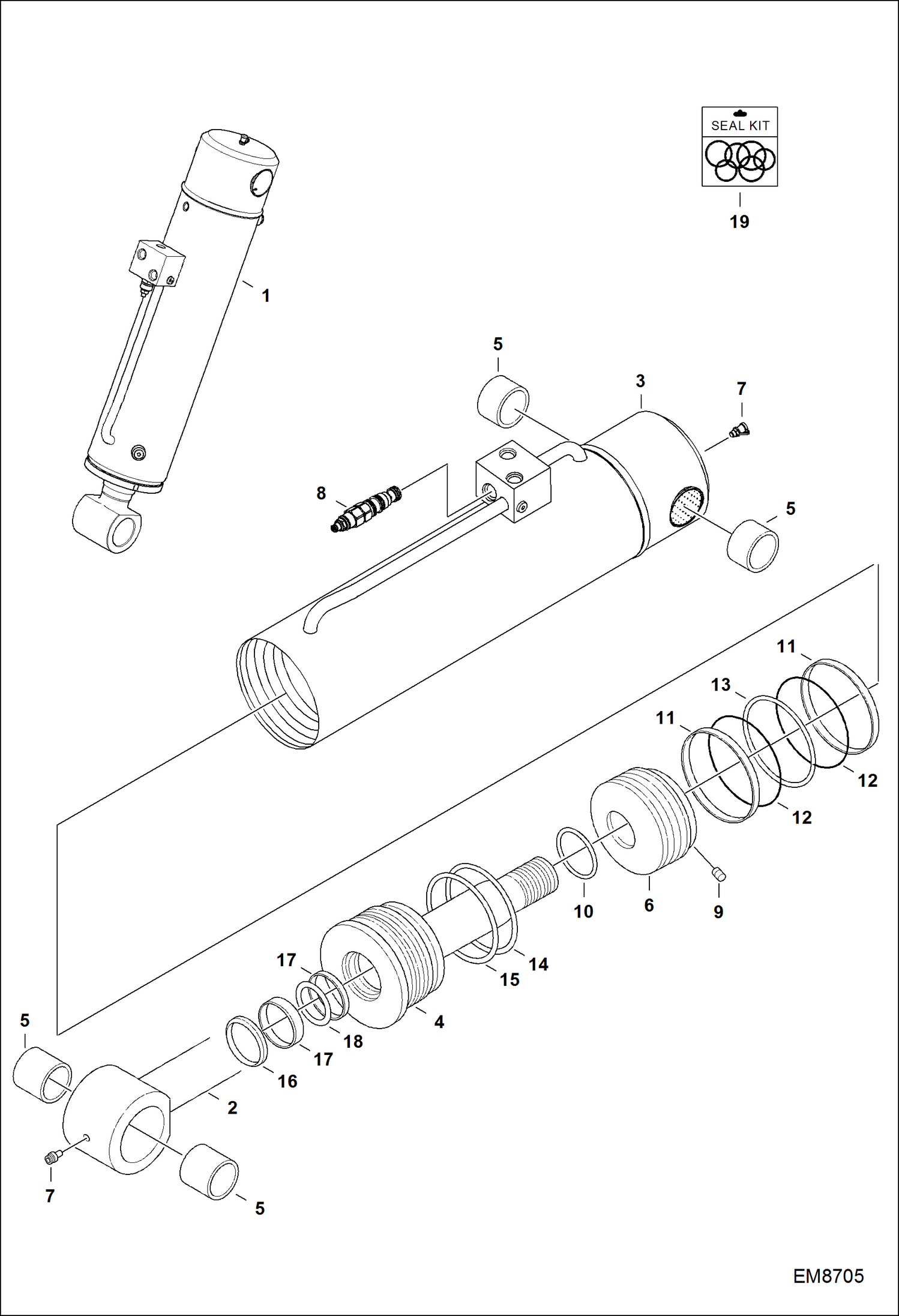

Схема запчастей Bobcat TL470 - TILT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7163243

CYLINDER, TILT Ref. 2-18

2

7022413

KIT, ROD Ref. 6

3

7022414

KIT, CASING Ref. 4

4

7022415

HEAD, CYLINDER

5

7022407

BUSHING

6

7022416

PISTON

7

7022438

GREASER

8

6912085

VALVE

9

SCREW, SET NLA - Order Ref. 1

10

O-RING NLA - Order Ref. 19

11

RING, WEAR NLA - Order Ref. 19

12

RING, BACKUP NLA - Order Ref. 19

13

SEAL NLA - Order Ref. 19

14

O-RING NLA - Order Ref. 19

15

RING, BACKUP NLA - Order Ref. 19

16

WIPER NLA - Order Ref. 19

17

RING, WEAR NLA - Order Ref. 19

18

SEAL NLA - Order Ref. 19

19

7022219

KIT, SEAL Ref. 10-18

Выбрано товаров: 19
