Запчасти Bobcat TL470 LIFT CYLINDER HYDRAULIC SYSTEM

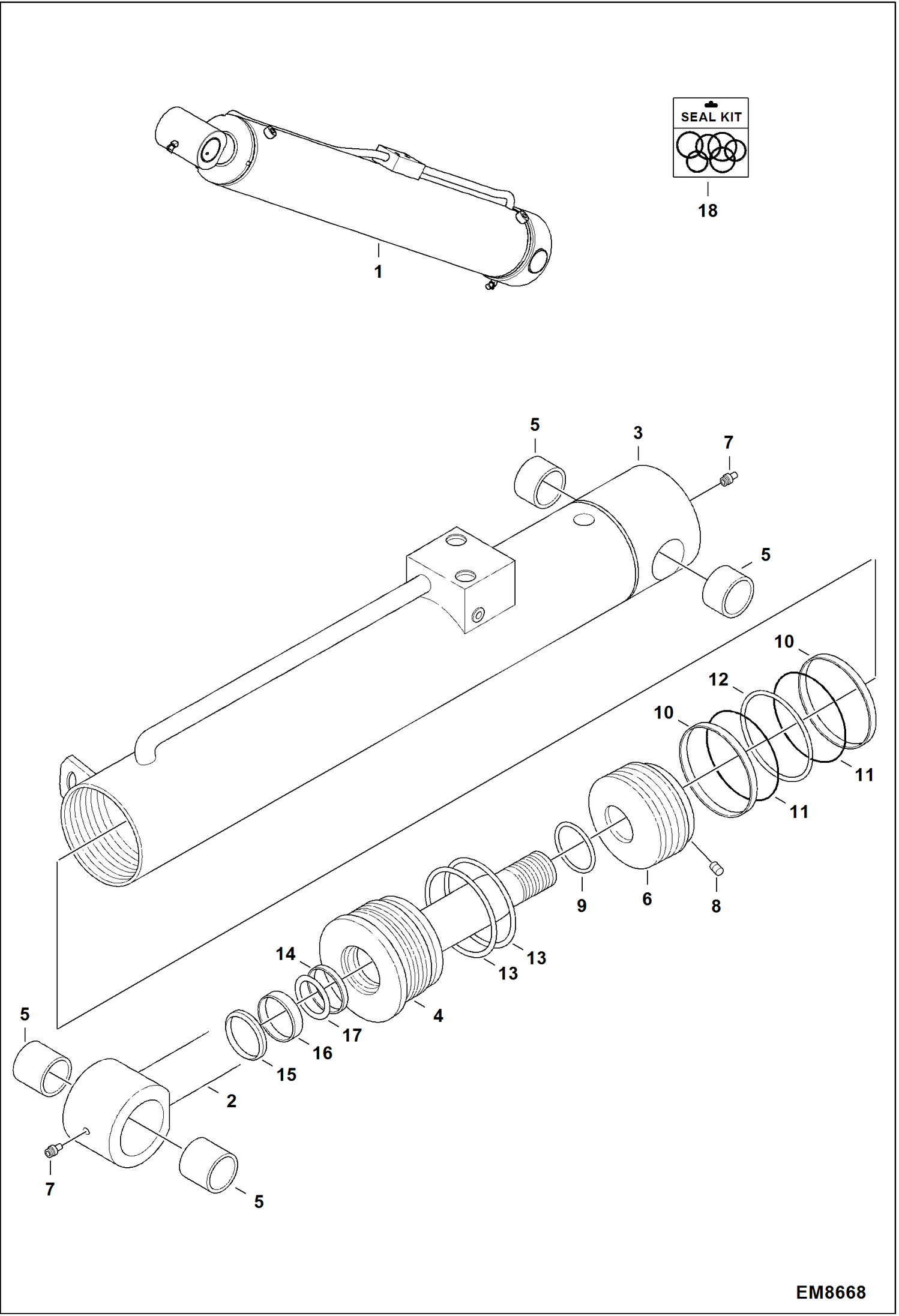

Схема запчастей Bobcat TL470 - LIFT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7163242

CYLINDER, LIFT Ref. 2-17

2

7022404

KIT, ROD W/Ref. 6

3

7022405

KIT, CASING W/Ref. 4

4

7022406

HEAD, CYLINDER

5

7022407

BUSHING

6

7022408

PISTON

7

7022437

GREASER

8

SCREW, SET NLA - Order Ref. 1

9

O-RING NLA - Order Ref. 18

10

RING, WEAR NLA - Order Ref. 18

11

RING, BACKUP NLA - Order Ref. 18

12

SEAL NLA - Order Ref. 18

13

O-RING NLA - Order Ref. 18

14

RING, WEAR NLA - Order Ref. 18

15

SEAL NLA - Order Ref. 18

16

RING, WEAR NLA - Order Ref. 18

17

WIPER NLA - Order Ref. 18

18

7022220

KIT, SEAL Ref. 9-17

Выбрано товаров: 18
