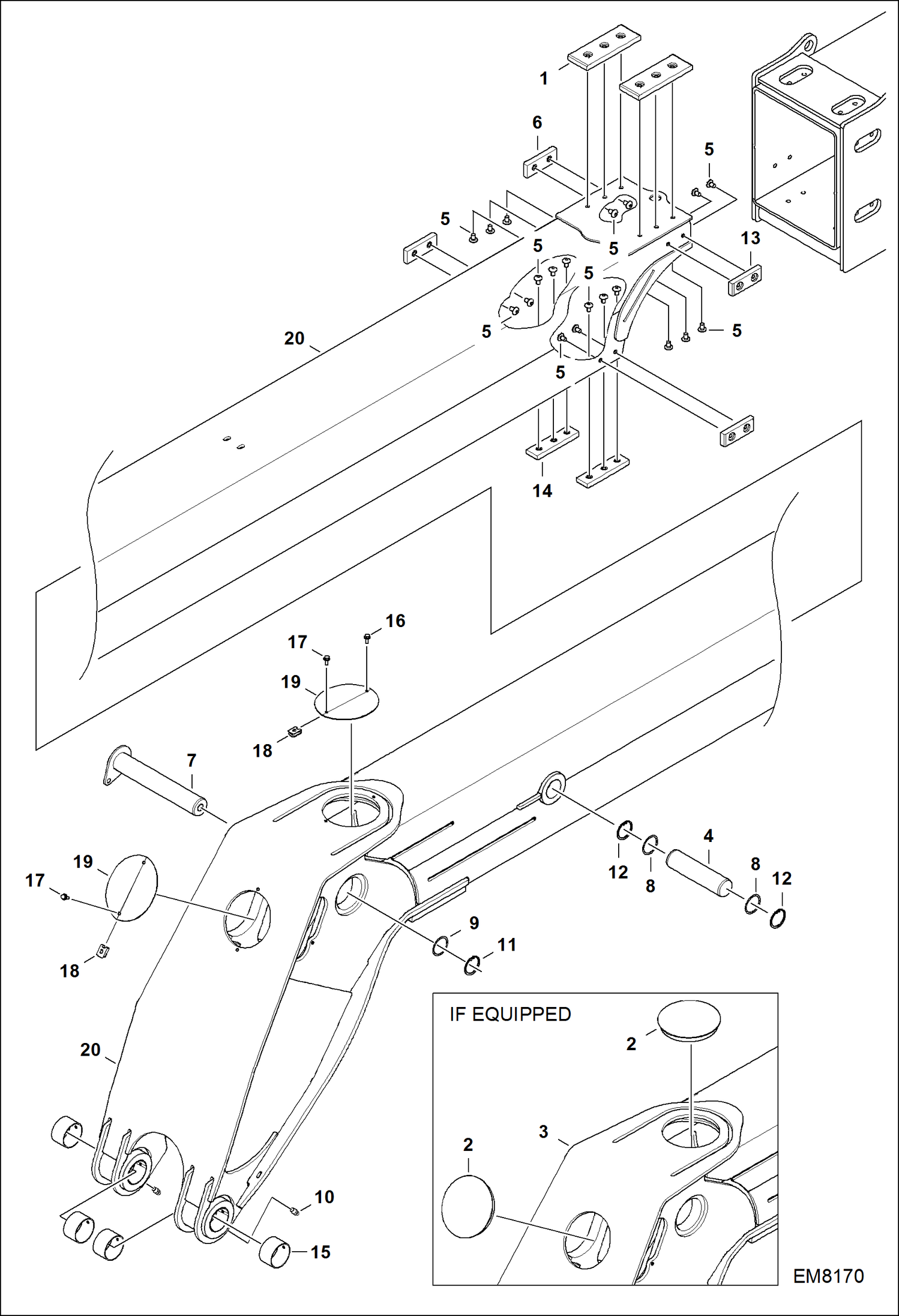

Запчасти Bobcat TL470 END BOOM MAIN FRAME

1

7140199

PAD 15 mm (0,59'') - black

1

7181201

PAD 16 mm (0,63'') - yellow

1

7181202

PAD 17 mm (0,67'') - white (natural)

1

7181203

PAD 18 mm (0,70'') - green

1

7184520

PAD 19 mm (0,75'') - red

2

7171277

COVER, PLASTIC

3

7149226-GB

BOOM, END W/Ref. 15

4

7161538

PIN

5

7184546

SCREW

6

7140201

PAD 15 mm (0,59'') - black

6

7181204

PAD 16 mm (0,63'') - yellow

6

7181205

PAD 17 mm (0,67'') - white (natural)

6

7181206

PAD 18 mm (0,70'') - green

6

7184519

PAD 19 mm (0,75'') - red

7

7199040

PIN

8

13EM4220

WASHER, SHIM

9

13EM50220

WASHER

10

1HM8

FTG Grease Straight

11

6JM50

RING

12

7JM52

SNAP RING

13

7140201

PAD 15 mm (0,59'') - black

14

7181202

PAD 17 mm (0,67'') - white (natural)

15

7149052

BUSHING
