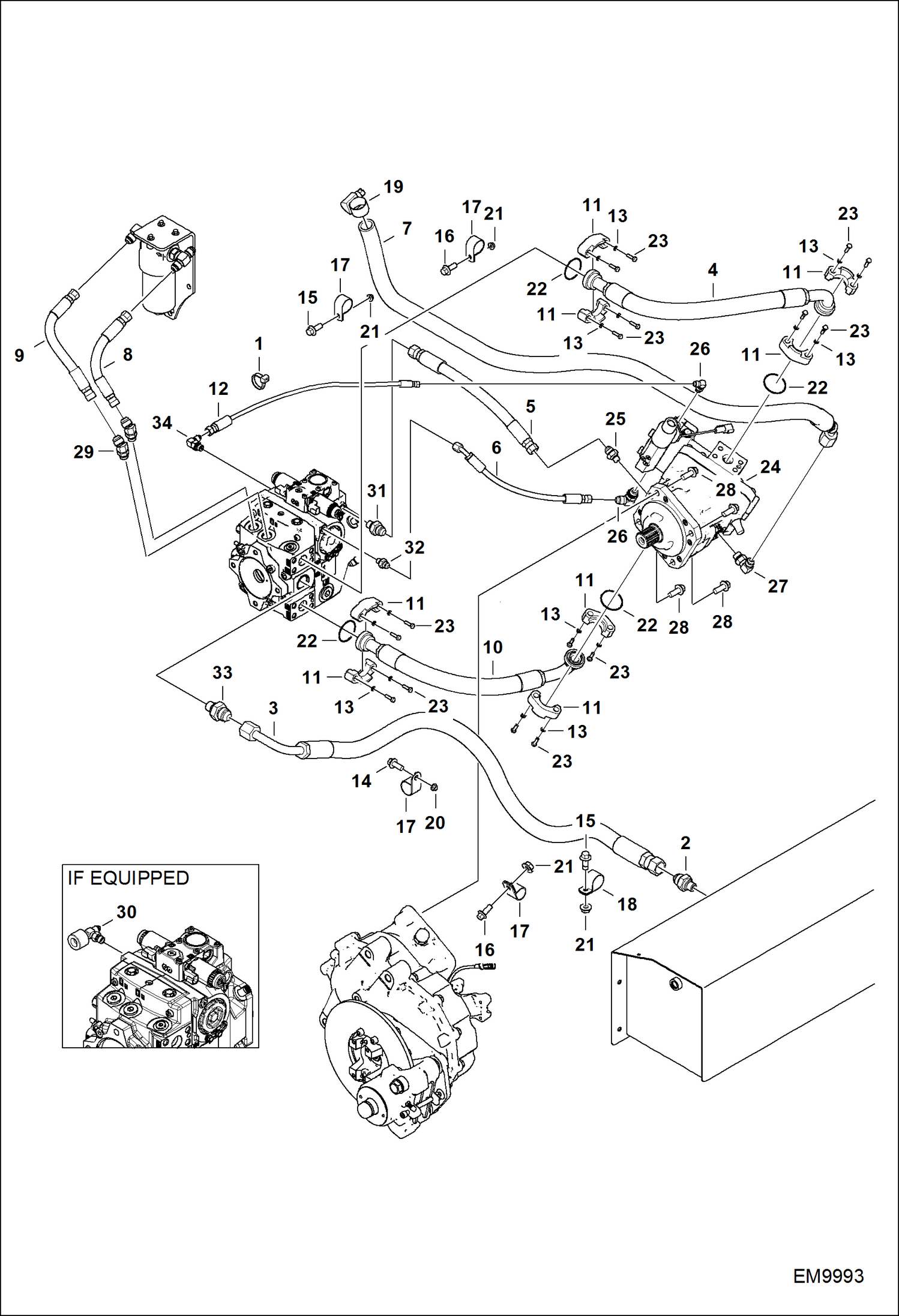

Запчасти Bobcat TL470 HYDROSTATIC CIRCUITRY (Hydrostatic Motor) HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

15KB1612

FITTING, HYD CONNECTOR

2

79K12

O RING 10

3

7230760

HOSE, HYD

4

7159330

HOSE, HYD

5

7159335

HOSE, HYD

6

7159342

HOSE, HYD

7

7159988

HOSE, HYD

8

7236491

HOSE, HYD Was 7175369 - B

9

7175370

HOSE, HYD

10

7181200

HOSE, HYD

11

7195383

FLANGE

12

7199744

HOSE, HYD

13

18EM1224

WASHER

14

29CM1030

BOLT

15

29CM825

BOLT

16

29CM835

BOLT

17

30H60

CLIP

18

30H94

COLLAR Was 30H88 - A

19

42HL175

CLAMP, HOSE

20

43DM10

NUT

21

43DM8

NUT

22

58K219

O RING 10

23

7CM1240

SCREW

24

7190063

MOTOR, HYDROSTATIC See Illustration HYDROSTATIC MOTOR/ EM9443 20 km/h & 25 km/h

24

7166076

MOTOR, HYDROSTATIC See Illustration HYDROSTATIC MOTOR/ EM9013 30 km/h

24

7159441

MOTOR, HYDROSTATIC See Illustration HYDROSTATIC MOTOR/ EM9013 40 km/h

25

15KB1012

FITTING, HYD CONNECTOR

25

79K12

O RING 10

26

17KB0406

FITTING, HYD ELBOW

26

79K6

O RING 10

27

17KB1212

FITTING, HYD ELBOW

27

79K12

O RING 10

28

29CM1240

SCREW

29

18KB0810

FITTING, HYD ELBOW

29

79K10

O RING 10

30

7201932

FITTING, HYD

30

79K4

O RING 10

31

15KB1010

FITTING, HYD CONNECTOR

31

79K10

O RING 10

32

15KB0404

FTG HYD S Connector

32

79K4

O RING 10

33

15KB1616

FITTING, HYD CONNECTOR

33

79K16

O RING 10
