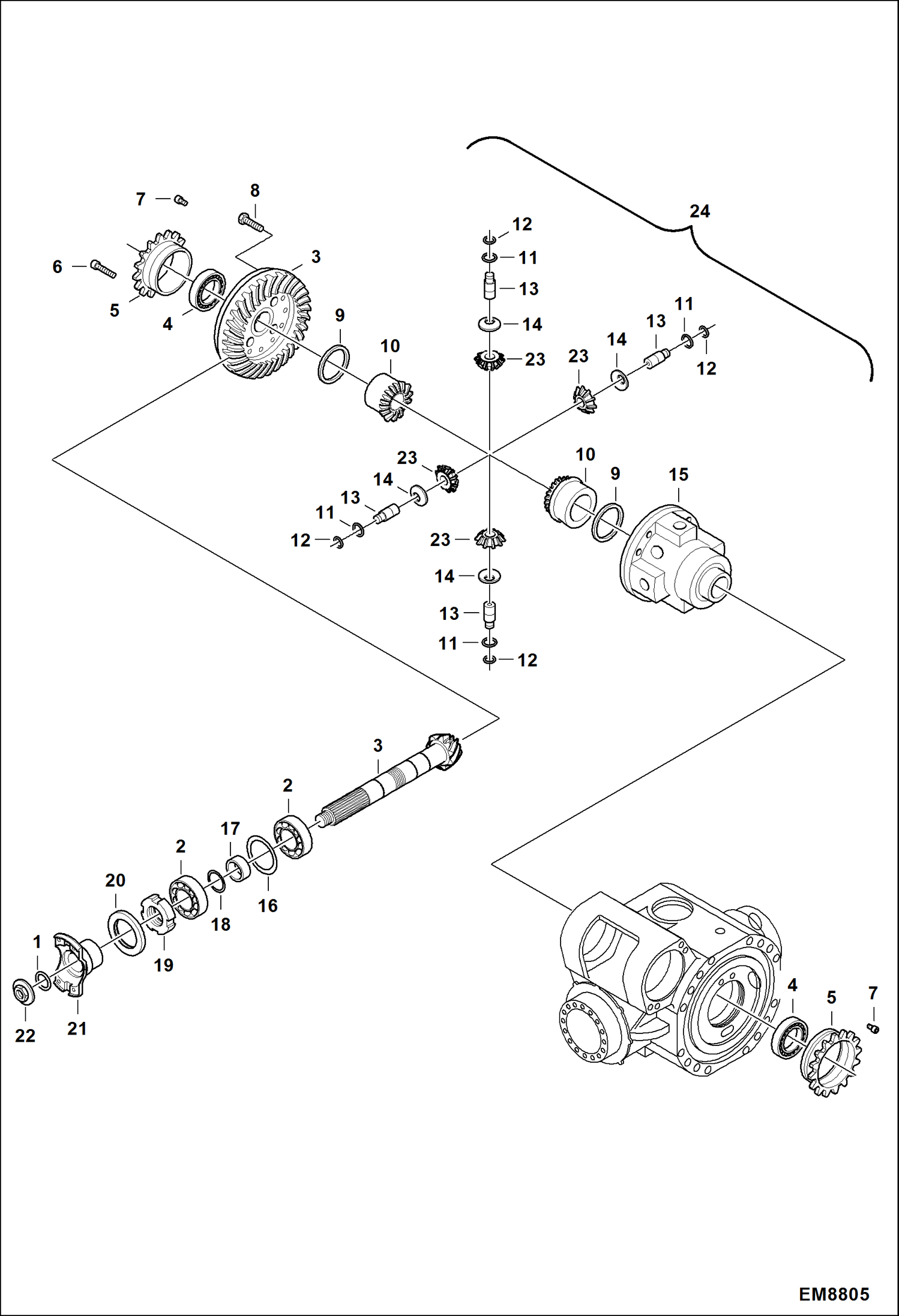

Запчасти Bobcat TL470 REAR AXLE (Differential) DRIVE SYSTEM

1

6912855

O'RING

2

6912873

BEARING

3

7017794

GEAR, BEVEL

4

6912872

BEARING

5

6912832

NUT

6

6912889

SCREW

7

6912891

SCREW

8

6912771

SCREW

9

6912869

WASHER

10

6912861

PLANETARY

11

6912809

SNAP RING

12

6912810

SNAP RING

13

7022723

SPINDLE

14

6912870

WASHER

15

6912805

DIFFERENTIAL CASE

16

6912794

SHIM 0,10MM 0,10 mm

16

6912793

SHIM 0,12MM 0,12 mm

16

6912791

SHIM 0,20MM 0,20 mm

16

6912792

SHIM 0,30MM 0,30 mm

17

6912836

SPACER

18

6912795

SHIM 0,15MM 0,15 mm

18

6912796

SHIM 0,20MM 0,20 mm

18

6912797

SHIM 0,40MM 0,40 mm

18

6912798

SHIM 0,50MM 0,50 mm

19

6646369

NUT Was 6912835 - A

20

7010890

SEAL

21

7017795

FLANGE

22

6912834

NUT

23

7010891

COMPLETE GEAR ASSY Was 6912874 - A

24

6912819

DIFFERENTIAL Ref. 9-15 & 23
