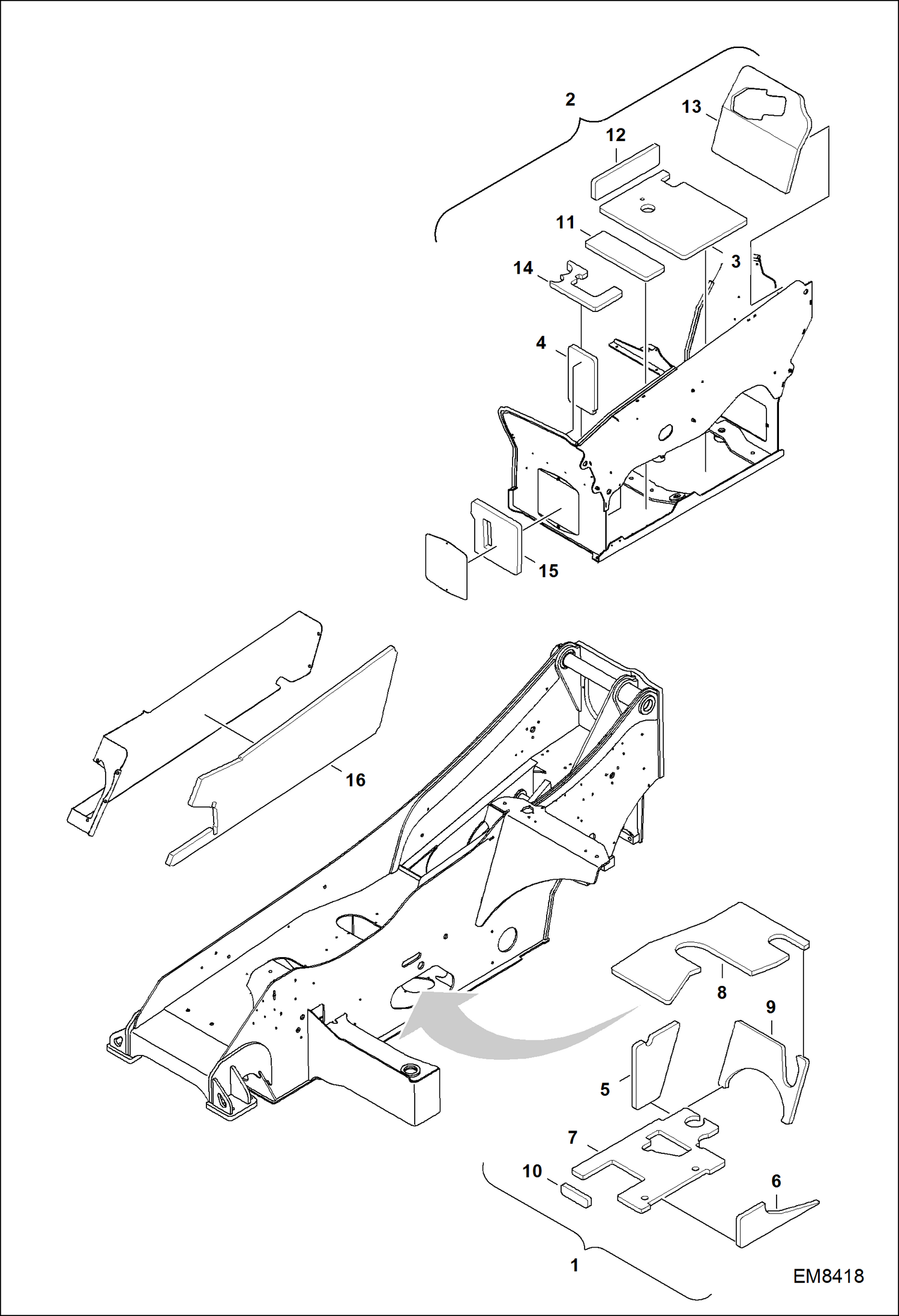

Запчасти Bobcat TL360 ENGINE BASKET & GEAR (Insulation) MAIN FRAME

1

6934154

KIT, INSULATION GEAR Ref. 5-10

2

6934155

KIT, INSULATION BASKET Ref. 3-4 & 11-14

3

INSULATION, BASKET NSS - Order Ref. 2

4

INSULATION, BASKET NSS - Order Ref. 2

5

INSULATION, GEAR NSS - Order Ref. 1

6

INSULATION, GEAR NSS - Order Ref.1

7

INSULATION, GEAR NSS - Order Ref. 1

8

INSULATION, GEAR NSS - Order Ref. 1

9

INSULATION, GEAR NSS - Order Ref. 1

10

INSULATION, GEAR NSS - Order Ref. 1

11

INSULATION, BASKET NSS - Order Ref. 2

12

INSULATION, BASKET NSS - Order Ref. 2

13

INSULATION, BASKET NSS - Order Ref. 2

14

INSULATION, BASKET NSS - Order Ref. 2

15

7204079

INSULATION, COVER

16

7217862

INSULATION, COVER
