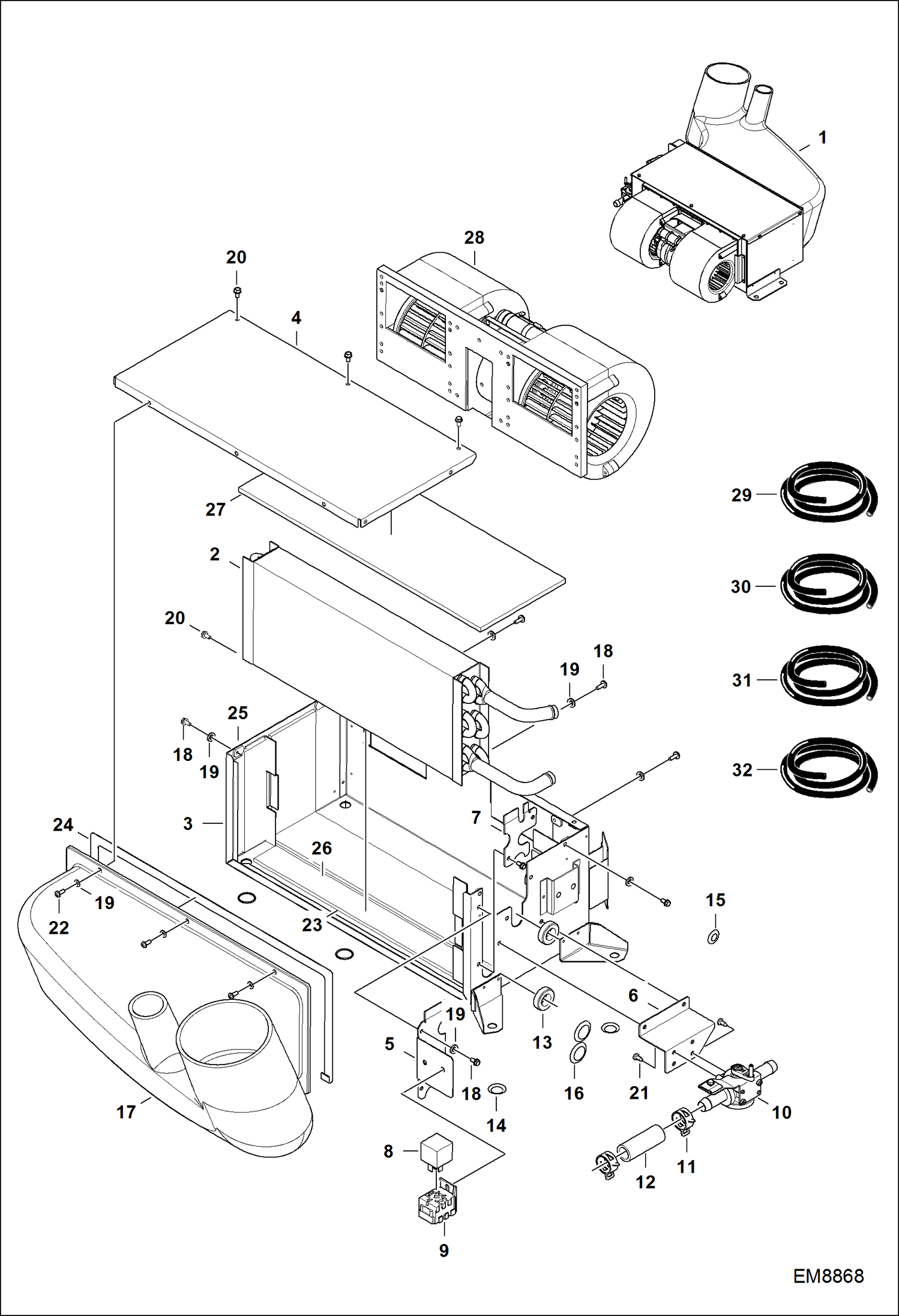

Запчасти Bobcat TL360 HEATER (Assembly) MAIN FRAME

1

7147039

HEATER, ASSEMBLY Ref. 2-28

2

7022125

COIL, HEATER

3

7022126

CASING

4

7022127

COVER, TOP

5

7022128

PLATE, SIDE

6

7022129

BRACKET, VALVE

7

7022130

PLATE, SIDE

8

7022131

RELAY, 12V

9

7022132

HARNESS

10

7217229

HEATER CONTROL VALVE Was 7010686 - A

11

6676629

CLAMP

12

6684944

HEATER HOSE

13

6684946

GROMMET

14

7010397

PLUG, FILL

15

7022133

PLUG

16

7022134

PLUG

17

7022135

COLLECTOR

18

7010401

SCREW

19

6693223

WASHER

20

6677580

SCREW

21

7022136

BOLT

22

7022137

BOLT

23

SEAL, FOAM NLA - 4,8 mm x 12,7 mm x 406,4 mm (3/16'' x 1/2'' x 16'') - Order Ref. 29

24

SEAL, FOAM NLA - 4,8 mm x 12,7 mm x 762 mm (3/16'' x 1/2'' x 30'') - Order Ref. 29

25

SEAL, FOAM NLA - 4,76 mm x 38 mm x 150 mm (3/15'' x 1,5'' x 5,9'') - Order Ref. 30

26

SEAL, FOAM NLA - 4,76 mm x 38 mm x 380 mm (3/16'' x 1/2'' x 15'') - Order Ref. 30

27

SEAL, FOAM NLA - 6,35 mm x 146 mm x 414 mm (1/4'' x 5,75'' x 16,3'') - Order Ref. 31

28

7022124

BLOWER, 12V

29

6696953

FOAM bulk - sold per foot

30

7022138

INSULATION bulk - sold per foot

31

6675614

INSULATION bulk - sold per foot
