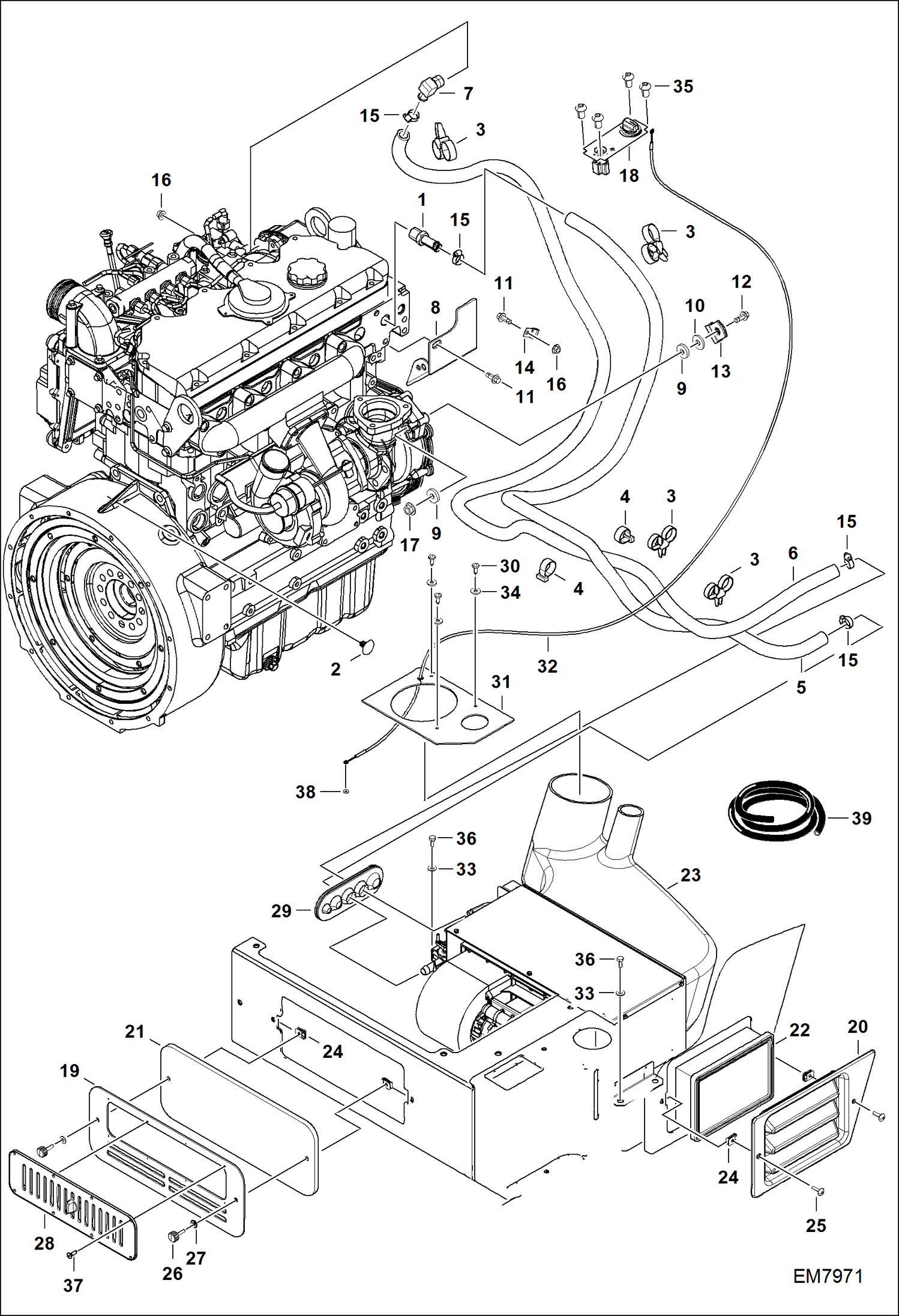

Запчасти Bobcat TL360 HEATER MAIN FRAME

1

666867

NIPPLE

2

6674895

RETAINER

3

6678668

STRAP, DUAL TIE

4

6678669

STRAP

5

HOSE, HEATER NLA - 2300 mm (90.55'') long - Order Ref. 38

6

HOSE, HEATER NLA - 2635 mm (103.74'') long - Order Ref. 38

7

7173468

ELBOW, HEATER

8

7177408

BELT, COVER

9

7193701

WASHER

10

17EM80

WASHER

11

29CM1030

BOLT

12

29CM880

BOLT

13

30H50

CLIP

14

31H49

CLAMP

15

42HS10

CLAMP

16

51DM10

NUT

17

51DM8

NUT

18

7146835

PANEL, CONTROL See Illustration HEATER/ EM8867

19

7146960

PLATE

20

7146961

COVER

21

7146965

FILTER, AIR

22

7146967

FILTER, AIR

23

7147039

HEATER, ASSEMBLY See Illustration HEATER/ EM8868

24

7147099

CLIP

25

7147106

SCREW

26

7147128

PIN

27

7147129

WASHER

28

7147160

PLATE

29

7147164

GROMMET

30

7147173

SCREW

31

7147176

SEAL

32

7147198

CABLE

33

15EM80

WASHER

34

17EM50

WASHER

35

27CM412

SCREW

36

4CM816

BOLT

37

7147195

SCREW

38

6910694

HOSE, BULK/METER bulk - sold per foot
