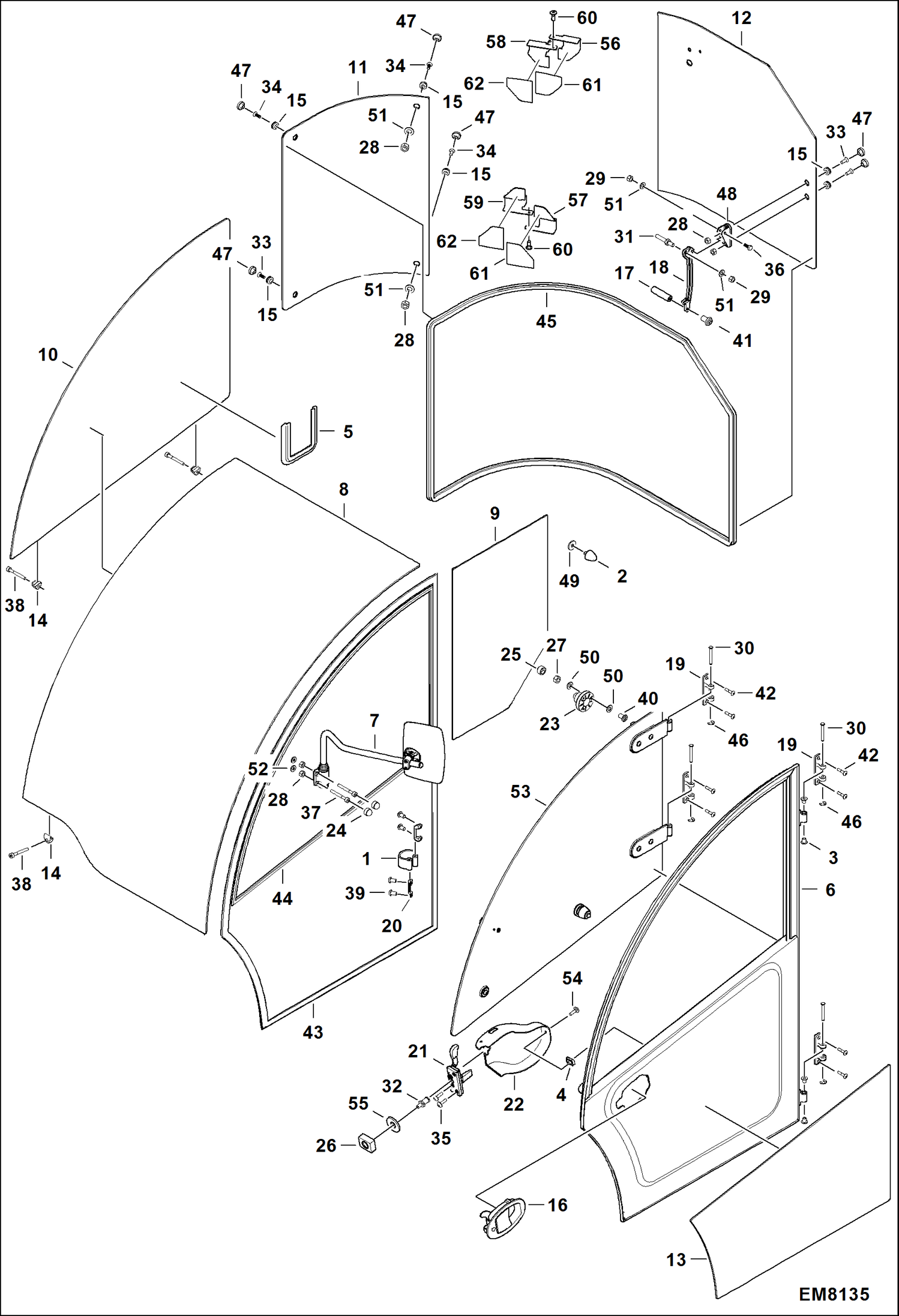

Запчасти Bobcat TL360 OPERATOR CAB (Exterior) MAIN FRAME

1

7147038

BELT

2

7146890

BUMPER

3

7146756

BUSHING

4

7147099

CLIP

5

7147191

HOLDER, DOCUMENT

6

7146736

DOOR W/steel lower door

6

7146823

DOOR W/glass lower door

7

7186160

MIRROR

8

7146748

WINDOW

9

7146749

WINDOW

10

7146788

WINDOW

11

WINDOW NLA - Order 7209576 - KIT, REAR WINDOW Was 7146789 - A

12

WINDOW NLA - Order 7209576 - KIT, REAR WINDOW Was 7146790 - A

13

7146826

WINDOW W/glass lower door

14

7146891

SUPPORT, WINDOW

15

7146863

GROMMET

16

7146934

HANDLE

17

7146869

HANDLE

18

7146866

GRIP, HANDLE

19

7146750

HINGE

20

7147037

HOOK

21

7147209

LATCH

22

7147194

LATCH, TRIMMING

23

7146794

LOCK

24

7147131

CAP, NUT

25

7186147

CAP, NUT

26

7147200

NUT

27

4DM5

NUT

28

4DM8

NUT

29

53DM8

NUT

30

7146760

PIN

31

7146895

PIN

32

7147170

PIN

33

23GM830

SCREW

34

23GM835

SCREW

35

7186214

SCREW

36

4CM840

BOLT

37

1GM825

BOLT

38

3GM616

SCREW

39

27CM512

SCREW

40

27CM530

SCREW

41

27CM820

BOLT

42

7147114

SCREW

43

7146742

SEAL

44

7146743

SEAL

45

7146861

SEAL

46

9JM70

RETAINER SHAFT

47

7146864

SPACER

48

7146865

SUPPORT

49

7146893

WASHER

50

18EM510

WASHER

51

18EM816

WASHER

52

15EM80

WASHER

53

7146816

WINDOW ASSY See Illustration OPERATOR CAB/ EM8383

54

7186146

SCREW

55

7186213

WASHER

56

7186198

HINGE

57

7186199

HINGE

58

7186201

HINGE

59

7186202

HINGE

60

7186204

RIVET

61

7186205

DECAL

62

7186207

DECAL
