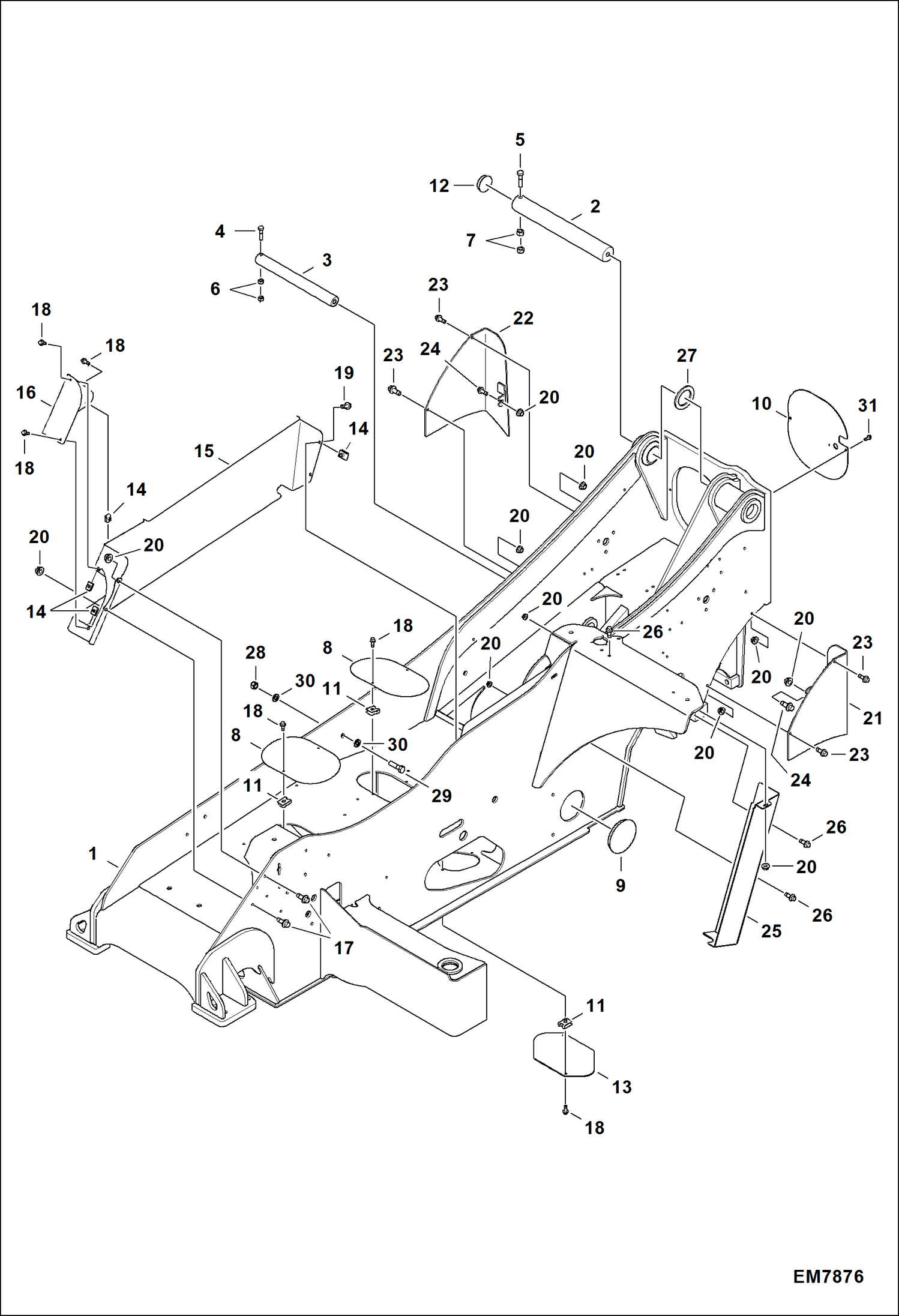

Запчасти Bobcat TL360 MAIN FRAME MAIN FRAME

1

7139437-GB

CHASSIS

2

7149051

PIN

3

7166256

PIN

4

1CM12120

SCREW

5

1CM16150

BOLT

6

4DM12

NUT HEX

7

4DM16

NUT

8

7170403-GB

COVER, TOP

9

7171277

COVER, PLASTIC

10

7235986-GB

COVER, REAR Was 7175365-GB - C

11

7183235

NUT

12

7186798

COVER, PLASTIC

13

7209910

COVER, BOTTOM Was 7188529 - A

14

6676169

NUT

15

7191917-GB

PLATE, COVER

16

7191918-GB

PLATE, COVER

17

29CM1025

BOLT

18

29CM820

SCREW

19

29CM825

BOLT

20

51DM10

NUT

21

7193573-O

COVER, LH Was 7193573-RM - B

22

7193571-O

COVER, RH

23

51DM10

NUT

24

29CM1035

SCREW

25

29CM1040

BOLT

26

7178445

COVER, PLATE

27

29CM1030

BOLT

28

51DM10

NUT

29

13EM7510

SHIM 1 mm

29

13EM7520

SHIM 2 mm

30

7202845

NUT

31

7202846

BOLT

32

18EM1632

WASHER, HARDENED
