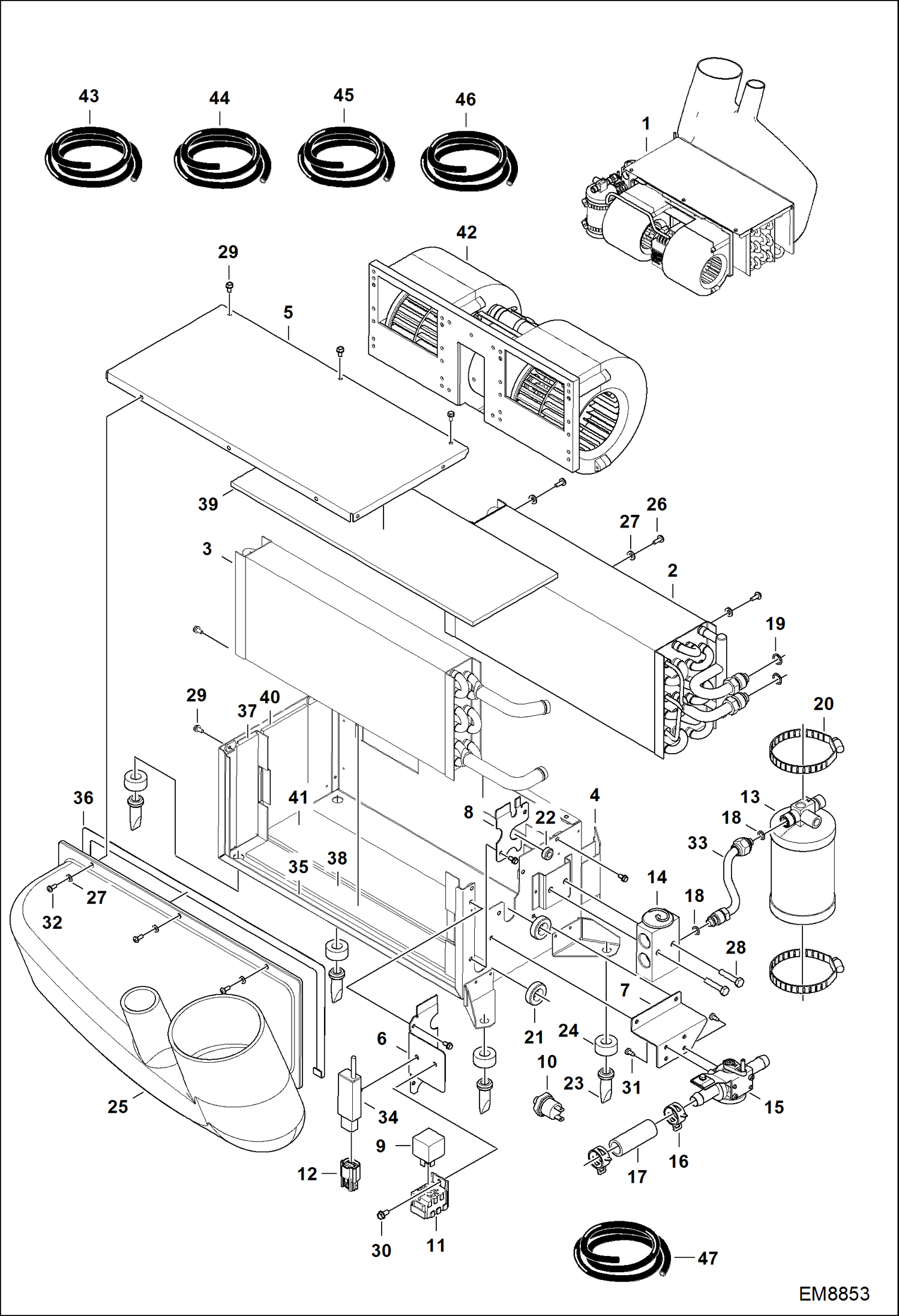

Запчасти Bobcat TL360 AIR CONDITIONING (Assembly) ACCESSORIES & OPTIONS

1

7147026

AIRCONDITIONING Ref. 2-42

2

7022151

COIL, EVAPORATOR

3

7022125

COIL, HEATER

4

7022126

CASING

5

7022127

COVER, TOP

6

7022128

PLATE, SIDE

7

7022129

BRACKET, VALVE

8

7022130

PLATE, SIDE

9

7022131

RELAY, 12V

10

7022152

SWITCH, PRESSURE

11

7022132

HARNESS

12

7022153

JUMPER

13

6674235

RECEIVER DRIER

14

6675534

BLOCK, VALVE A/C

15

7217229

HEATER CONTROL VALVE Was 7010686 - A

16

6676629

CLAMP

17

6684944

HEATER HOSE

18

7009976

O-RING Was 6675824 - B

19

7009977

O-RING Was 6675538 - A

20

7022154

CLAMP

21

6684946

GROMMET

22

6684947

GROMMET

23

7018001

VALVE, DRAIN

24

7015456

GASKET

25

7022135

COLLECTOR

26

7010401

SCREW

27

6693223

WASHER

28

6691534

SCREW

29

6677580

SCREW

30

6691532

SCREW Was 6677118 - B

31

7022136

BOLT

32

7022137

BOLT

33

7022155

TUBE, COPPER

34

7022156

THERMOSTAT MODULE

35

FOAM NLA - 4,8 mm x 12,7 mm x 406,4 mm (3/16'' x 1/2'' x 16'') - Order Ref. 43

36

FOAM NLA - 4,8 mm x 12,7 mm x 762 mm (3/16'' x 1/2'' x 30'') - Order Ref. 43

37

FOAM NLA - 4,76 mm x 38 mm x 150 mm (3/15'' x 1,5'' x 5,9'') - Order Ref. 44

38

FOAM NLA - 4,76 mm x 38 mm x 380 mm (3/16'' x 1/2'' x 15'') - Order Ref. 44

39

FOAM NLA - 6,35 mm x 146 mm x 414 mm (1/4'' x 5,75'' x 16,3'') - Order Ref. 45

40

FOAM NLA - 4,8 mm x 76,2 mm x 150 mm (3/16'' x 3'' x 5,9'') - Order Ref. 46

41

FOAM NLA - 4,8 mm x 76,2 mm x 412 mm (3/16'' x 3'' x 16,2'') - Order Ref. 46

42

7022124

BLOWER, 12V

43

6696953

FOAM bulk - sold per foot

44

7022138

INSULATION bulk - sold per foot

45

6675614

INSULATION bulk - sold per foot

46

7010406

INSULATION, HEATER bulk - sold per foot
