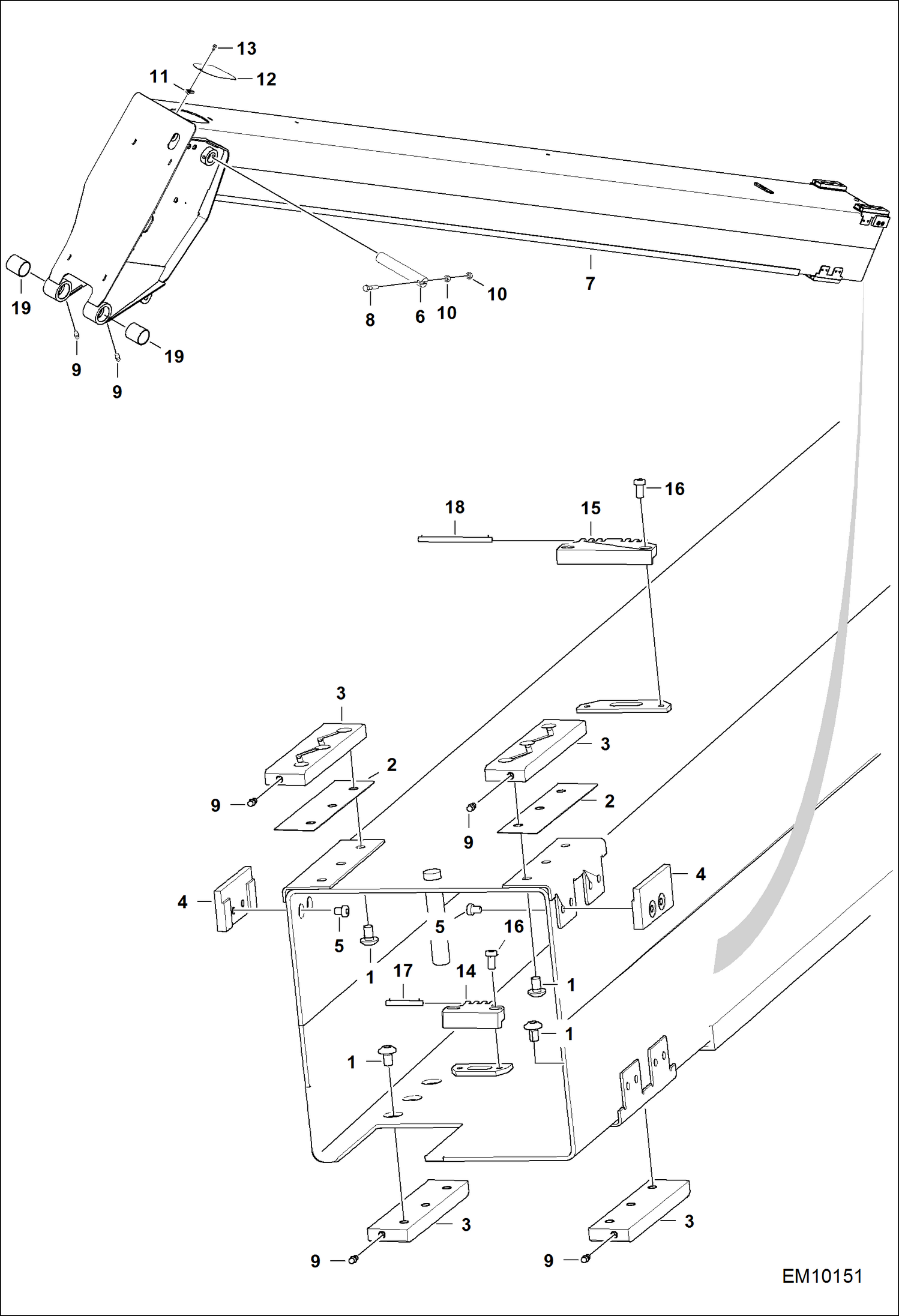

Запчасти Bobcat T40180 END BOOM MAIN FRAME

1

7184546

SCREW

2

7214452

SPACER 1 mm (0,04'')

2

7214453

SPACER 2 mm (0,08'')

2

7214454

SPACER 3 mm (0,11'')

3

7214455

PAD 17 mm (0,67'')

4

7214456

PAD 11 mm (0,43'')

4

7214457

PAD 12 mm (0,47'')

4

7214458

PAD 13 mm (0,51'')

4

7214459

PAD 14 mm (0,55'')

4

7214460

PAD 15 mm (0,59'')

5

7214543

SCREW

6

7219302

PIN

7

7219178

BOOM WA

8

1CM12120

SCREW

9

1HM8

FTG Grease Straight

10

4DM12

NUT HEX

11

6675722

NUT

12

7233572

COVER

13

29CM1020

BOLT

14

7213335

CHAIN ANCHOR 1

15

7213336

HOLDER, CHAIN

16

7214544

SCREW

17

7215018

PIN

18

7215019

PIN
