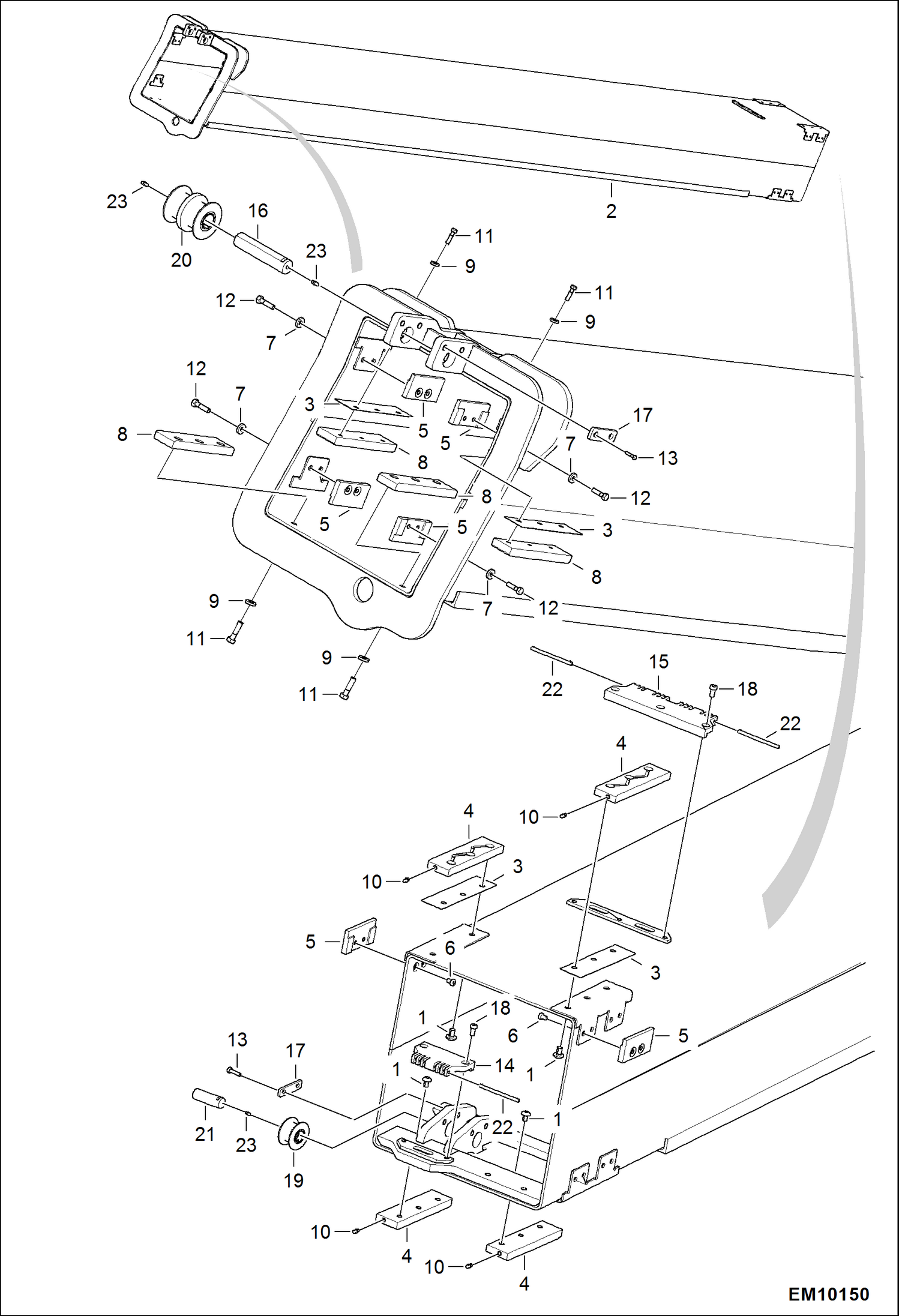

Запчасти Bobcat T40180 2ND INTERMEDIATE BOOM MAIN FRAME

1

7184546

SCREW

2

7213896

BOOM WA

3

7214452

SPACER 1 mm (0,04'')

3

7214453

SPACER 2 mm (0,08'')

3

7214454

SPACER 3 mm (0,11'')

4

7214455

PAD 17 mm (0,67'')

5

7214456

PAD 11 mm (0,43'')

5

7214457

PAD 12 mm (0,47'')

5

7214458

PAD 13 mm (0,51'')

5

7214459

PAD 14 mm (0,55'')

5

7214460

PAD 15 mm (0,59'')

6

7214543

SCREW

7

1EM80

WASHER

8

7215783

PAD 17 mm (0,70'')

9

1EM100

WASHER

10

1HM8

FTG Grease Straight

11

53CM1020

BOLT

12

53CM816

SCREW

13

1CM1016

SCREW

14

7213336

HOLDER, CHAIN

15

7213337

HOLDER, CHAIN

16

7213338

PIN

17

7213585

PLATE

18

7214544

SCREW

19

7215016

PULLEY

20

7215017

CHAIN PULLEY DOUBLE ASSY

21

7213340

PIN

22

7215019

PIN

23

1HM8

FTG Grease Straight
