Запчасти Bobcat T40180 1ST INTERMEDIATE BOOM MAIN FRAME

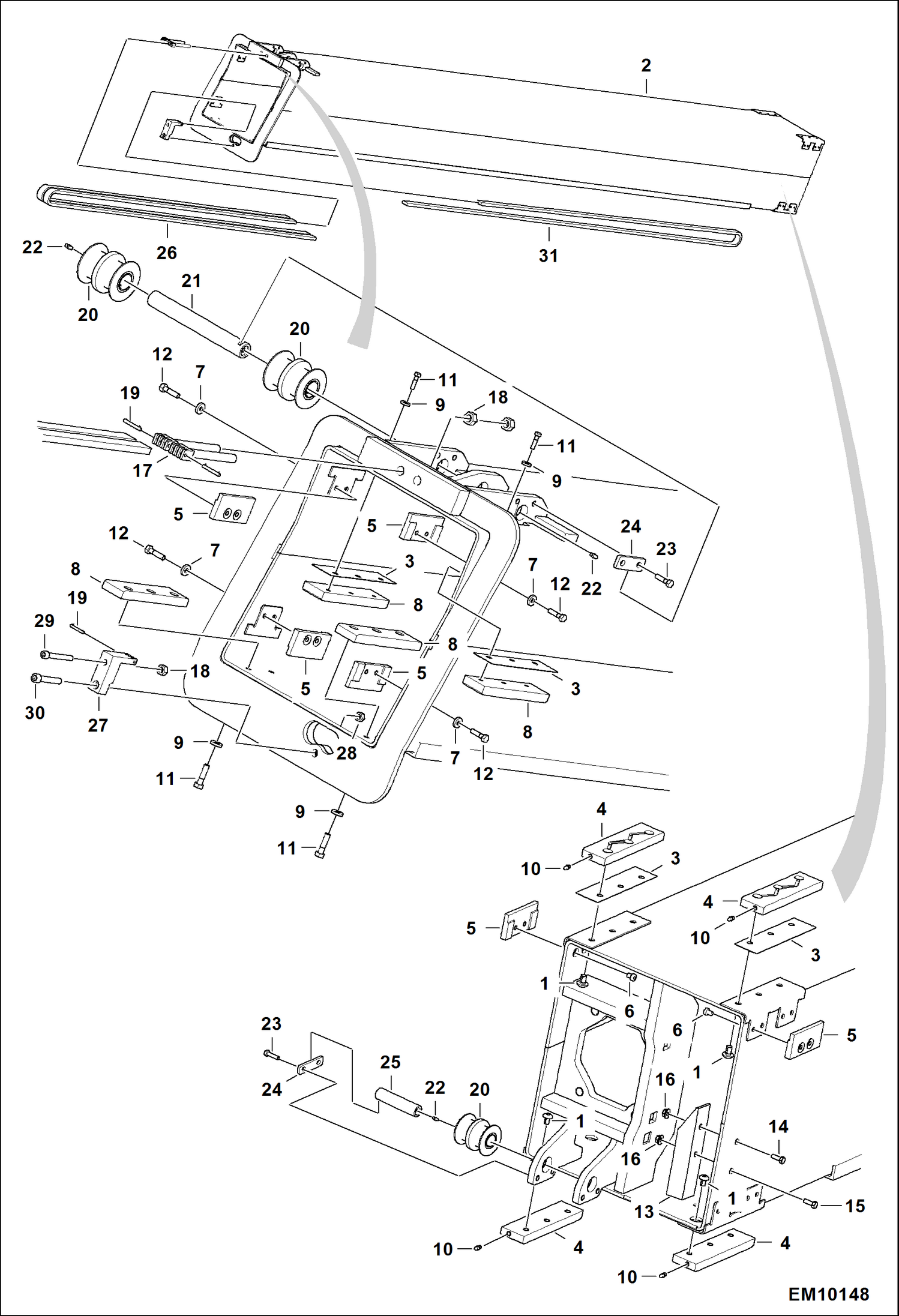

Схема запчастей Bobcat T40180 - 1ST INTERMEDIATE BOOM MAIN FRAME

Артикул

Название

Примечание

Количество

1

7184546

SCREW

2

7213602

BOOM WA

3

7214452

SPACER 1 mm (0,04'')

3

7214453

SPACER 2 mm (0,08'')

3

7214454

SPACER 3 mm (0,11'')

4

7214455

PAD 17 mm (0,67'')

5

7214456

PAD 11 mm (0,43'')

5

7214457

PAD 12 mm (0,47'')

5

7214458

PAD 13 mm (0,51'')

5

7214459

PAD 14 mm (0,55'')

5

7214460

PAD 15 mm (0,59'')

6

7214543

SCREW

7

7215170

WASHER

8

7215783

PAD 17 mm (0,70'')

9

1EM100

WASHER

10

1HM8

FTG Grease Straight

11

53CM1020

BOLT

12

53CM820

BOLT

13

7214578

PAD

14

1CM1030

BOLT

15

1CM1045

BOLT

16

43DM10

NUT

17

7213333

HOLDER, CHAIN

18

4DM16

NUT

19

7215018

PIN

20

7215017

CHAIN PULLEY DOUBLE ASSY

21

7213341

PIN

22

1HM8

FTG Grease Straight

23

1CM1016

SCREW

24

7213585

PLATE

25

7213339

PIN

26

7213329

CHAIN

27

7213334

HOLDER, CHAIN

28

4DM12

NUT HEX

29

7215487

SCREW

30

7215491

SCREW

31

7213330

CHAIN

Выбрано товаров: 37
