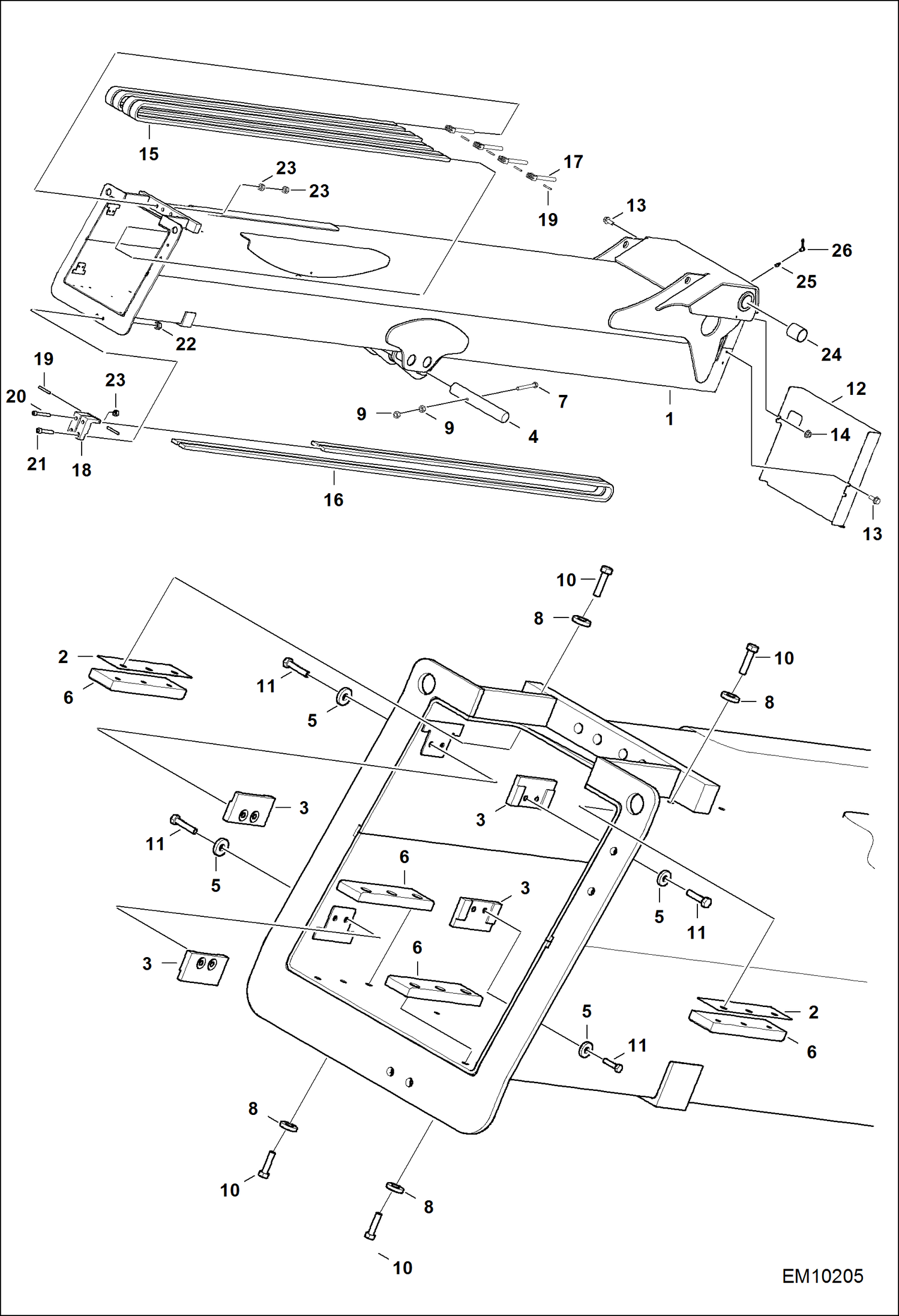

Запчасти Bobcat T40180 FIXED BOOM MAIN FRAME

1

7213345

BOOM W/A

2

7214452

SPACER 1 mm (0,04'')

2

7214453

SPACER 2 mm (0,08'')

2

7214454

SPACER 3 mm (0,11'')

3

7214456

PAD 11 mm (0,43'')

3

7214457

PAD 12 mm (0,47'')

3

7214458

PAD 13 mm (0,51'')

3

7214459

PAD 14 mm (0,55'')

3

7214460

PAD 15 mm (0,59'')

4

7214505

PIN

5

7215170

WASHER

6

7215783

PAD 17 mm (0,70'')

7

1CM12120

SCREW

8

1EM100

WASHER

9

4DM12

NUT HEX

10

53CM1020

BOLT

11

53CM820

BOLT

12

7213701

COVER, REAR

13

29CM1020

BOLT

14

43DM10

NUT

15

7213329

CHAIN

16

7213330

CHAIN

17

7213333

HOLDER, CHAIN

18

7213334

HOLDER, CHAIN

19

7215018

PIN

20

7215487

SCREW

21

7215491

SCREW

22

4DM12

NUT HEX

23

4DM16

NUT
