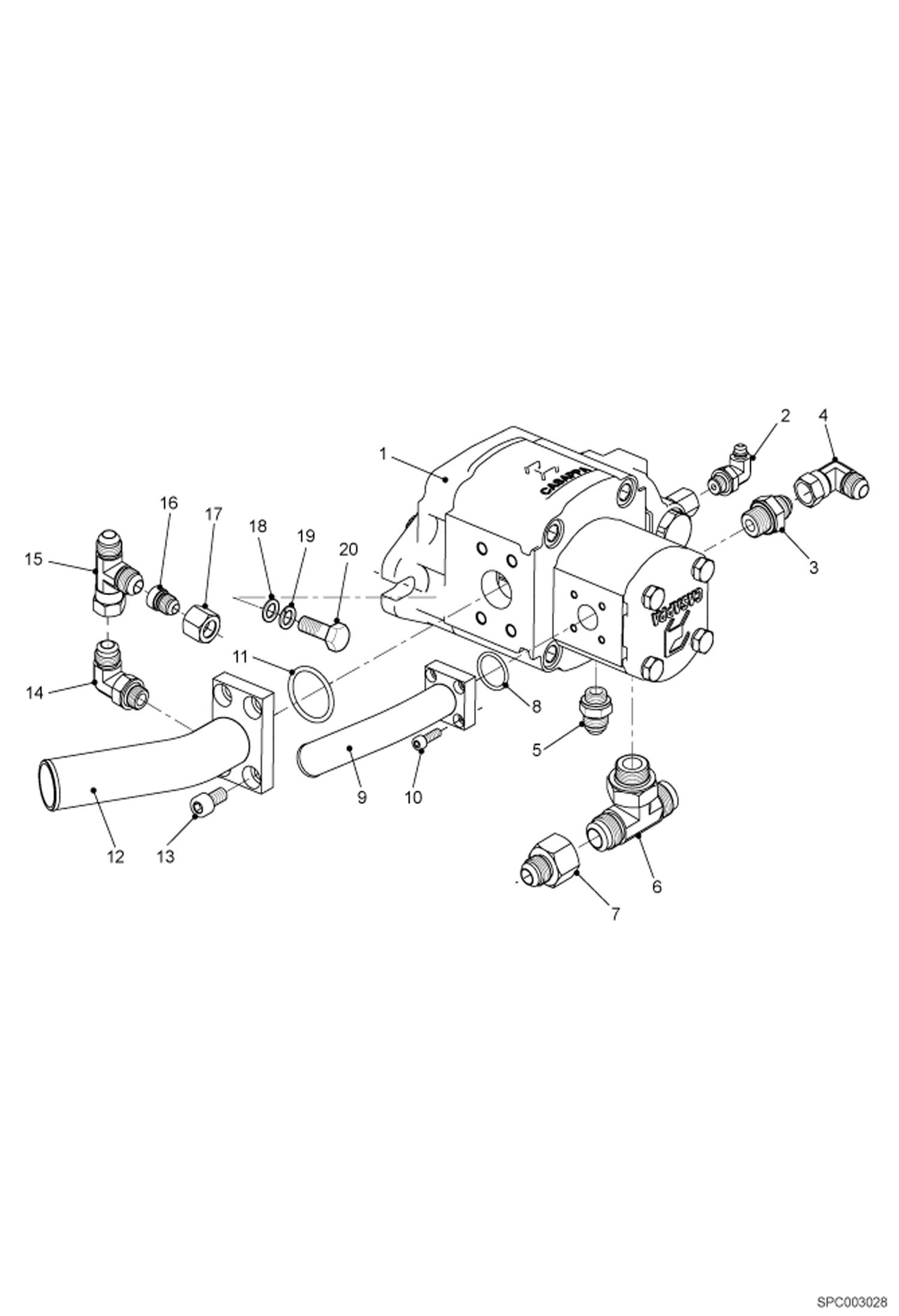

Запчасти Bobcat T40170 HYDRAULIC PUMP INSTALLATION HYDRAULIC SYSTEM

1

6909447

PUMP, HYD ASSY See Illustration HYDRAULIC PUMP ASSY/ SPC003029 Was 6909808

2

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

3

022375-04U

UNION

4

008372-01B

ELBOW PIECE

5

100375-38S

UNION

6

80732.1

T- union t-union

7

014375-99H

REDUCER

8

93049.5

O-ring

9

6908091

FLANGE D20 T25

10

10167.5

Screw

11

92637.8

O-ring

12

6911767

FLANGE SAE 1''

13

10662.5

Screw

14

010370-94B

ELBOW PIECE

15

008372-02C

UNION

16

100375-06H

ADAPTER

17

014345-12C

NUT , ADAPTER

18

000350-04X

WASHER M12 14X27 E=2,5

19

89517.7

Washer

20

26160.2

Screw
