Запчасти Bobcat T40170 STEERING - FRONT AXLE DRIVE SYSTEM

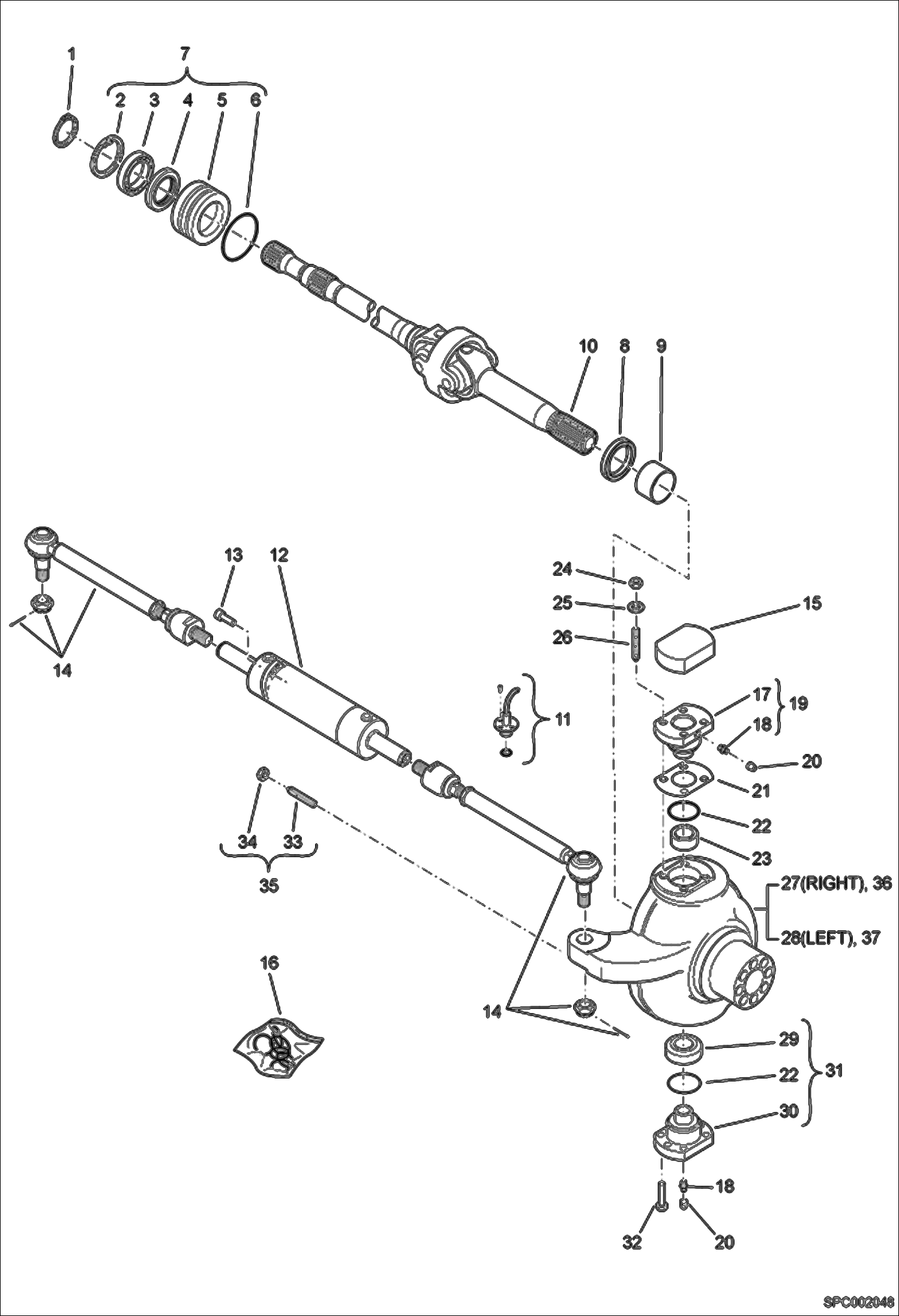

Схема запчастей Bobcat T40170 - STEERING - FRONT AXLE DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912808

SNAP RING

2

7JM90

SNAPRING Was 6912656 - A

3

6912871

BEARING

4

6912848

SEAL

5

BUSHING, REDUCTION NAP - Order Ref. 7

6

6912853

O'RING

7

6912825

BUSH W/Ref. 2-6

8

6912847

SEAL

9

6912826

BUSH

10

6912843

Joint

11

6912818

Optical sensor

12

6912946

RAM CYLINDER Was 6912887 - A

13

6912890

SCREW

14

7011174

TIE ROD Was 6912881 - A

15

6912816

COVER

16

6912977

KIT, SEAL only for assy #6914474

17

PIN, PIVOT NAP - Order Ref. 19

18

6912700

LUBRICATOR

19

6912941

PIVOT W/Ref. 17-18

20

6912629

PLUG

21

6912802

SHIM 0,15MM 0,15 mm

21

6912803

SHIM 0,20MM 0,20 mm

21

6912804

SHIM 0,50MM 0,50 mm

22

6912845

SEAL

23

6921515

BUSHING Was 6912680 - A

24

6912684

NUT

25

6912736

WASHER

26

7010888

STUD Was 6912696 - B

27

6912921

STEERING BOX RH

28

6912922

STEERING BOX LH

29

6912778

CONNECTION

30

PIN, PIVOT NAP - Order Ref. 31

31

6912859

PIVOT W/Ref. 22 & 29-30

32

6912893

SCREW

33

6912773

SCREW

34

6912685

NUT

35

6912774

SCREW Ref. 33-34

36

6912785

Steering case LH - Ref. 9 & 27

37

6912784

Diferential pinion W/Ref. 9 & 28 Was 7009504 - B,D

Выбрано товаров: 39
