Запчасти Bobcat T40170 DIFFERENTIAL - FRONT AXLE DRIVE SYSTEM

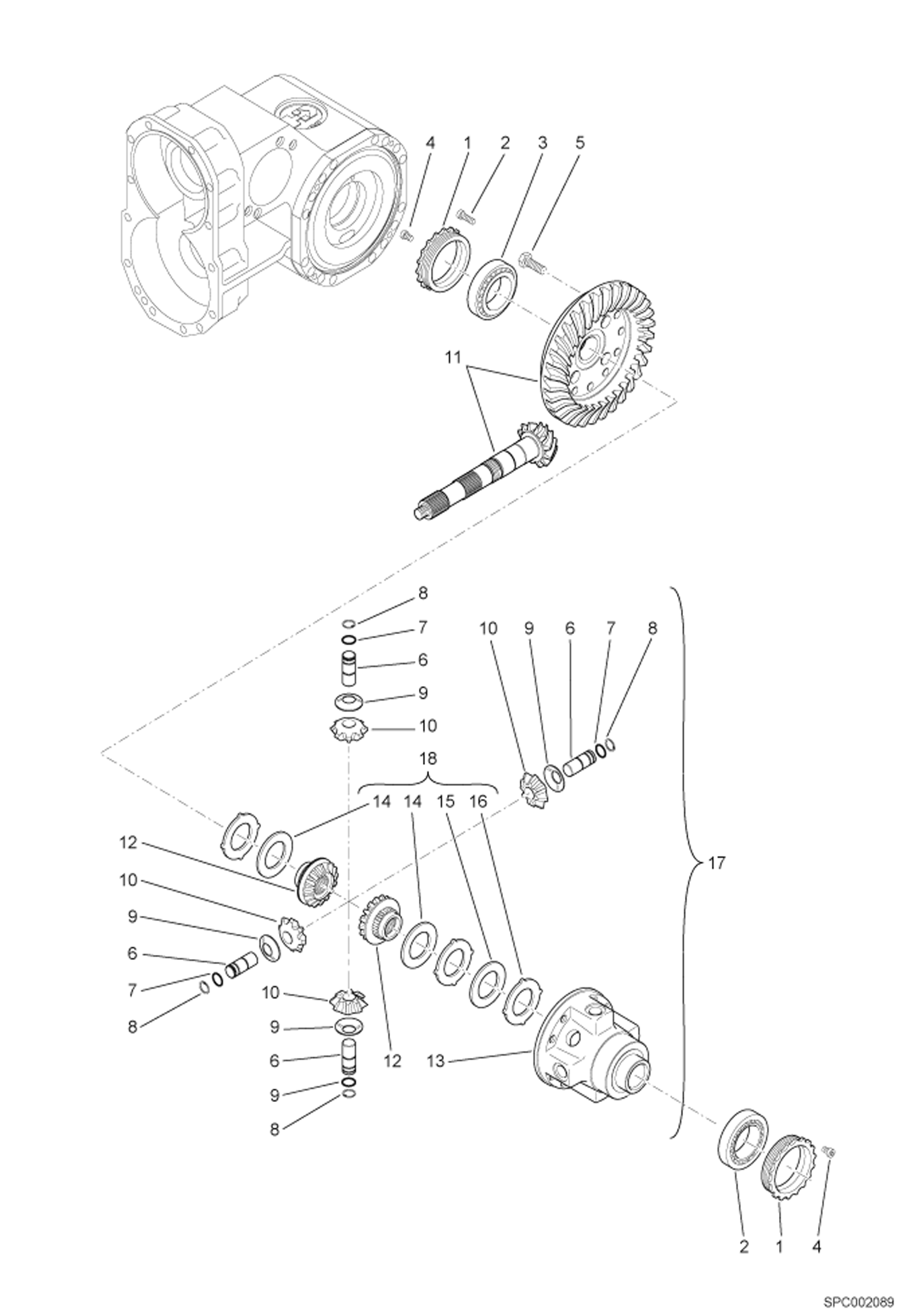

Схема запчастей Bobcat T40170 - DIFFERENTIAL - FRONT AXLE DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912832

NUT

2

6912889

SCREW

3

6912872

BEARING

4

6912891

SCREW

5

6912771

SCREW

6

7022723

SPINDLE

7

6912809

SNAP RING

8

6912810

SNAP RING

9

6912870

WASHER

10

7010892

PINION, DIFFERENTIAL Was 6912874 - A

11

6912811

BEVEL GEAR

12

6912862

PLANETARY only for assy #6914474

12

6912861

PLANETARY only for assy #6934695

13

6912806

DIFFERENTIAL CASE only for assy #6914474

13

6912805

DIFFERENTIAL CASE only for assy #6934695

14

DISC NAP - Order Ref. 18 - only for assy #6914474

14

6912869

WASHER only for assy #6934695

15

DISC NAP - Order Ref. 18

16

DISC NAP - Order Ref. 18

17

6912820

DIFFERENTIAL Ref. 6-10 & 12-16 - only for assy #6914474

18

6912821

Disc Ref. 14-16

Выбрано товаров: 21
