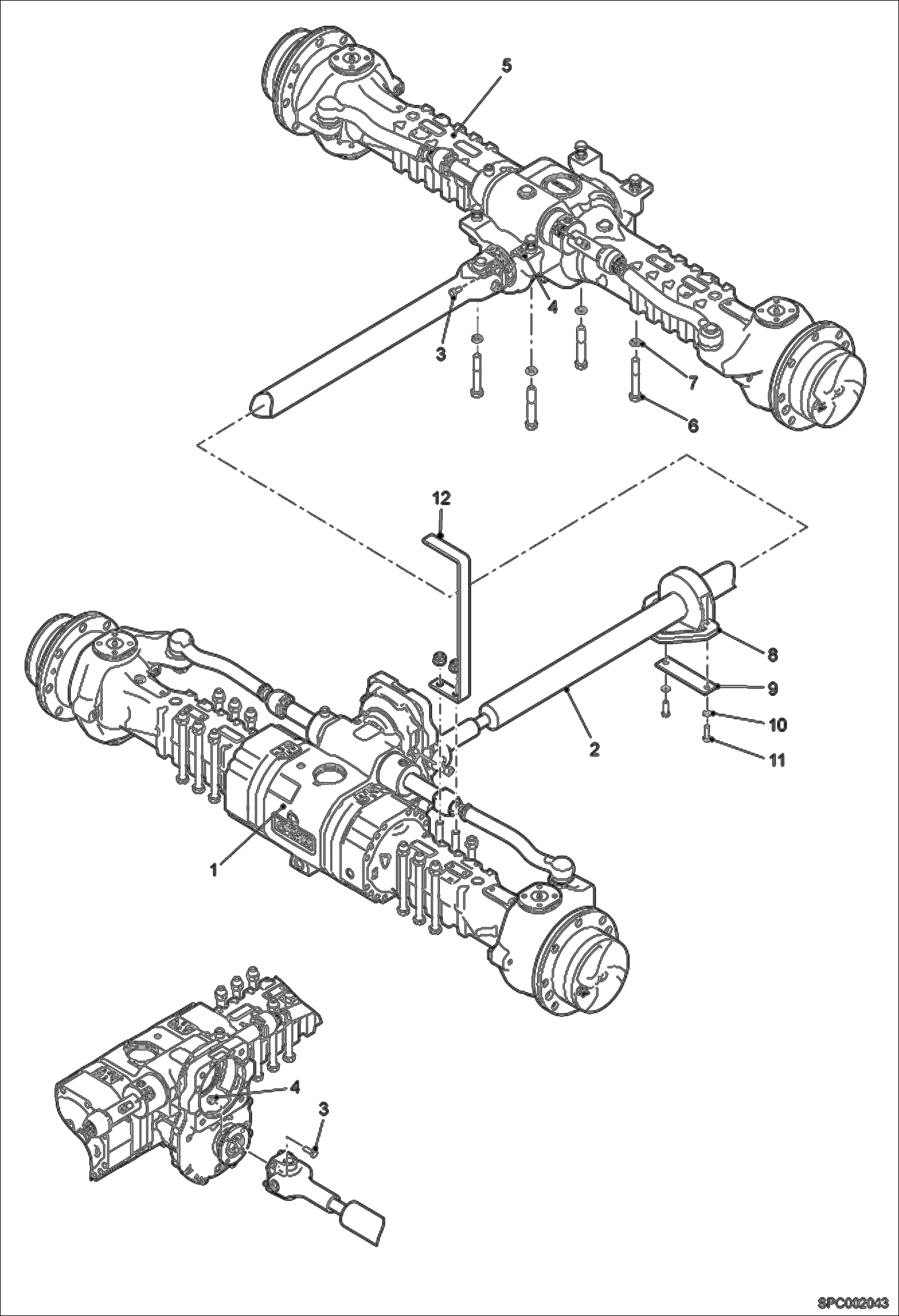

Запчасти Bobcat T40170 AXLE INSTALLATION DRIVE SYSTEM

1

7214985

AXLE, FRONT Was 6934695 - A

2

7215052

SHAFT, DRIVE See Illustration DRIVE SHAFT/ SPC002051 Was 6915283 - A

3

100338-15V

SCREW

4

100345-11C

NUT

5

7214984

AXLE, REAR Was 6934451 - A

6

6915069

SCREW HM 20-120/46 CL10,9 ZJ8

7

15323.9

Washer

8

6915290

FLANGE

9

7215050

SUPPORT Was 6916071 - B

10

01699.8

Washer

11

01614.7

Screw

12

6925407

HORIZONTAL INDICATOR
