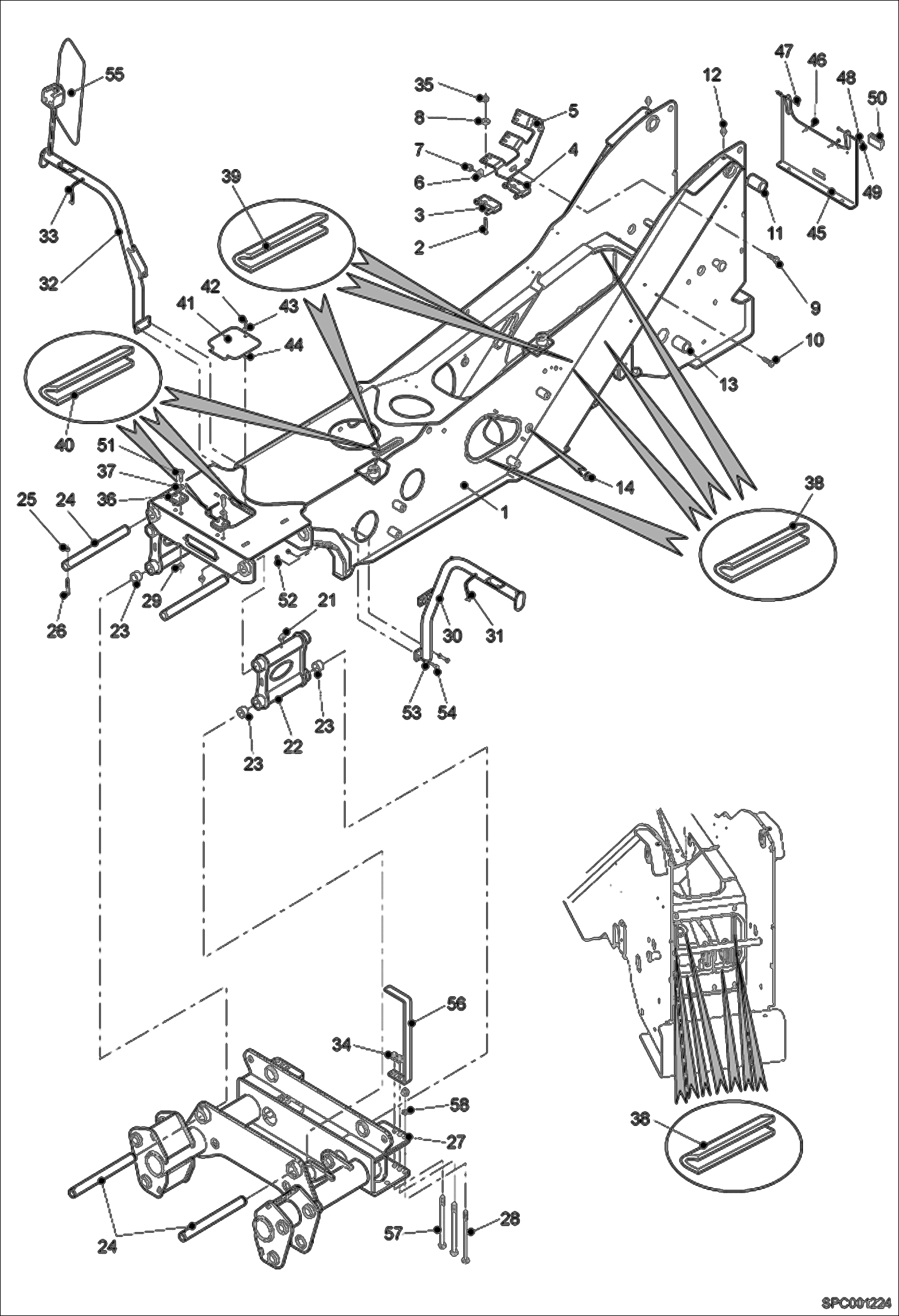

Запчасти Bobcat T40170 FRAME MAIN FRAME

1

6924053

CHASSIS

2

53100.4

Screw

3

92972.9

Switch Man platform only

3

6918632

SWTICH W/man platform

4

6911738

SWITCH

5

92968.7

Plate

6

01699.8

Washer

7

000345-96E

NUT

8

61378.6

Washer

9

01614.7

Screw

10

96541.8

Rivet

11

7213359

BEARING, SWING Was 77380.4 - A

12

01775.6

Grease Nipple

13

90281.7

Bush

14

79288.7

Rubber mounting

21

01782.2

Grease nipple

22

84106.4

Connecting rod

23

7213158

LINK, BEARING Was 77261.6 - A

24

7213171

PIN Was 84176.7 - A

25

100345-09A

NUT

26

7CM10100

SCREW HEX Was 65397.2 - A

27

6915086

Front support

28

1CM20220

SCREW Was 25237.9 - A

29

100345-09A

NUT

30

6915265

L.H. LIGHT SUPPORT

31

79539.3

Front Light Wire Harness, LH LH

32

6915264

R.H. LIGHT SUPPORT

33

96587.1

Front Light Wire Harness, RH

34

6923941

NUT Was 100345-20M

35

100345-04U

NUT

36

7214217

STOP, BOOM Was 6917004 - A

37

01698.0

Washer

38

95464.4

Seal 3,9 m - Sold per meter

39

80919.4

Seal 1,4 m - Sold per meter

40

95465.1

Seal 1,4 m - Sold per meter

41

7215006

COVER, FRONT Was 6908505 - A

42

6914053

Screw

43

01718.6

Washer

44

6914051

Nut

45

6909735

Plate

46

57702.3

Plug

47

01607.1

Screw

48

000350-03W

WASHER

49

100345-09A

NUT

50

HANDLE NLA Was 90327.8 - A

51

2GM1030

SCREW Was 01640.2 - A

52

100345-09A

NUT

53

01698.0

Washer

54

01607.1

Screw

55

100432-51C

MIRROR, SIDE REAR Was 6922760 - A

56

6925407

HORIZONTAL INDICATOR Was 6917958

57

76680.8

SCREW Was 6923940

58

000350-08C

WASHER
