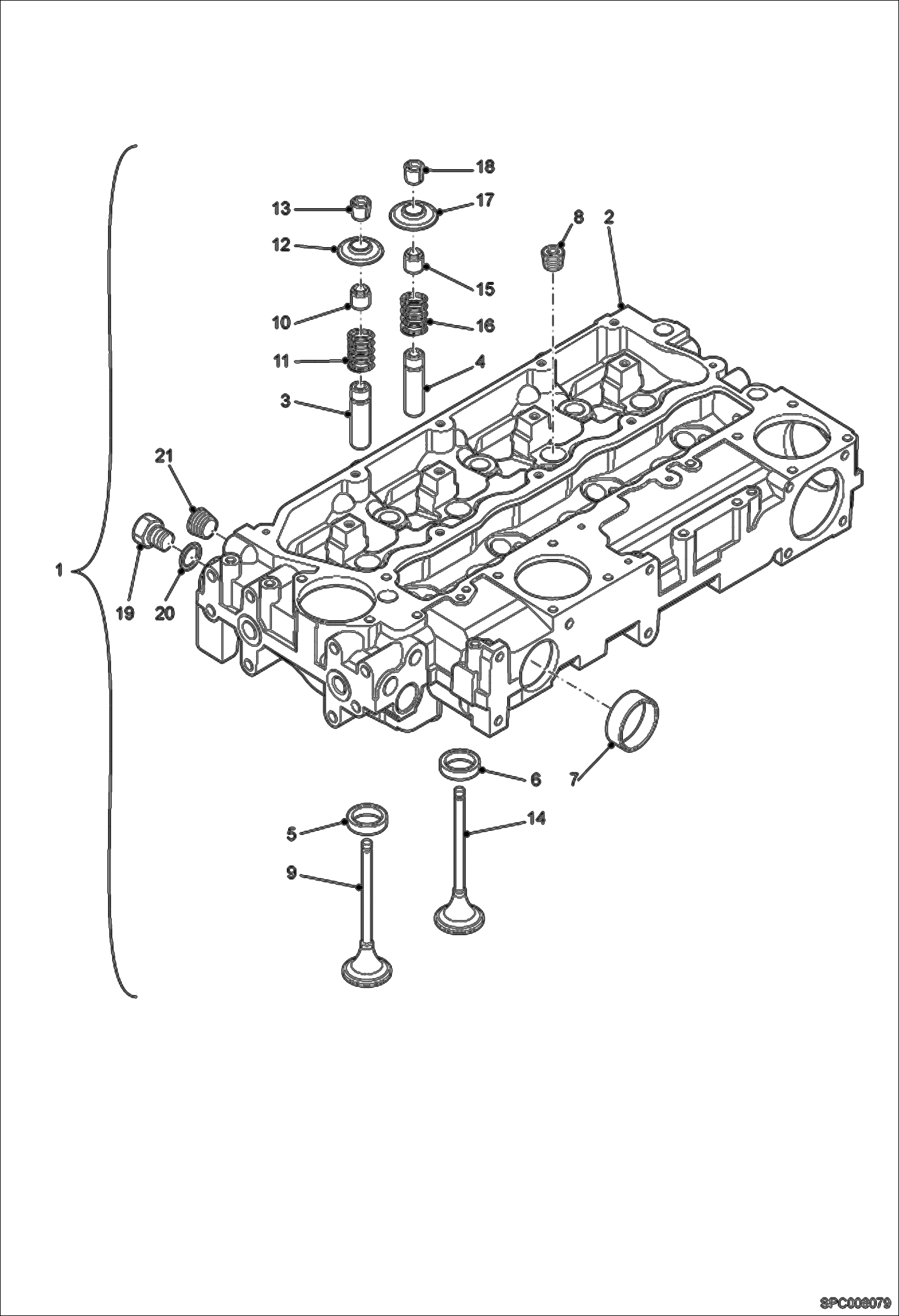

Запчасти Bobcat T40170 CYLINDER HEAD ASSY POWER UNIT

1

7010583

CYLINDER HEAD ASSY W/Ref. 2-21

2

CYLINDER HEAD NAP - Order Ref. 1

3

6924947

VALVE GUIDE

4

6924947

VALVE GUIDE

5

VALVE SEAT INSERT NAP - Order Ref. 1

6

VALVE SEAT INSERT NAP - Order Ref. 1

7

7022439

PLUG Was 40968.0

8

7017219

PLUG Was 6911858 - A

9

6924908

INTAKE VALVE

10

6924939

SEAL - VALVE STEM green

11

6924948

VALVE SPRING

12

6924337

CAP

13

6924946

VALVE COLLET

14

6924346

EXHAUST VALVE

15

6924938

SEAL - VALVE STEM brown

16

6924948

VALVE SPRING

17

6924337

CAP

18

6924946

VALVE COLLET

19

6911939

PLUG Was 7017237 - A

20

6911881

O RING Was 7017238 - A

21

33219.7

Plug
