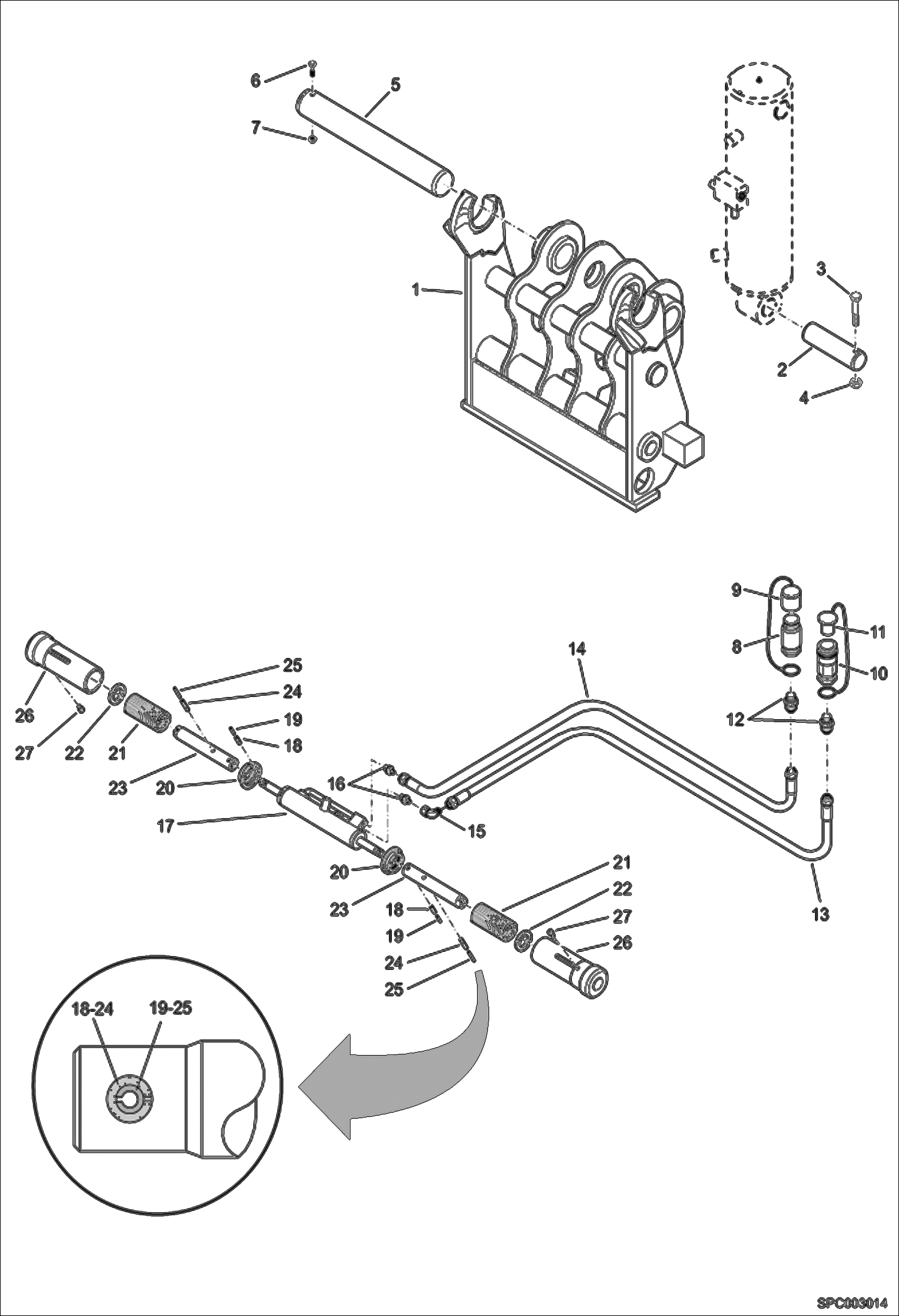

Запчасти Bobcat T40170 QUICK ATTACH INSTALLATION (NARROW) HYDRAULIC SYSTEM

1

6911242

Carriage

2

7214127

PIN Was 80400.5 - A

3

7CM10100

SCREW HEX Was 65397.2 - A

4

100345-09A

NUT

5

7CM10100

SCREW HEX Was 77421.6 - A

6

82459.9

Screw

7

100345-09A

NUT

8

7225159

COUPLER, HYD Was 95994.0 - A

9

7225160

CAP, COUPLER Was 96513.7 - A

10

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

11

7225161

CAP, COUPLER Was 96514.5 - A

12

022375-27U

UNION

13

77494.3

Hose

14

85480.2

Hose

15

72294.2

Elbow union

16

022375-28V

UNION

17

6916225

RAM, LOCKING See Illustration QUICK ATTACH CYLINDER/ SPC003178

18

1JM8030

PIN, HEAVY ROLL Was 01744.2 - A

19

1JM5028

PIN Was 01735.0

20

1JM5028

PIN Was 79365.3 - A

21

7224474

SPRING Was 92398.7 - A

22

92588.3

Washer

23

7224468

PIN, LOCK Was 92218.7 - A

24

1JM8045

PIN, HEAVY ROLL Was 01745.9 - A

25

1JM5045

PIN, HEAVY ROLL Was 85481.0 - A

26

7224469

SUPPORT, TUBE Was 92220.3 - A

27

6GM816

SCREW Was 29649.1 - A
