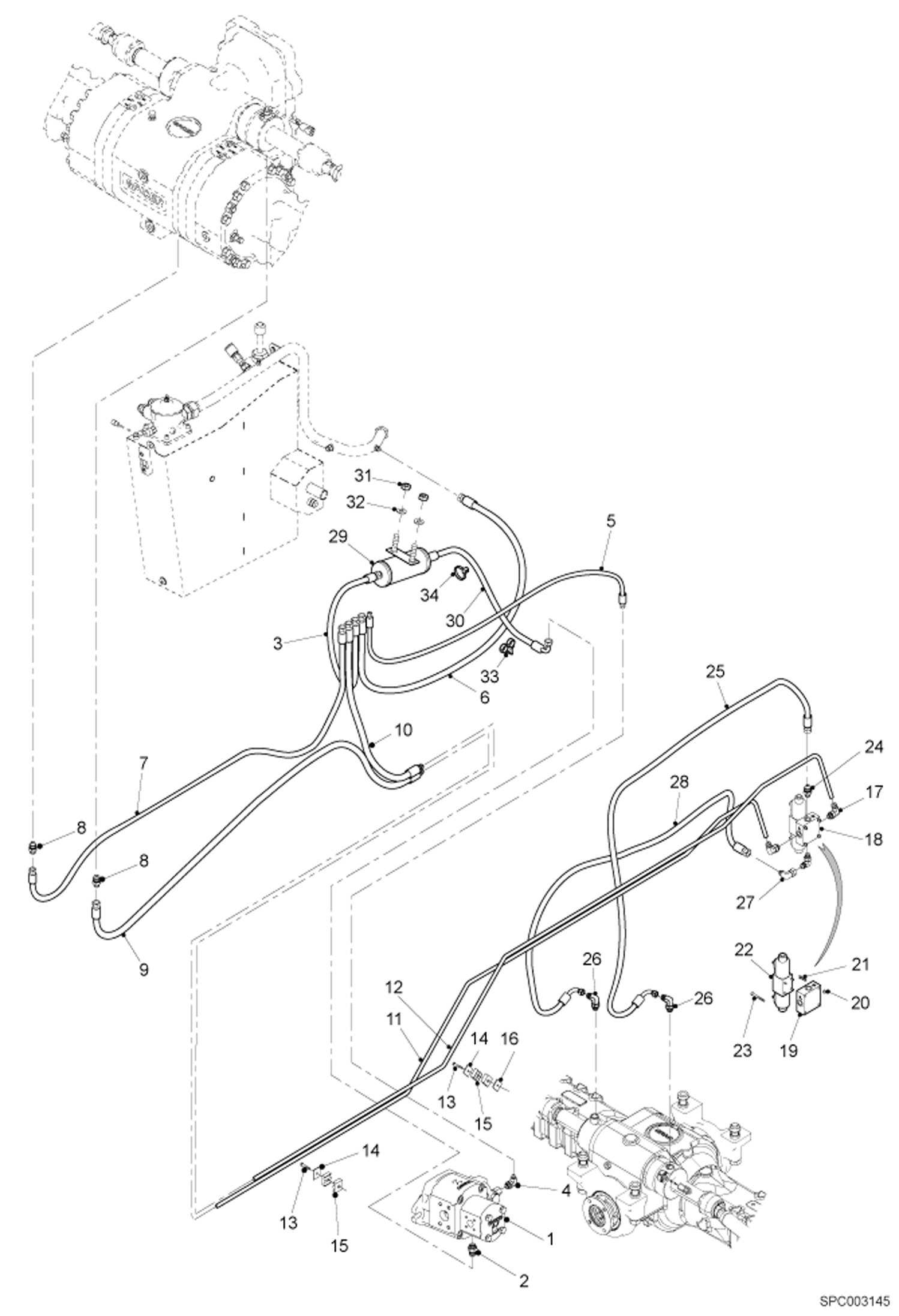

Запчасти Bobcat T40170 STEERING HOSES & FITTINGS (W/Damper) HYDRAULIC SYSTEM

1

6909447

PUMP, HYD ASSY See Illustration HYDRAULIC PUMP ASSY/ SPC003029

2

100375-38S

UNION

3

79147.5

Hose

3

6936156

HOSE, HYD

4

008372-01B

ELBOW PIECE

5

79148.3

Hose

6

79147.5

Hose

7

96763.8

Hose

8

100375-56M

UNION

9

6916603

Hose

10

88723.2

Hose

11

90237.9

Hydraulic pipe

12

90238.7

Hydraulic pipe

13

100338-23F

SCREW

14

100212-53R

COVER PLATE

15

6935678

CLAMP, DOUBLE Was 100369-18T - B

16

100281-55T

Plate

17

010370-94B

ELBOW PIECE

18

98347.8

Steering block W/Ref. 19 & 22

19

98348.6

Support

20

100345-06W

NUT

21

01626.1

Screw

22

98349.4

Steering selector valve W/Ref. 22-23

23

01626.1

Screw

24

100375-38S

UNION

25

72281.9

Hose

26

7228465

FITTING, HYD ELBOW Was 100370-06P - A

27

008372-01B

ELBOW PIECE

28

72281.9

Hose

29

6933831

MUFFLER ASSY W/Ref. 31 Was 6914316 - A

30

74467.2

Hose

30

6936155

HOSE, HYD

31

01681.6

Nut Was 01597.4 - B

32

01697.2

Washer

33

6678668

STRAP, DUAL TIE

34

6678669

STRAP
