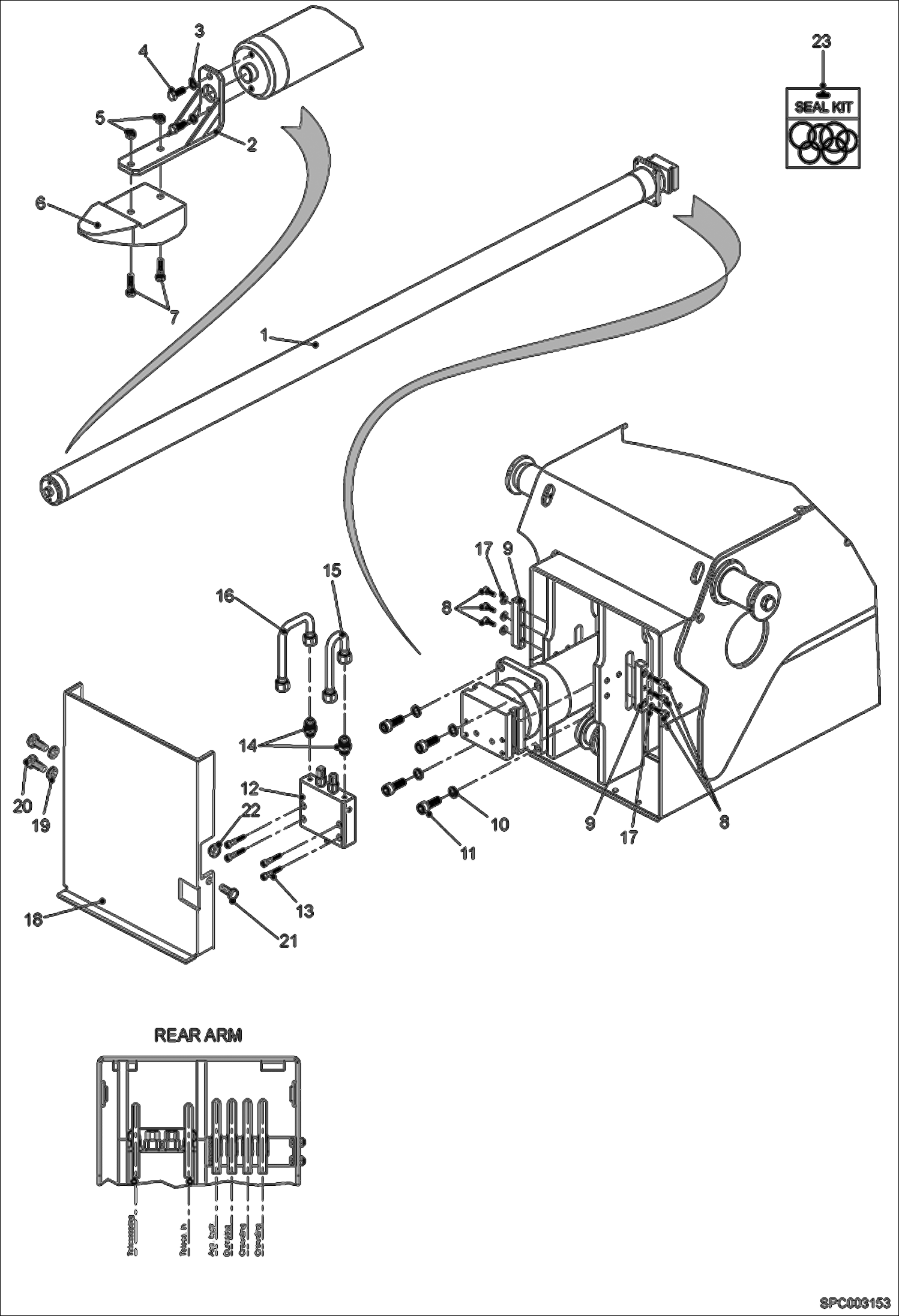

Запчасти Bobcat T40170 TELESCOPE CYLINDER INSTALLATION (S/N A8GB11001 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TELESCOPE CYLINDER/ SPC003021 NLA Was 6911233 - A

1

7212293

CYLINDER, EXTENSION See Illustration TELESCOPE CYLINDER/ EM5399 Order kit 6925370 when replacing the old cylinder with new model Was 6927315 - A

2

7212607

HOLDER, W/A Was 95596.3 - A

3

11689.7

Washer

4

01613.9

Screw

5

000345-96E

NUT

6

95549.2

Shoe

7

01528.9

Screw

8

100329-07J

SCREW

9

KEY See Illustration TELESCOPE CYLINDER KEY KIT/ EM6325 NLA - Order 6927622 telescope cylinder key kit Was 6911235 - B

10

13778.6

Washer

11

6GM1645

SCREW Was 97851.0 - A

12

95318.2

Valve

13

88271.2

Screw

14

014375-30H

UNION

15

7212604

TUBELINE, HYD Was 85963.7 - A

16

7212276

TUBELINE, HYD Was 85962.9 - A

17

7225260

WASHER Was 89516.9 - A

18

6911147

Plate

19

7225260

WASHER Was 89516.9 - A

20

01604.8

Screw

21

01605.5

Screw

22

100345-09A

NUT

23

6921506

KIT, SEAL Use W/Ref. 12
